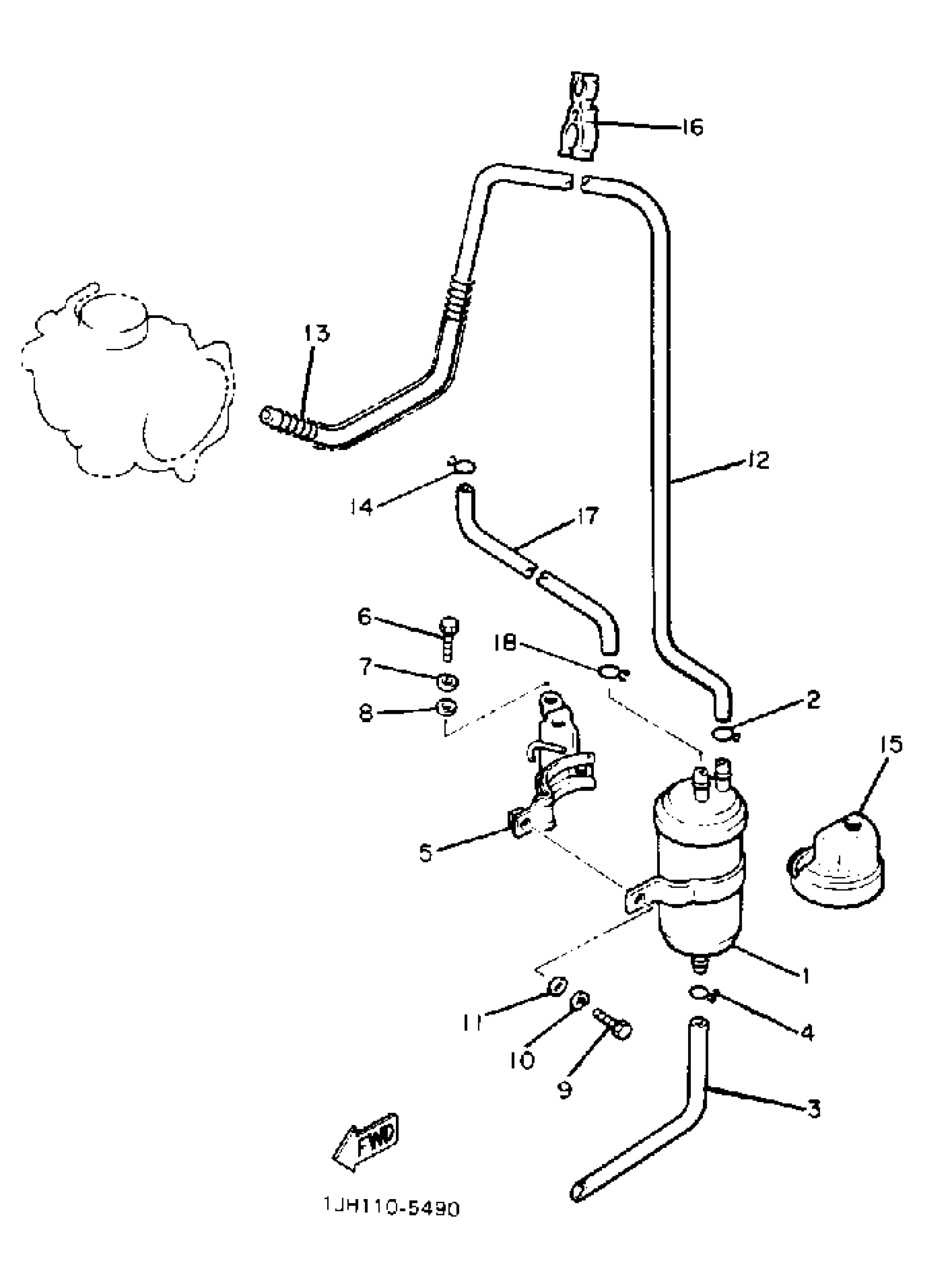

Yamaha VMX12SC (V-MAX 1200 CA) 1UR 1986 CANISTER FOR CALIFORNIA MODELS ONLY Diagram

#

Description
Price

1

CANISTER ASSEMBLY

(1JH-24170-00-00)

Unavailable

2

CLIP, SCISSOR

(90467-09103-00)

Unavailable

3

PIPE, SUCTION 1

(1JH-24335-00-00)

Unavailable

4

CLIP(1JH)

90467-11106-00

$3.76

5

CANISTER HOLDER

(1JH-24190-00-00)

Unavailable

6

BOLT, HEXAGON

97017-06016-00

$8.49

7

WASHER, SPRING

92907-06100-00

$4.25

8

WASHER(6TA)

92907-06600-00

$2.72

9

BOLT, HEXAGON

97017-06016-00

$8.49

10

WASHER, SPRING

92907-06100-00

$4.25

11

WASHER(6TA)

92907-06600-00

$2.72

12

HOSE (L730)

90445-105K7-00

Unavailable

13

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

14

CLIP, SCISSOR

(90467-09103-00)

Unavailable

15

COVER, CANISTER

1JH-2419E-00-00

Unavailable

16

CLAMP

90464-20070-00

Unavailable

17

PIPE,6

1JH-24316-02-00

Unavailable

18

CLIP, SCISSOR

(90467-09103-00)

Unavailable
