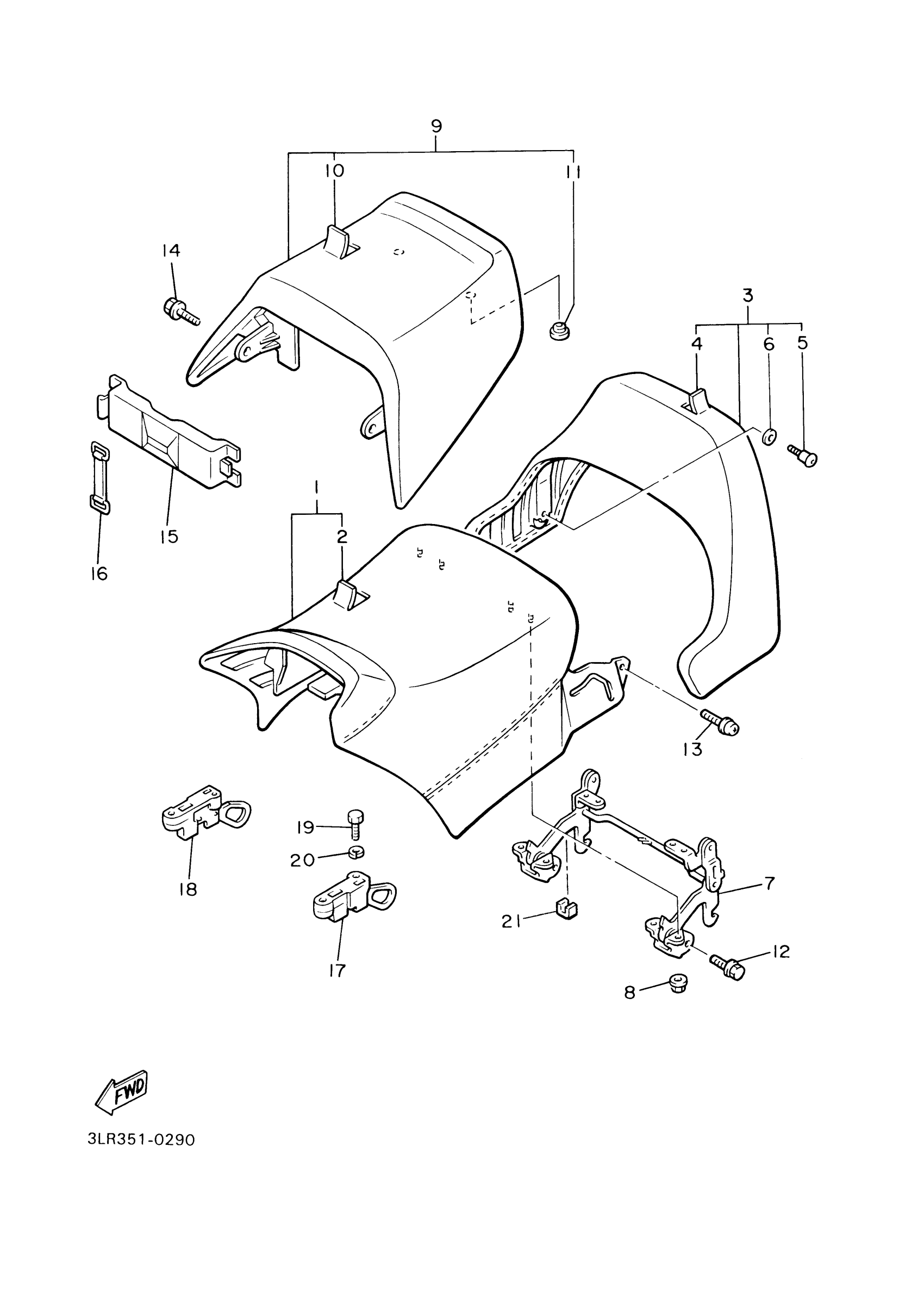

Yamaha VMX12RC (V-MAX CA) 5GKD 2003 SEAT Diagram

#

Description
Price

1

SEAT COMP.

5GK-24771-00-00

Unavailable

2

. SEAT COVER COMP

5GK-2470F-00-00

Unavailable

3

SEAT BACK ASSY

5GK-24790-00-00

Unavailable

4

. SEAT COVER COMP

5GK-2470F-10-00

Unavailable

5

PIN, GUIDE

1FK-2476F-00-00

$9.99

6

WASHER

1FK-24736-00-00

$8.99

7

HINGE ASS'Y

1FK-24772-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

TANDEM SEAT ASSY

5GK-24750-00-00

Unavailable

10

SEAT COVER COMP.

5GK-2470F-20-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.43

12

BOLT, FLANGE

95817-06012-00

$1.43

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

14

BOLT, HEXAGON

97017-06016-00

$8.49

15

LID 1

1FK-2473T-00-00

Unavailable

16

BAND, TOOL

5H9-21376-00-00

Unavailable

17

SEAT LEVER ASSY

1FK-24760-00-00

Unavailable

18

SEAT LOCK ASSY

1FK-24780-00-00

Unavailable

19

BOLT, HEXAGON

97017-06012-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable

21

DAMPER, SEAT

3UF-24737-00-00

Unavailable
