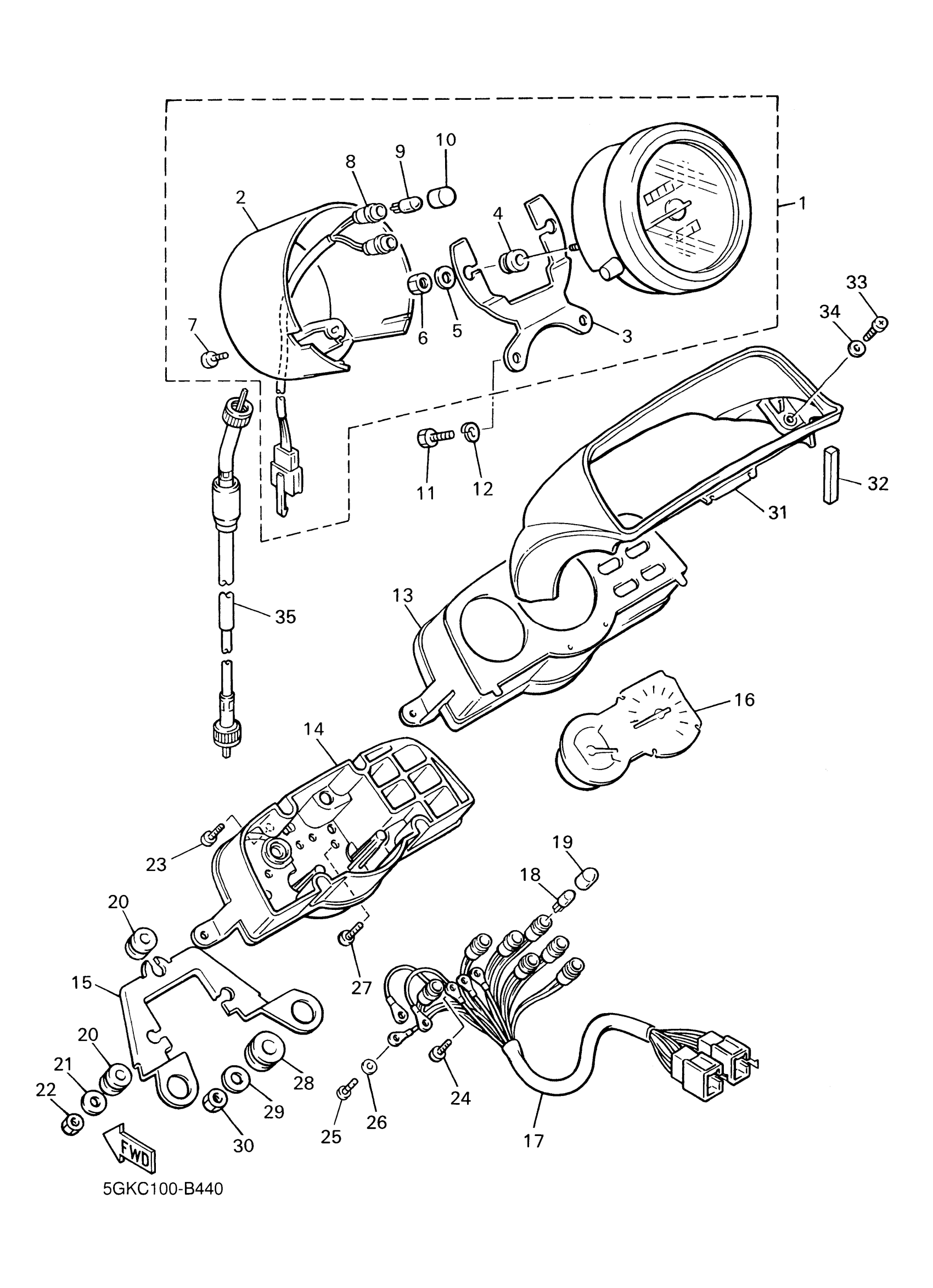

Yamaha VMX12RC (V-MAX CA) 5GKD 2003 METER Diagram
#
1
SPEEDOMETER ASSY (MPH)
1FK-83570-B0-00
Unavailable
2
. COVER, SPEEDOMETER
1GR-83507-01-00
Unavailable
3
BRACKET, METER
1FK-83519-00-00
Unavailable
4
DAMPER
1FG-83523-00-00
Unavailable
5
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
7
SCREW, TAPPING(71E)
90164-04023-00
Unavailable
8
. SOCKET CORD ASSY
1FK-83509-00-00
Unavailable
13
CASE, UPPER
3JP-8353G-10-00
Unavailable
14
CASE, INNER
1FK-8353H-00-00
Unavailable
15
BRACKET, TACHOMETER
1FK-83545-00-00
Unavailable
16
TACHOMETER ASSY
3JP-83540-10-00
Unavailable
17
SOCKET CORD ASSY
3UF-83520-00-00
Unavailable
20
DAMPER
1FK-83523-00-00
Unavailable
21
WASHER PLATE 803835240000
90201-05032-00
Unavailable
22
NUT, HEXAGON (663)
95380-05600-00
Unavailable
23
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
24
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
25
SCREW PAN HEAD
98580-03010-00
Unavailable
26
WASHER, SPRING
92990-03100-00
Unavailable
27
SCREW, TAPPING(3GM)
90167-04057-00
Unavailable
28
GROMET (3X3)
90480-14229-00
Unavailable
29
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
30
NUT(6TA)
95317-06600-00
Unavailable
31
COVER, METER
3JP-83559-00-00
Unavailable
32
DAMPER 2
1FK-83526-00-00
Unavailable
33
SCREW, PAN HEAD
98517-04016-00
Unavailable
34
WASHER(JF2)
92907-04600-00
Unavailable
35
SPEEDOMETER CABLE ASSY
1FK-83550-21-00
Unavailable
