TRANSMISSION

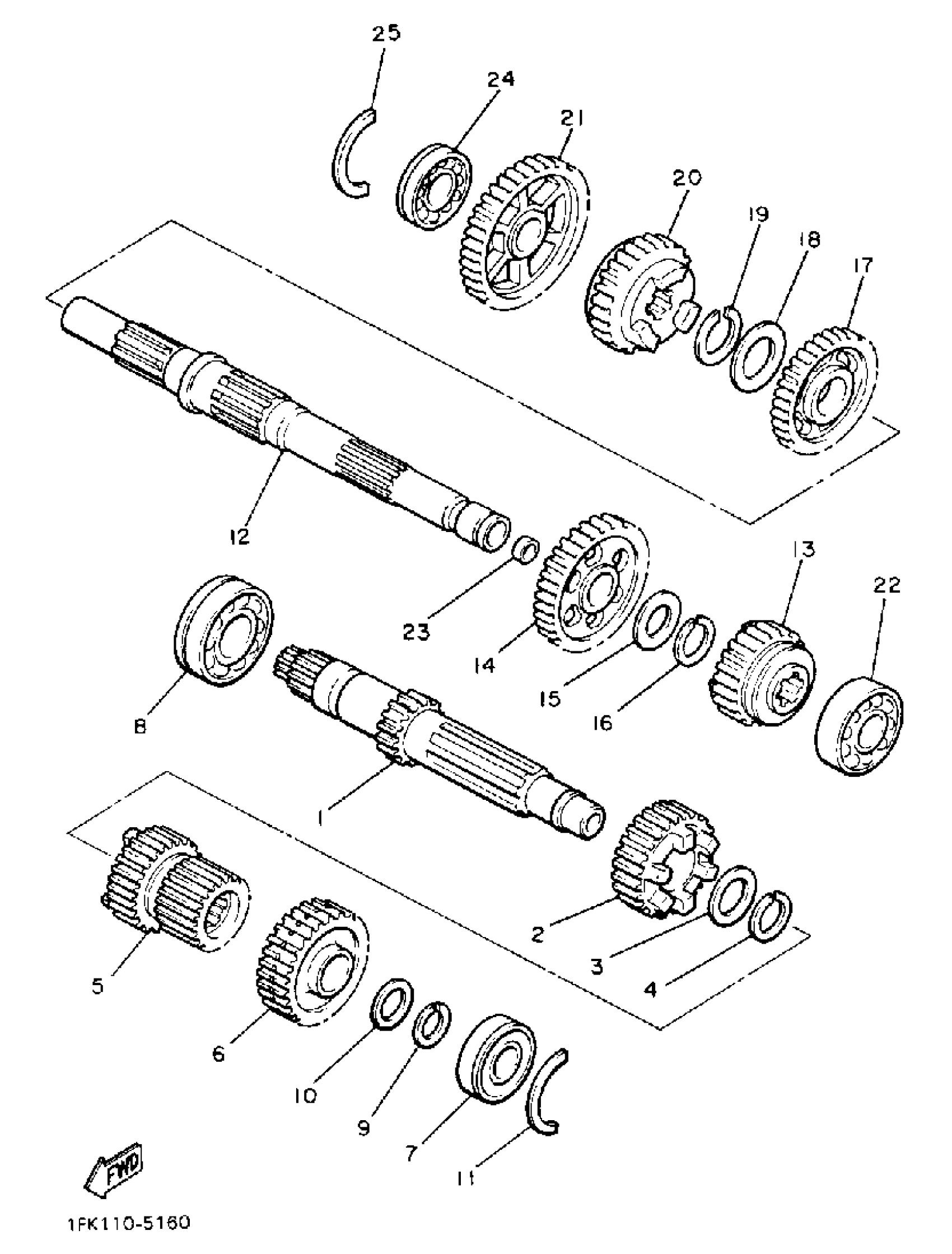

Yamaha VMX12NC (V-MAX 1200 CA) 1JH 1985 TRANSMISSION Diagram
#
1
AXLE, MAIN (17T)
1FK-17411-00-00
Unavailable
2
GEAR, 4TH PINION
1FK-17141-00-00
Unavailable
3
WASHER (4H7)
90209-25196-00
Unavailable
5
. GEAR, 2ND/3RD PINION (22/23T)
1FK-17121-01-00
Unavailable
5
. GEAR, 5TH PINION (28T)
1FK-17151-01-00
Unavailable
5
GEAR,2ND WHEEL
1FK-17221-01-00
Unavailable
5
. GEAR, 5TH WHEEL (26T)
1FK-17251-01-00
Unavailable
5
GEAR SET (VMX12N)
99999-01573-00
Unavailable
6
. GEAR, 2ND/3RD PINION (22/23T)
1FK-17121-01-00
Unavailable
6
. GEAR, 5TH PINION (28T)
1FK-17151-01-00
Unavailable
6
GEAR,2ND WHEEL
1FK-17221-01-00
Unavailable
6
. GEAR, 5TH WHEEL (26T)
1FK-17251-01-00
Unavailable
6
GEAR SET (VMX12N)
99999-01573-00
Unavailable
8
BEARING (26H)
93306-36401-00
Unavailable
9
CIRCLIP (4H7)
93410-23056-00
Unavailable
10
WASHER, PLATE(1FK)
90201-232K5-00
Unavailable
11
CIRCLIP (26H)
93440-52118-00
Unavailable
12
DRIVE AXLE ASSY
4NK-17402-00-00
Unavailable
13
. GEAR, 2ND/3RD PINION (22/23T)
1FK-17121-01-00
Unavailable
13
. GEAR, 5TH PINION (28T)
1FK-17151-01-00
Unavailable
13
GEAR,2ND WHEEL
1FK-17221-01-00
Unavailable
13
. GEAR, 5TH WHEEL (26T)
1FK-17251-01-00
Unavailable
13
GEAR SET (VMX12N)
99999-01573-00
Unavailable
14
GEAR SET (VMX12N)
99999-01573-00
Unavailable
15
WASHER (26H)
90209-32231-00
Unavailable
16
CIRCLIP (371)
93440-34025-00
Unavailable
17
GEAR, 3RD WHEEL(31T)
26H-17231-01-00
Unavailable
18
WASHER (3J3)
90209-27192-00
Unavailable
19
CIRCLIP (3J3)
93440-30077-00
Unavailable
20
GEAR, 4TH WHEEL
1FK-17241-00-00
Unavailable
21
GEAR, 1ST WHEEL (43T)
1FK-17211-00-00
Unavailable
22
BEARING(4NK)
93306-20645-00
Unavailable
23
PLUG (26H)
90331-15039-00
Unavailable
24
BEARING (26H)
93306-20555-00
Unavailable
25
CIRCLIP (26H)
93440-52118-00
Unavailable
