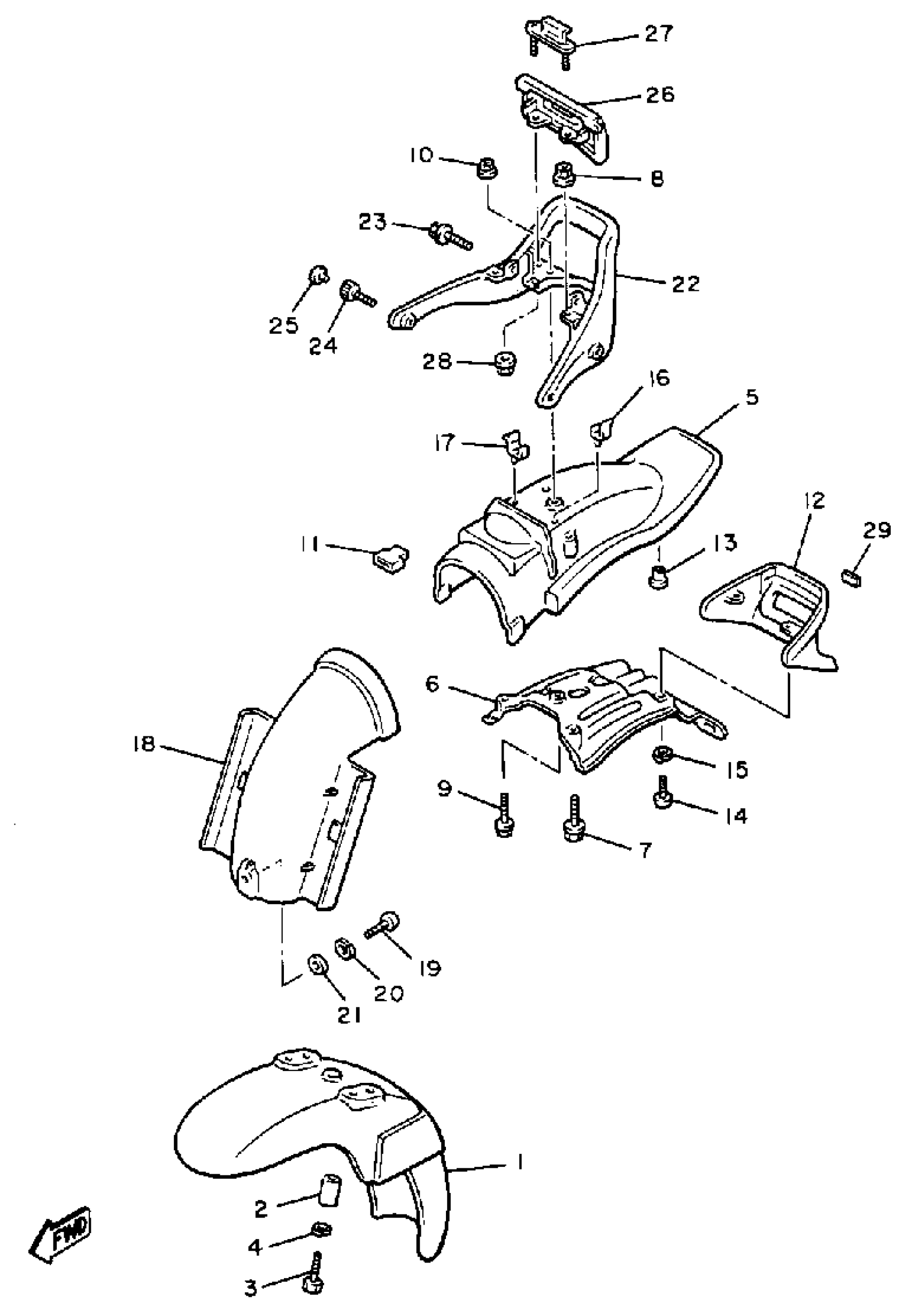

Yamaha VMX12NC (V-MAX 1200 CA) 1JH 1985 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1FK-21511-00-2X

Unavailable

1

FENDER, FRONT

1FK-21511-00-7X

Unavailable

2

COLLAR (3Y2)

90387-07789-00

$9.49

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

FENDER,REAR-BLACK

1FK-21611-00-NA

Unavailable

5

FENDER, REAR

1FK-21611-00-MV

Unavailable

6

UNAVAILABLE IN PRICE BOOK

1FK-21670-00-0

Unavailable

7

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

8

NUT, FLANGE(JN5)

95707-08500-00

$3.13

9

BOLT, FLANGE

95817-06020-00

$3.81

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

DAMPER, SIDE COVER

437-21717-10-00

$9.99

12

COVER, TAILIGHT (1FK-84516-00-35)

1FK-84516-01-35

Unavailable

13

PLATE

31A-14477-10-00

Unavailable

14

SCREW, PAN

98507-06014-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

CLAMP (1J7)

90464-16021-00

Unavailable

17

CLAMP (1J7)

90464-16025-00

Unavailable

18

GUARD, MUD

1FK-21629-00-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE

90201-06049-00

Unavailable

22

STAY, REAR

1FK-21645-00-00

Unavailable

23

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

24

BOLT,SOCKET

91314-08020-00

Unavailable

25

PLUG(42X)

90338-08163-00

Unavailable

26

COVER, REAR FENDER 1

1FK-2163A-00-00

Unavailable

27

COVER, REAR FENDER 3

1FK-2163E-00-00

Unavailable

28

NUT, W/ WASHER

95707-06600-00

Unavailable

29

DAMPER 2

1HX-28227-00-00

Unavailable
