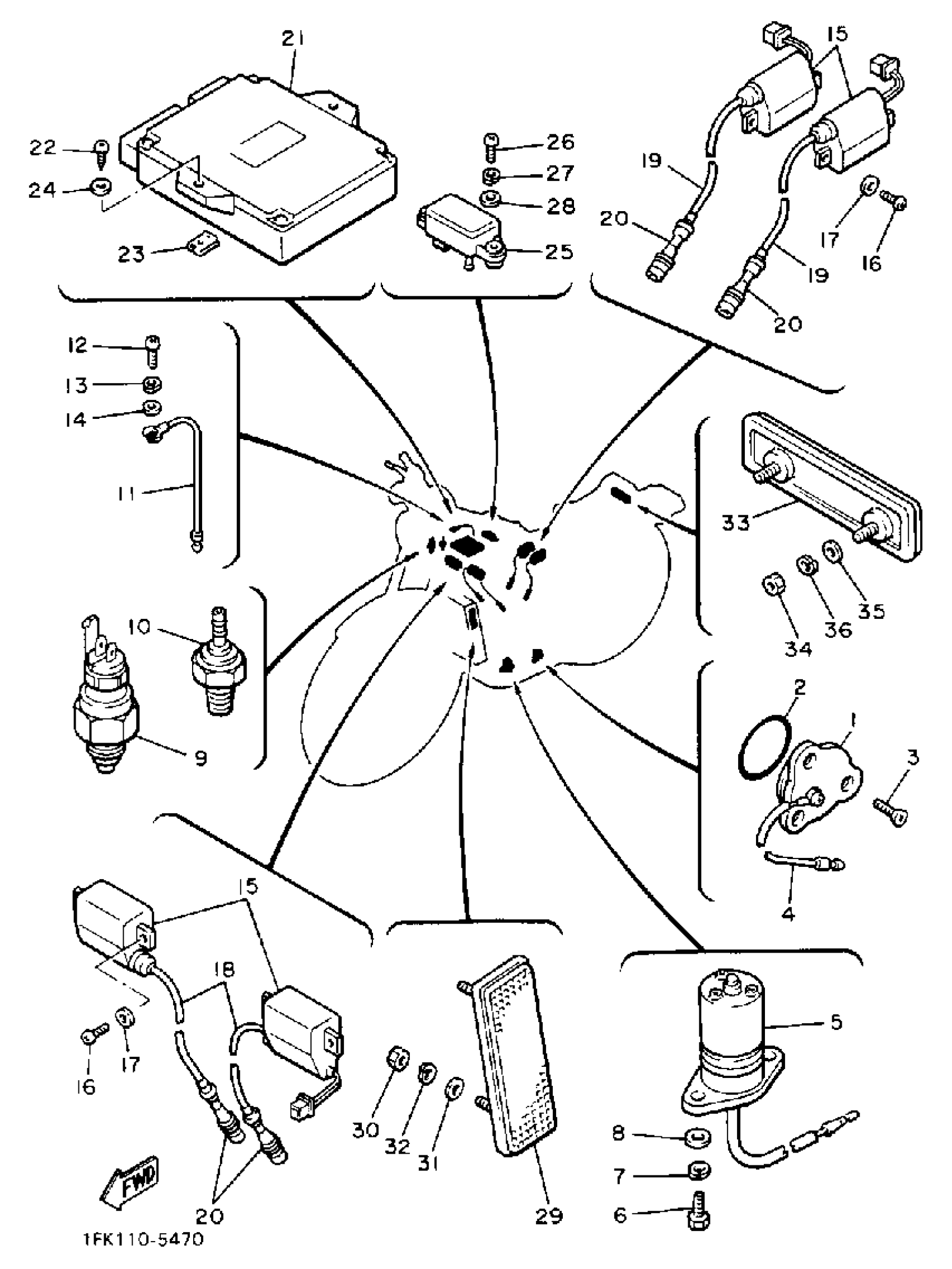

Yamaha VMX12NC (V-MAX 1200 CA) 1JH 1985 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW, FLAT

98707-05012-00

$1.71

4

WIRE, LEAD

2JX-82541-00-00

Unavailable

5

OIL LEVEL GAUGE ASSY

1FK-85720-00-00

Unavailable

6

BOLT, HEXAGON

97017-06020-00

$4.06

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

9

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

10

THERMO UNIT

11H-83591-00-00

$105.99

11

WIRE,EARTH LEAD 1

4NK-83354-00-00

Unavailable

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

IGNITION COIL ASSY

25G-82310-10-00

Unavailable

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

19

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

20

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

21

IGNITOR UNIT ASSY

1FK-82305-09-00

Unavailable

22

SCREW, PAN TAP.2 SLIT

97707-40612-00

Unavailable

23

NUT, SPRING (26H)

90183-04027-00

Unavailable

24

WASHER(6E1)

92907-04200-00

Unavailable

25

SENSOR, PRESSURE

22N-82380-10-00

Unavailable

26

SCREW PAN HEAD

98580-06020-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

WASHER, PLATE

90201-06020-00

Unavailable

29

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

30

NUT, HEXAGON

95317-05600-00

Unavailable

31

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

32

WASHER(3SX)

92907-05100-00

Unavailable

33

UNAVAILABLE IN PRICE BOOK

1FK-85130-00-0

Unavailable

34

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

35

. WASHER, PLAIN

92990-05200-00

Unavailable

36

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
