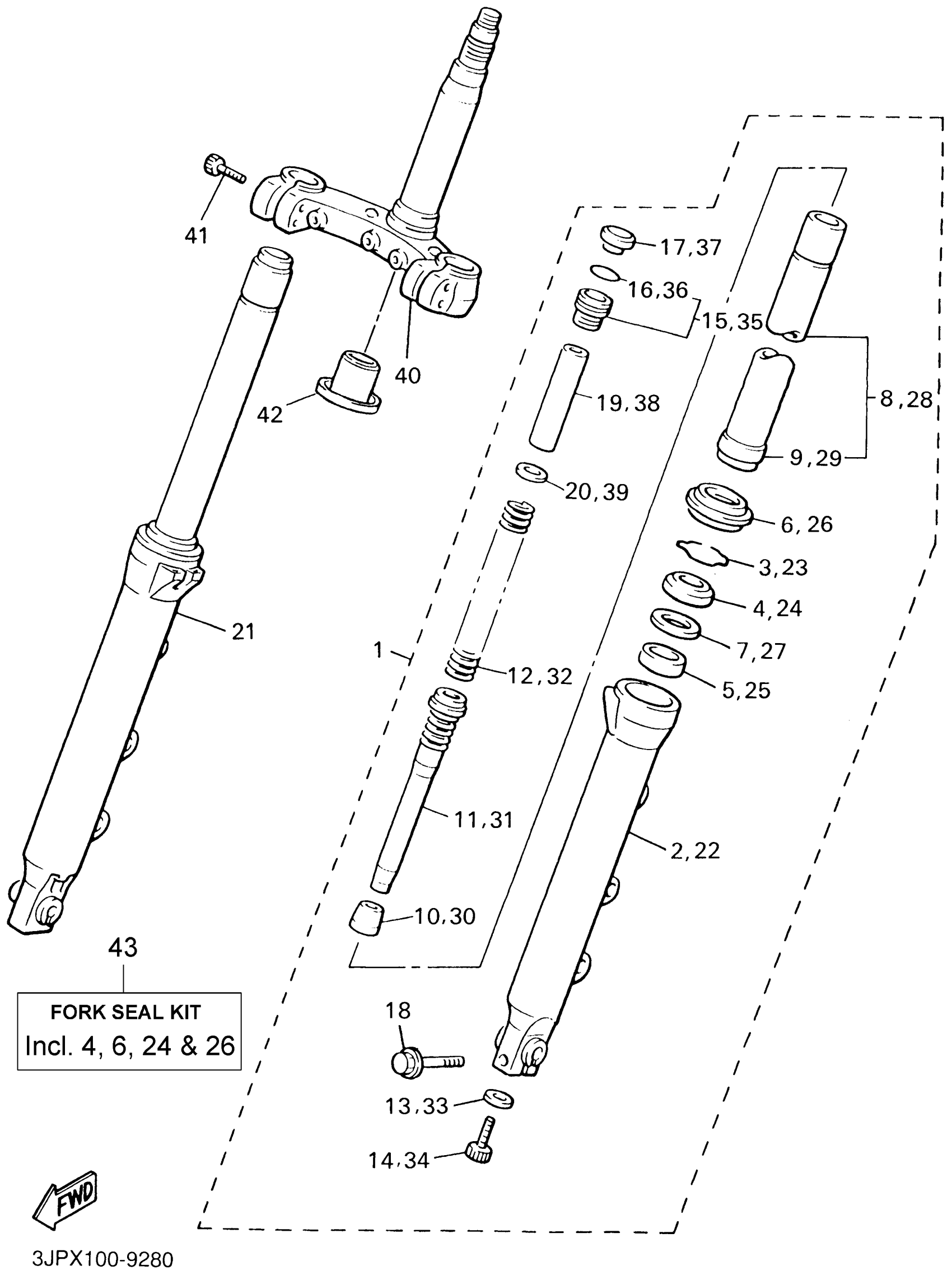

Yamaha VMX12LC (V-MAX 1200 CA) 3JPY 1999 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L
3LR-23102-10-00
Unavailable
2
. TUBE, OUTER (LEFT)
3LR-23126-00-00
Unavailable
10
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
11
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
12
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
15
BOLT, CAP
3LR-23111-00-00
Unavailable
16
O-RING
4V4-23188-L1-00
Unavailable
17
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
18
BOLT, FLANGE
95814-08045-00
Unavailable
19
SPACER
3YF-23118-00-00
Unavailable
20
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
21
FRONT FORK ASSY (R
3LR-23103-10-00
Unavailable
22
. TUBE, OUTER (RIGHT)
3LR-23136-00-00
Unavailable
30
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
31
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
32
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
35
BOLT, CAP
3LR-23111-00-00
Unavailable
36
O-RING
4V4-23188-L1-00
Unavailable
37
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
38
SPACER
3YF-23118-00-00
Unavailable
39
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
40
UNDER BRACKET COMP.
3LR-23340-10-00
Unavailable
41
BOLT
91314-08032-00
Unavailable
42
COVER, LOWER 1
4KM-23123-01-00
Unavailable
43
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
