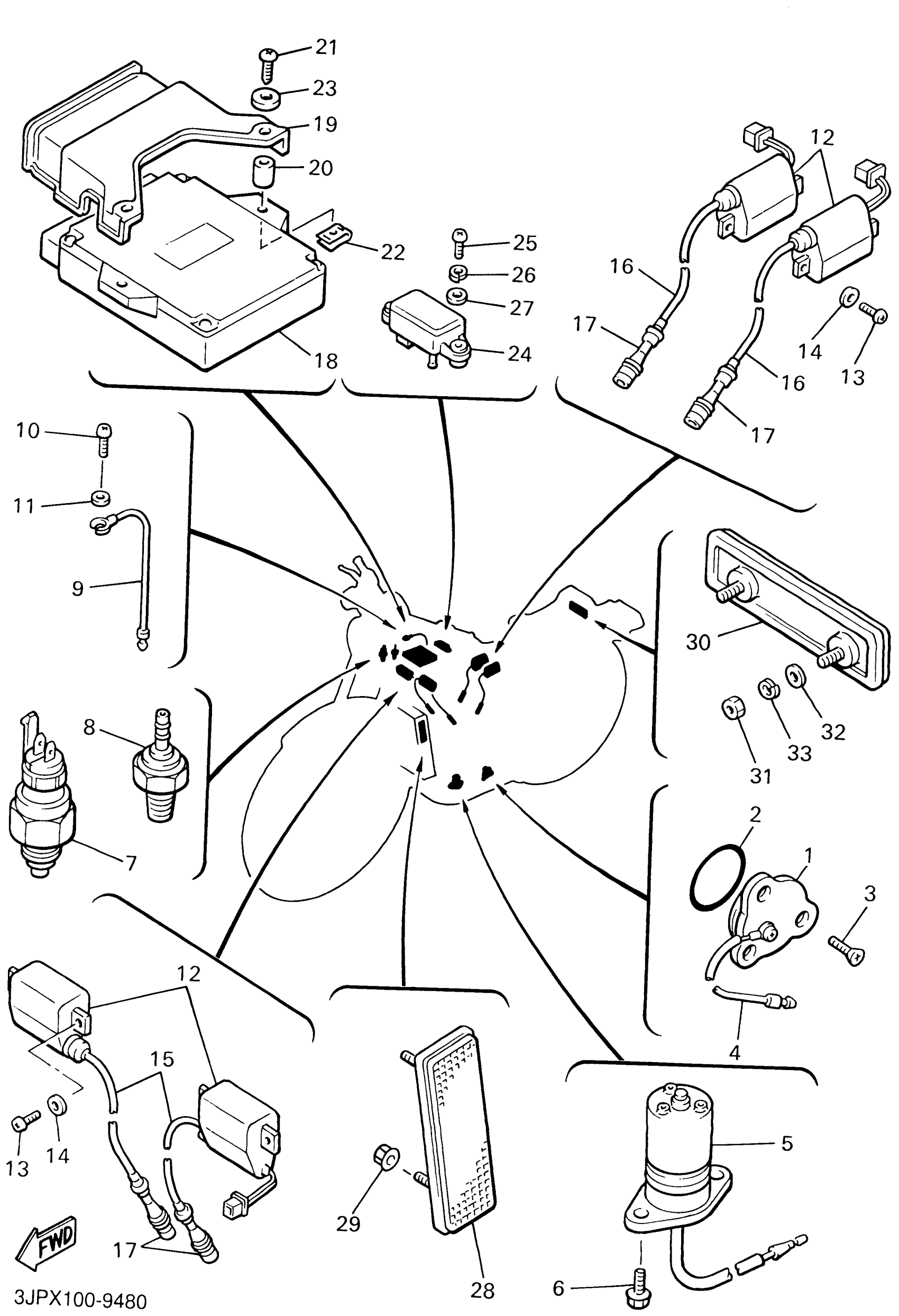

Yamaha VMX12LC (V-MAX 1200 CA) 3JPY 1999 ELECTRICAL 1 Diagram

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

O-RING (371)

93210-29196-00

$8.49

SCREW(3HX)

90149-05245-00

$8.49

WIRE, LEAD

2JX-82541-00-00

Unavailable

OIL LEVEL GAUGE ASSY

1FK-85720-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

THERMO UNIT

11H-83591-00-00

$105.99

WIRE,EARTH LEAD 1

4NK-83354-00-00

Unavailable

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

WASHER(JF2)

92907-04600-00

$1.71

IGNITION COIL ASSY

25G-82310-10-00

Unavailable

SCREW, PAN

98517-06020-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

IGNITOR UNIT ASSY

3JP-82305-13-00

Unavailable

DAMPER, IGNITION COIL

2EN-82317-00-00

Unavailable

COLLAR(2EN)

90387-045R4-00

Unavailable

SCREW, TAPPING(4HP)

97707-40616-00

Unavailable

NUT, SPRING (26H)

90183-04027-00

Unavailable

WASHER(6E1)

92907-04200-00

Unavailable

SENSOR, PRESSURE

22N-82380-10-00

Unavailable

SCREW, PAN

98517-06020-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72

WASHER, PLATE

90201-06557-00

Unavailable

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

WASHER(3SX)

92907-05100-00

Unavailable
