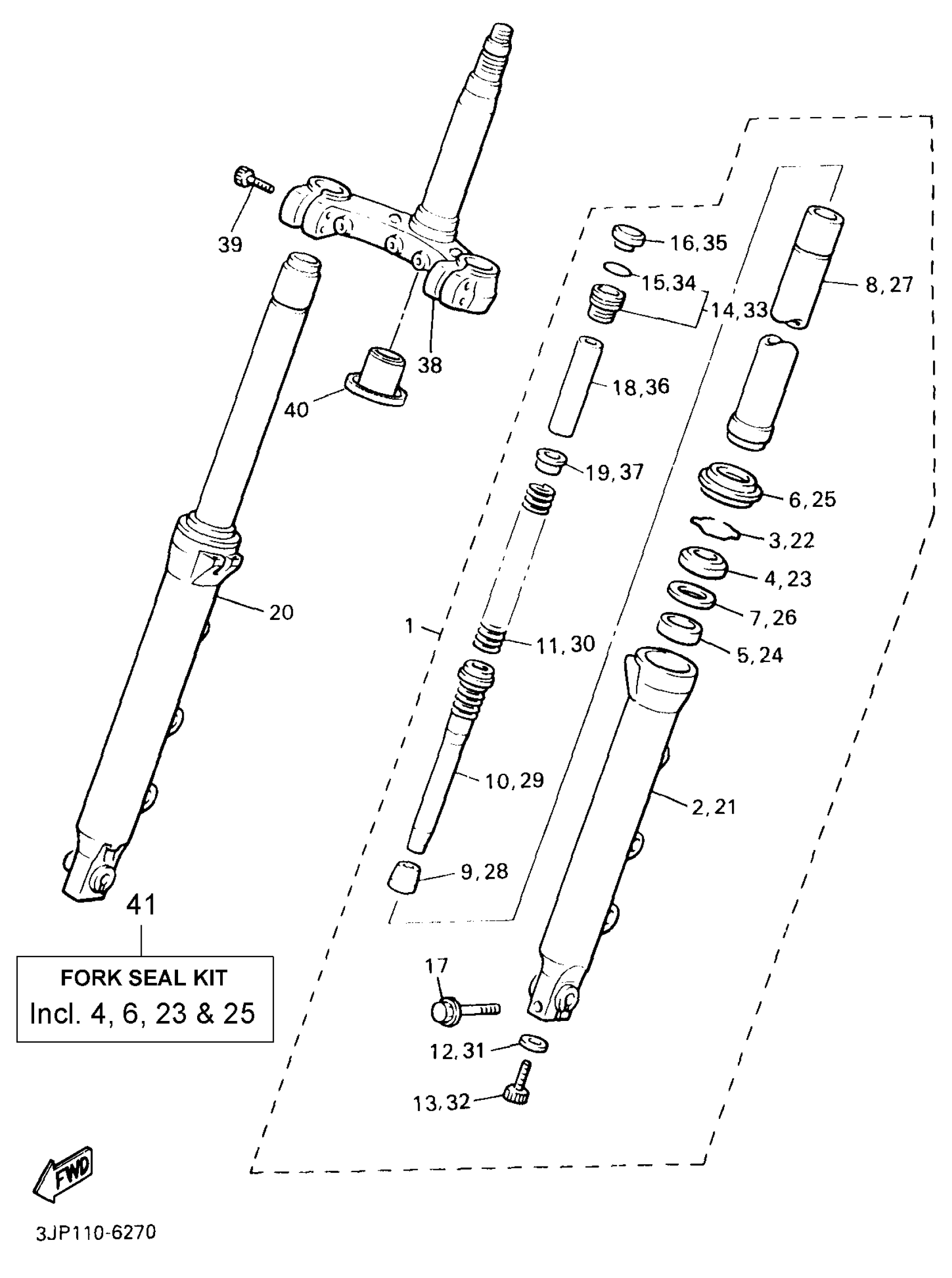

Yamaha VMX12KC (V-MAX 1200 CA) 3JPW 1998 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASY L
3JP-23102-02-00
Unavailable
2
. TUBE, OUTER (LEFT)
3JP-23126-00-00
Unavailable
9
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
11
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
14
BOLT, CAP
3LR-23111-00-00
Unavailable
15
O-RING
4V4-23188-L1-00
Unavailable
16
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
17
BOLT, FLANGE
95814-08045-00
Unavailable
18
SPACER
3YF-23118-00-00
Unavailable
19
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
20
FRONT FORK ASY R
3JP-23103-02-00
Unavailable
21
. TUBE, OUTER (LEFT)
3JP-23126-00-00
Unavailable
28
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
29
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
30
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
33
BOLT, CAP
3LR-23111-00-00
Unavailable
34
O-RING
4V4-23188-L1-00
Unavailable
35
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
36
SPACER
3YF-23118-00-00
Unavailable
37
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
38
UNDER BRACKET COMP.
3LR-23340-10-00
Unavailable
39
BOLT
91314-08032-00
Unavailable
40
COVER, LOWER 1
4KM-23123-01-00
Unavailable
41
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
