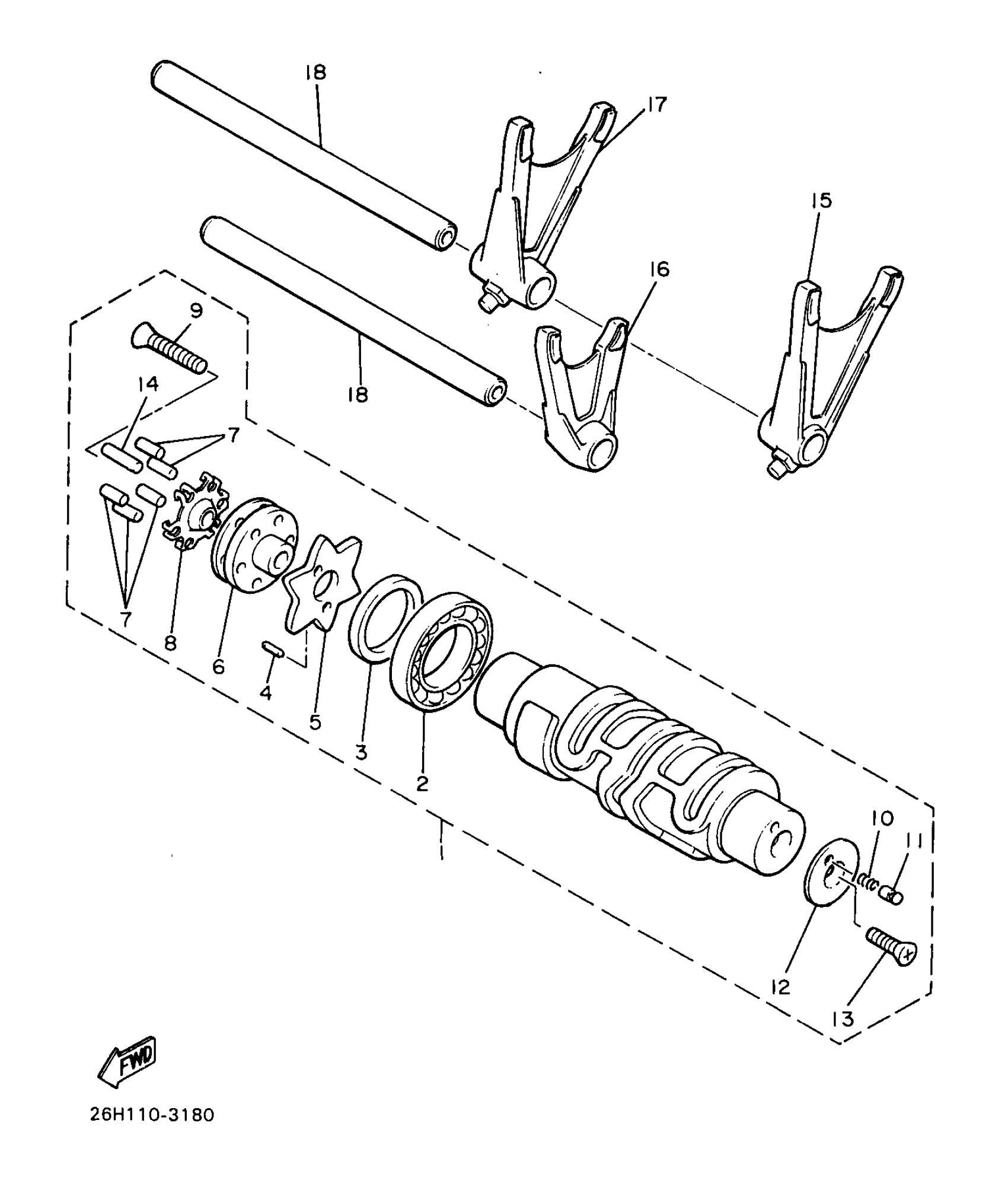

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 SHIFT CAM SHIFT FORK Diagram

SHIFT CAM ASSY

26H-18540-03-00

Unavailable

BRG,R-B (4X7)

93306-90602-00

$41.99

SPACER (26H)

90560-30234-00

Unavailable

PIN (2H7)

93603-10049-00

Unavailable

PLATE, STOPPER

4NK-18141-00-00

Unavailable

SEGMENT

4NK-18185-00-00

Unavailable

PIN, DOWEL (26H)

93604-17198-00

$1.71

PLATE, SIDE 1

26H-18561-01-00

Unavailable

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

POINT, NEUTRAL

4UN-18542-00-00

$8.99

PLATE, SIDE 2

278-18566-00-00

Unavailable

SCREW, FLAT

98707-05016-00

$7.99

PIN, DOWEL (26H)

93604-21197-00

$7.49

FORK, SHIFT 1

26H-18511-01-00

$65.99

FORK, SHIFT 2

26H-18512-00-00

Unavailable

FORK, SHIFT 3

26H-18513-00-00

Unavailable

BAR, SHIFT FORK GUIDE 1

26H-18531-00-00

Unavailable
