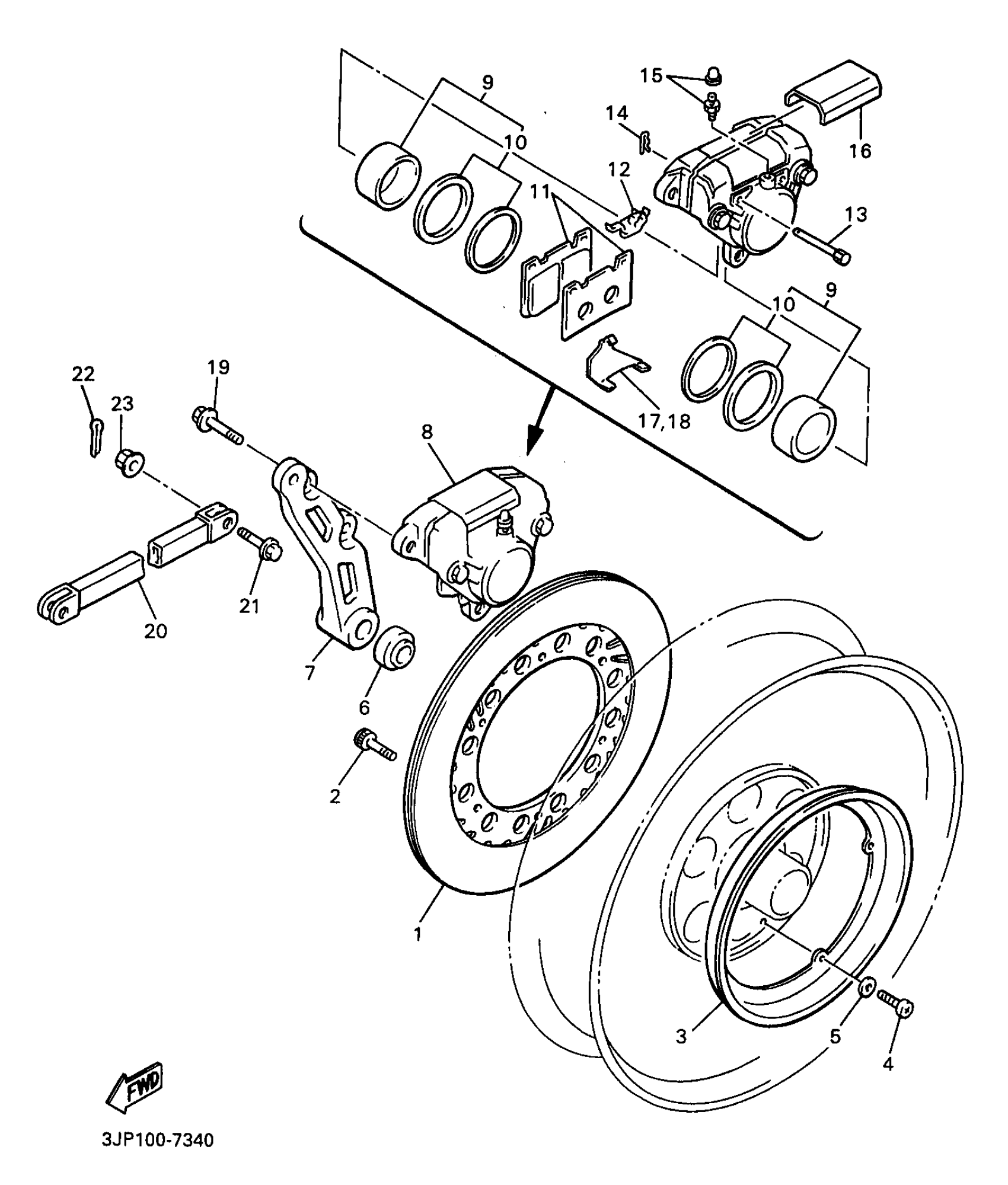

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, BRAKE (RIGHT)

3JP-2582U-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

COVER, PLATE

1FK-25327-00-00

Unavailable

4

SCREW, PAN HEAD

98517-05020-00

$4.25

5

WASHER(1RW)

92907-05600-00

$3.78

6

COLLAR (26H)

90387-200J2-00

$31.99

7

BRACKET, CALIPER

1FK-25819-00-00

Unavailable

8

CALIPER ASSY, REAR 2

4BH-2580W-01-00

Unavailable

9

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

10

PISTON SEAL KIT

31A-W0047-00-00

$57.99

11

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

12

SPRING

26H-25919-00-00

Unavailable

13

PIN, PAD

3HE-25924-00-00

Unavailable

14

CLIP, PAD PIN

3GM-25925-00-00

$11.99

15

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

16

COVER, DUST

41Y-25836-01-00

Unavailable

17

SHIM, CALIPER

1FK-25827-01-00

Unavailable

18

SHIM, CALIPER

1FK-25828-01-00

Unavailable

19

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

20

BAR, TENSION

36Y-25371-00-00

Unavailable

21

BOLT, FLANGE

90105-08777-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

NUT, FLANGE

95704-08500-00

Unavailable
