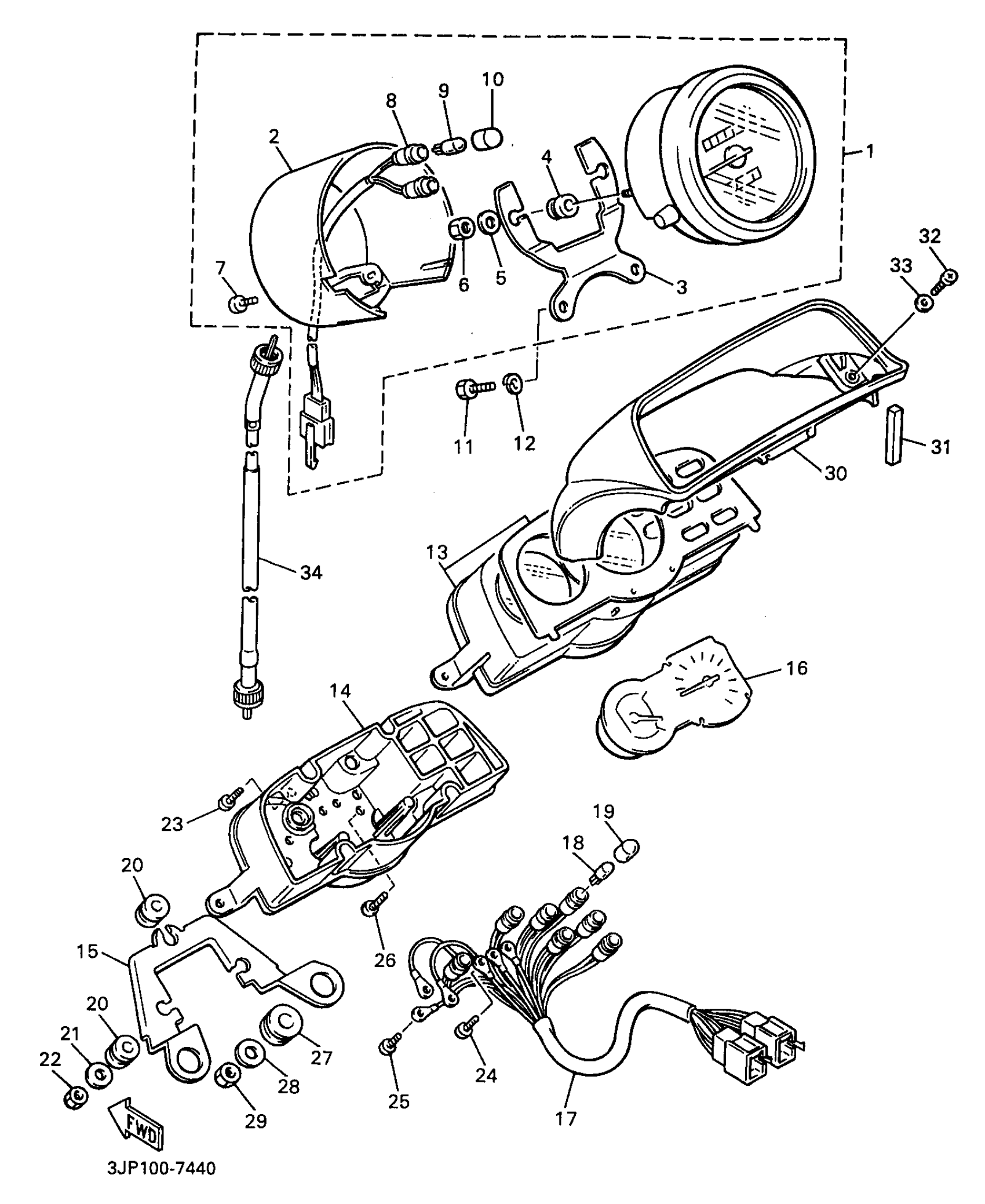

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

1FK-83570-A2-00

Unavailable

2

COVER, SPEEDOMETER

1FK-83507-00-00

$113.99

3

BRACKET, METER

1FK-83519-00-00

Unavailable

4

DAMPER

1FG-83523-00-00

Unavailable

5

WASHER(1RW)

92907-05600-00

$3.78

6

NUT, HEXAGON

95317-05600-00

$2.34

7

SCREW, TAPPING (10M)

90164-04009-00

$7.49

8

. SOCKET CORD ASSY

1FK-83509-00-00

Unavailable

9

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

10

TUBE

1FK-83535-00-00

$10.99

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

WASHER(6TA)

92907-06600-00

$2.72

13

CASE, UPPER

3LR-8353G-00-00

Unavailable

14

CASE, INNER

1FK-8353H-00-00

Unavailable

15

BRACKET, TACHOMETER

1FK-83545-00-00

Unavailable

16

TACHOMETER ASSY

3LR-83540-00-00

Unavailable

17

SOCKET CORD ASSY

3UF-83520-00-00

Unavailable

18

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

19

TUBE

1FK-83535-00-00

$10.99

20

DAMPER

1FK-83523-00-00

Unavailable

21

WASHER PLATE 803835240000

90201-05032-00

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable

23

SCREW, TAPPING

90164-04005-00

Unavailable

24

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

25

SCREW, WITH WASHER

90159-03044-00

Unavailable

26

SCREW, WITH WASHER

90159-04043-00

Unavailable

27

GROMET (3X3)

90480-14229-00

Unavailable

28

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

29

NUT(6TA)

95317-06600-00

Unavailable

30

COVER, METER

3JP-83559-00-00

Unavailable

31

DAMPER 2

1FK-83526-00-00

Unavailable

32

SCREW, PAN HEAD

98517-04016-00

Unavailable

33

WASHER(JF2)

92907-04600-00

Unavailable

34

SPEEDOMETER CABLE ASSY

1FK-83550-11-00

Unavailable
