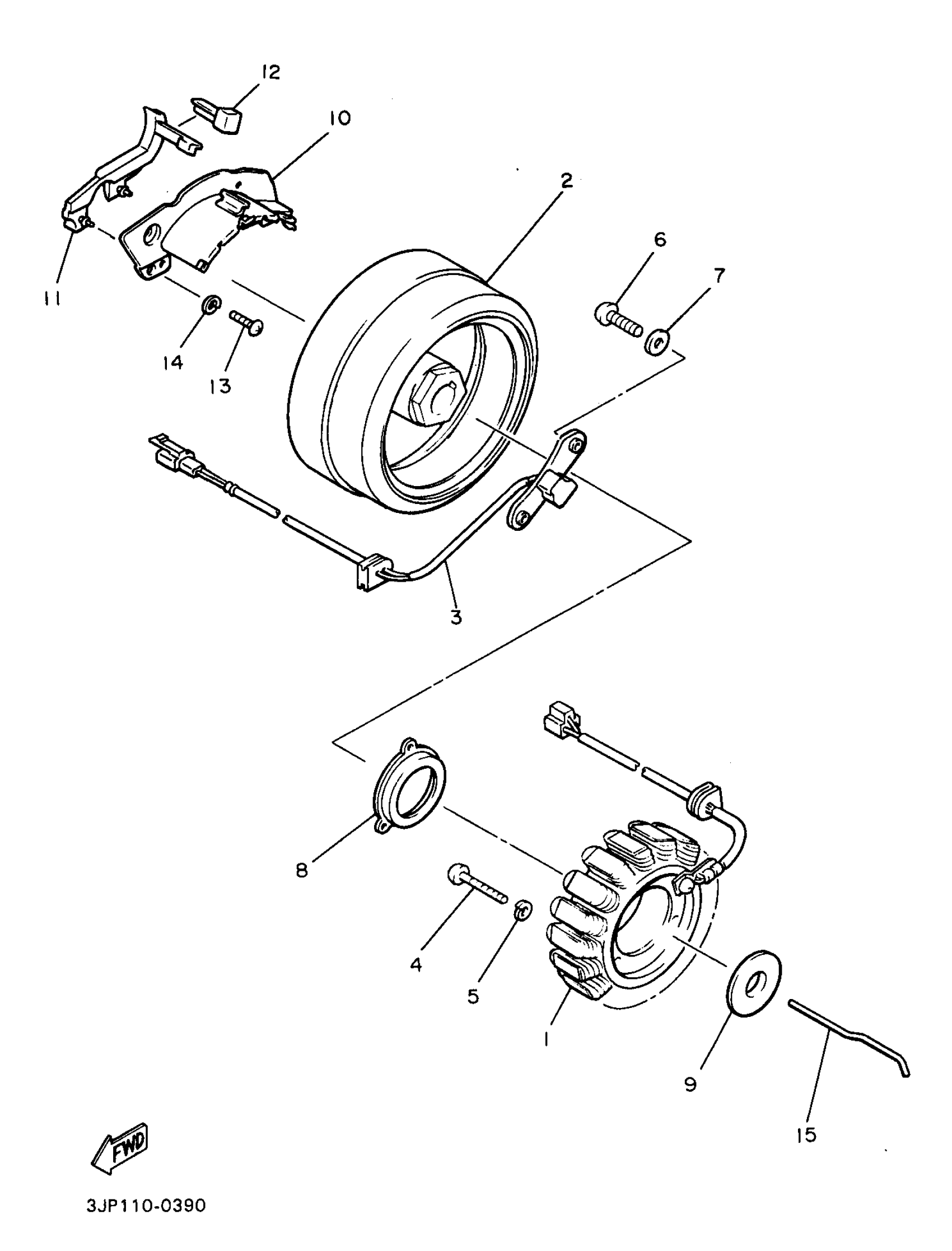

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 GENERATOR Diagram

#

Description
Price

1

STATOR ASSY

3UF-81410-10-00

Unavailable

2

ROTOR ASSY

3UF-81450-10-00

Unavailable

3

PICK-UP ASSY

3UF-81670-00-00

Unavailable

4

SCREW, PAN

98507-06040-00

$3.22

5

WASHER(6TA)

92907-06600-00

$2.72

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

7

WASHER, PLATE

90201-06045-00

$8.49

8

PLATE, STAT0R

59J-15113-00-00

$5.49

9

PLATE, C0VER

59J-15191-00-00

$4.37

10

SEPARATOR, OIL

1FK-15358-00-00

Unavailable

11

SEAL, CRANKCASE

1FK-15379-00-00

$25.99

12

SEAL, PROTECTOR

1FK-15494-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

WASHER(6TA)

92907-06600-00

$2.72

15

SHAFT 1

59J-11455-00-00

$11.99
