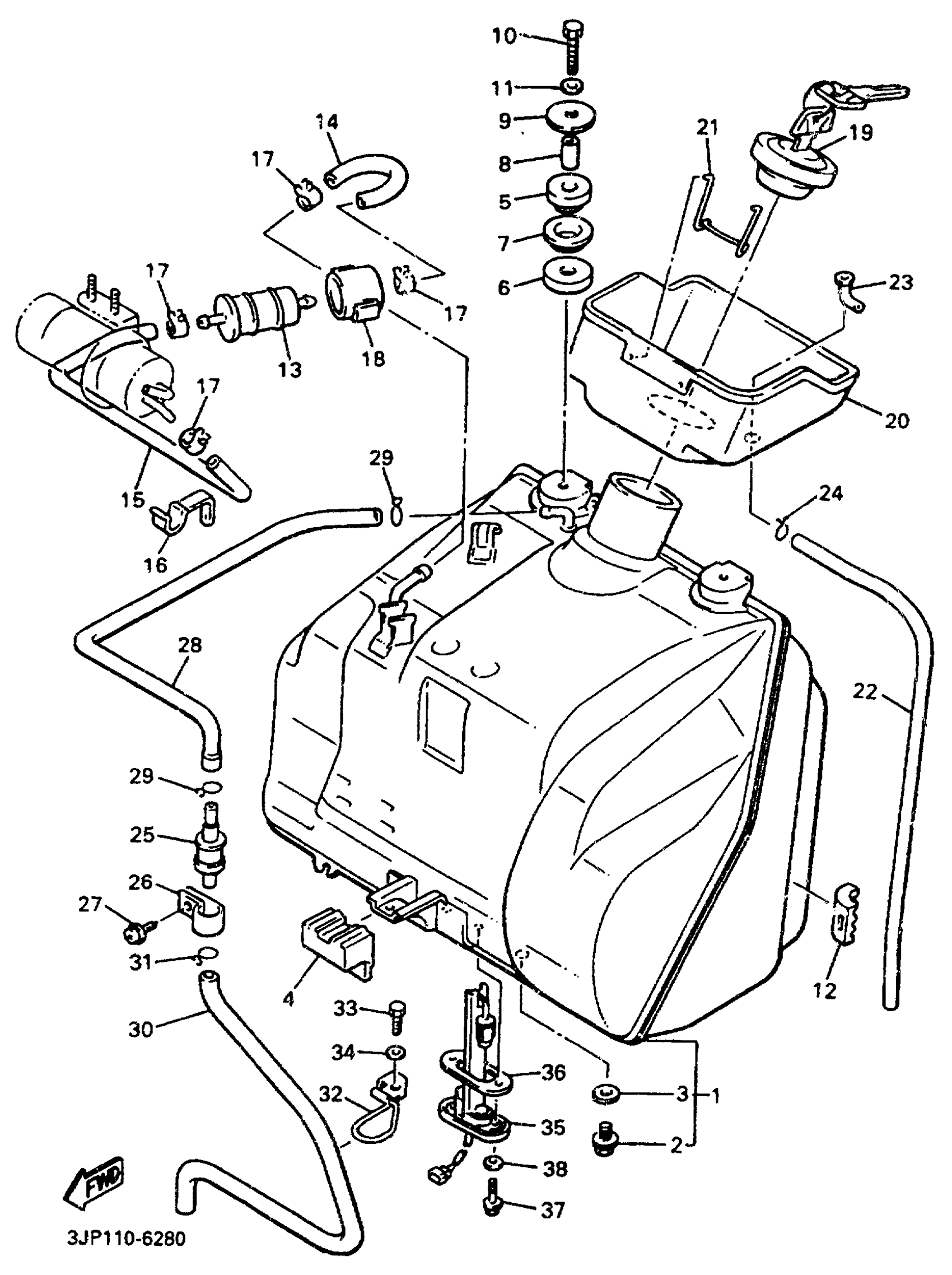

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 FUEL TANK NON CALIFORNIA Diagram

#

Description
Price

1

FUEL TANK COMP.

1FK-24110-11-33

Unavailable

2

BOLT, FLANGE

95817-08012-00

$3.71

3

WASHER, PLATE 3411117500

90201-08087-00

$2.93

4

DAMPER, LOCATING 1

1FK-24181-00-00

Unavailable

5

DAMPER, LOCATING 2

1FK-24182-00-00

Unavailable

6

DAMPER, SEAT

23T-24724-01-00

$6.09

7

WASHER, SPECIAL

1FK-24186-00-00

$5.03

8

COLLAR

90387-06387-00

Unavailable

9

WASHER (23T)

90201-065G8-00

$5.75

10

BOLT, HEXAGON

97017-06030-00

$2.80

11

WASHER(6TA)

92907-06600-00

$0.73

12

DAMPER, LOCATING 4

1FK-24184-00-00

Unavailable

13

FILTER ASSY

1FK-24560-10-00

$27.36

14

PIPE 4

1FK-24314-00-00

Unavailable

15

PIPE 5

1FK-24315-00-00

Unavailable

16

CLAMP(6R3)

90464-13M34-00

$1.43

17

CLIP(3GM)

90467-12124-00

Unavailable

18

BRACKET, FILTER

1FK-24566-00-00

Unavailable

19

CAP ASSY

54K-24602-10-00

Unavailable

20

COVER, FILLER

1FK-2414A-00-00

Unavailable

21

SPRING

1FK-24393-00-00

Unavailable

22

HOSE (L1500)

90445-084J0-00

Unavailable

23

PIPE, JOINT 1

1FK-24376-00-00

Unavailable

24

CLIP (16G)

90467-08021-00

Unavailable

25

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

26

CLAMP

90464-15014-00

Unavailable

27

SCREW, TAPPING(3JP)

97707-50612-00

Unavailable

28

PIPE, FUEL 1

1FK-24311-02-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

HOSE (L730)

90445-105K7-00

Unavailable

31

CLIP

90467-090A2-00

Unavailable

32

HOLDER

1FK-2419A-00-00

Unavailable

33

BOLT, HEXAGON

97017-06016-00

Unavailable

34

WASHER(6TA)

92907-06600-00

$0.73

35

SENDER UNIT ASSY, FUEL METER

1FK-85752-02-00

Unavailable

36

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

37

SCREW 256241430000

90149-06011-00

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable
