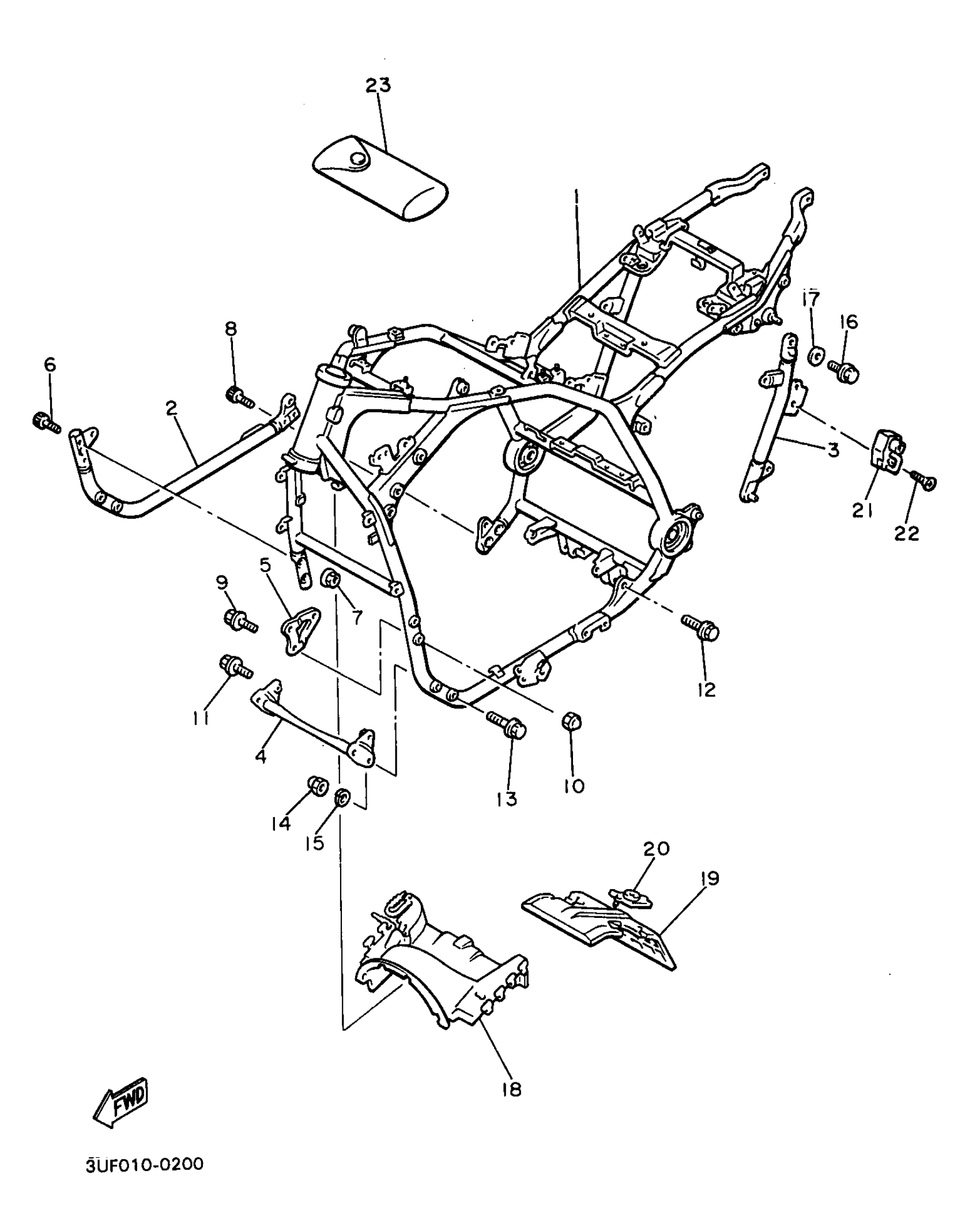

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1FK-21110-00-33

Unavailable

2

DOWN TUBE COMP.

1FK-21140-00-33

Unavailable

3

BACK STAY SUB COMP. 1

3UF-21105-00-33

Unavailable

4

CROSS BAR COMPLETE

1FK-2141V-10-00

$93.99

5

STAY, ENGINE 2

1FK-21315-00-00

Unavailable

6

BOLT, SOCKET

91317-10030-00

$9.49

7

NUT(4KG)

90179-10658-00

$9.49

8

BOLT, SOCKET

91317-10020-00

Unavailable

9

BOLT, FLANGE

90105-081A0-00

Unavailable

10

NUT, CROWN (5A8)

90176-10033-00

$9.49

11

BOLT, WASHER BASED(1FK)

90105-10376-00

$7.49

12

BOLT, WASHER BASED (26H)

90105-12252-00

$11.49

13

BOLT, FLANGE

95817-08060-00

$3.76

14

NUT, CROWN (12W)

90176-08040-00

$4.19

15

WASHER(JN5)

92907-08100-00

$8.49

16

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

17

WASHER (853)

90201-08326-00

Unavailable

18

COVER

1FK-2117F-01-00

Unavailable

19

COVER 2

1FK-2117M-00-00

Unavailable

20

COVER 3

1FK-2117N-01-00

Unavailable

21

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

22

SCREW (4G1)

90149-06154-00

Unavailable

23

TOOL KIT

26H-W2810-00-00

Unavailable
