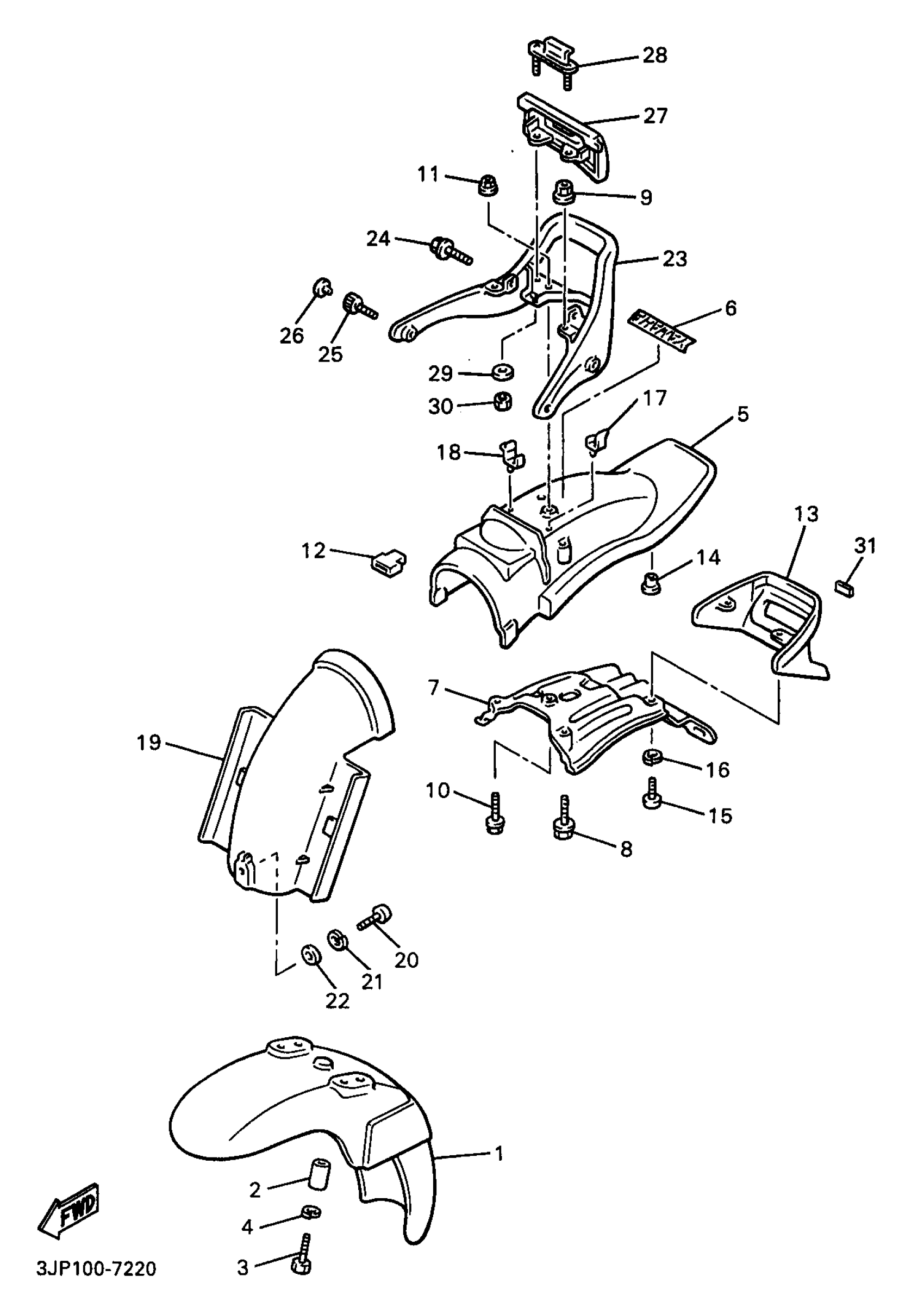

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (NSD/LGB)

1FK-21511-00-2Y

Unavailable

2

COLLAR (3Y2)

90387-07789-00

$9.49

3

BOLT, HEXAGON

97017-06016-00

$8.49

4

WASHER, SPRING

92907-06100-00

$4.25

5

FENDER, REAR (NSD)

1FK-21611-00-3H

Unavailable

6

EMBLEM, YAMAHA

99247-00080-00

$15.99

7

REINF. COMP.

1FK-21670-01-00

Unavailable

8

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

9

NUT, FLANGE(JN5)

95707-08500-00

$3.13

10

BOLT, FLANGE

95817-06020-00

$3.81

11

NUT, FLANGE(4MV)

95707-06500-00

$1.23

12

DAMPER, SIDE COVER

437-21717-10-00

$9.99

13

COVER, TAILLIGHT

1FK-84516-01-98

Unavailable

14

PLATE

31A-14477-10-00

Unavailable

15

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

16

WASHER(6TA)

92907-06600-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

CLAMP (1J7)

90464-16025-00

Unavailable

19

GUARD, MUD

1FK-21629-00-00

Unavailable

20

SCREW, PAN

98517-06012-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

WASHER, PLATE

90201-06049-00

Unavailable

23

STAY, REAR

1FK-21645-00-00

Unavailable

24

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

25

BOLT, SOCKET

91317-08020-00

Unavailable

26

PLUG(42X)

90338-08163-00

Unavailable

27

COVER, REAR FENDER 1

1FK-2163A-00-00

Unavailable

28

COVER, REAR FENDER 3

1FK-2163E-00-00

Unavailable

29

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

30

NUT(6TA)

95317-06600-00

Unavailable

31

DAMPER 2

1HX-28227-00-00

Unavailable
