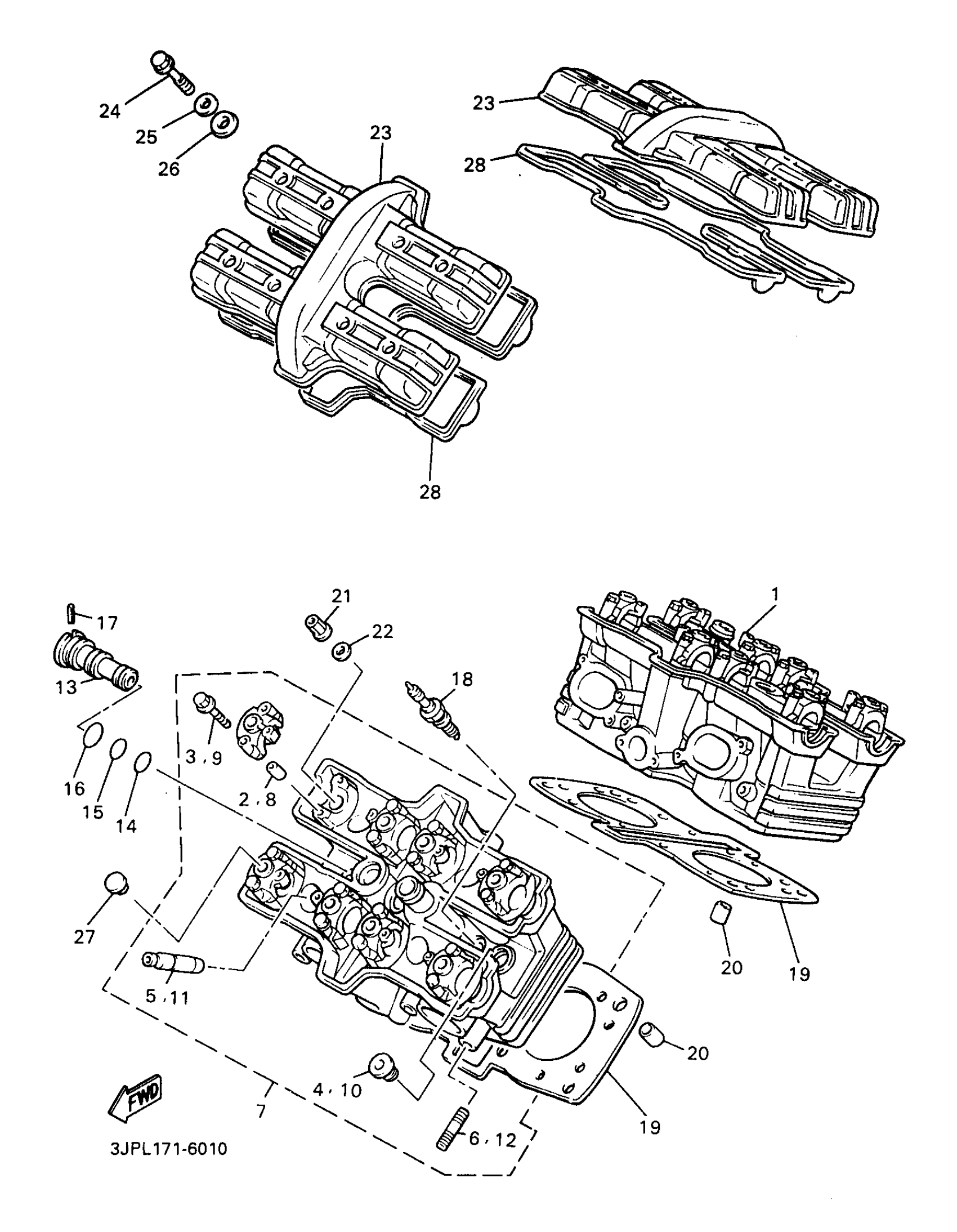

Yamaha VMX12JC (V-MAX 1200 CA) 3JPT 1997 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1FK-11101-01-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

4

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

5

GUIDE, INTAKE VALVE

30X-11133-10-00

$49.99

6

. BOLT, STUD

95917-08620-00

Unavailable

7

CYLINDER HEAD ASSY 2

1FK-W1112-01-00

Unavailable

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

10

PLUG, STRAIGHT SCREW (26H)

90340-20090-00

Unavailable

11

GUIDE, INTAKE VALVE

30X-11133-10-00

$49.99

12

BOLT, STUD 3

95617-08635-00

$5.60

13

JOINT 1

26H-12469-01-00

Unavailable

14

O-RING (26H)

93210-16629-00

$7.49

15

O-RING (1L9)

93210-18322-00

$5.60

16

O-RING (26H)

93210-21631-00

Unavailable

17

PIN, SPRING

91690-30025-00

Unavailable

18

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

19

GASKET, CYLINDER HEAD 1

26H-11181-02-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable

21

NUT (26H)

90179-10414-00

Unavailable

22

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

23

COVER, CYLINDER HEAD 1

1FK-11191-00-00

Unavailable

24

BOLT, WITH WASHER(2JE)

90119-06218-00

Unavailable

25

WASHER(46X)

90209-11262-00

Unavailable

26

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

27

PLUG (31M)

90338-10150-00

Unavailable

28

GASKET, HEAD COVER 1

26H-11193-01-00

Unavailable
