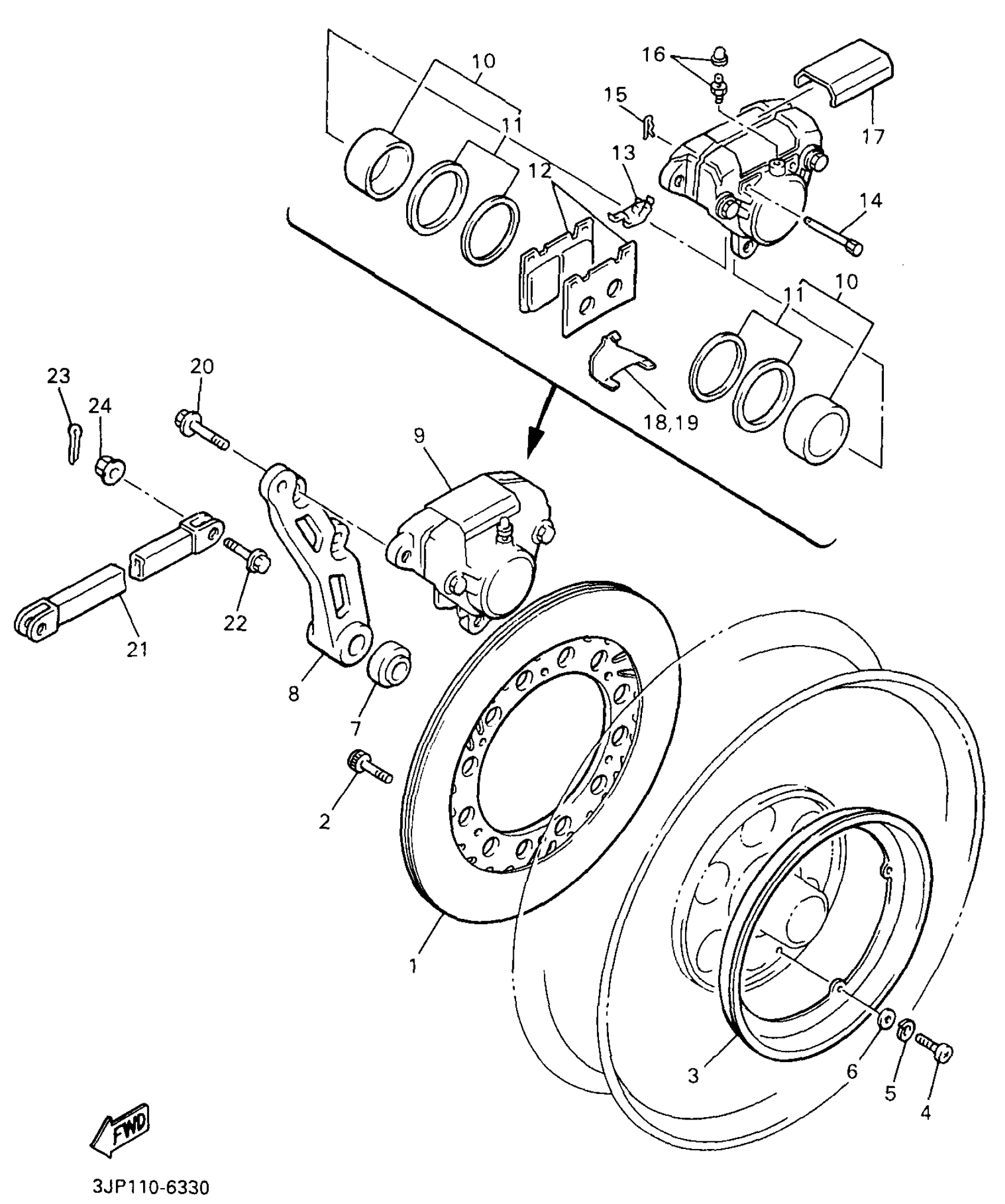

Yamaha VMX12HC (V-MAX 1200 CA) 3JPN 1996 REAR BRAKE CALIPER Diagram

DISK, BRAKE (RIGHT)

3JP-2582U-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

COVER, PLATE

1FK-25327-00-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

WASHER(3SX)

92907-05100-00

$8.49

WASHER(1RW)

92907-05600-00

$3.78

COLLAR (26H)

90387-200J2-00

$31.99

BRACKET, CALIPER

1FK-25819-00-00

Unavailable

CALIPER ASSY, REAR 2

4BH-2580W-01-00

Unavailable

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

PISTON SEAL KIT

31A-W0047-00-00

$57.99

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

SPRING

26H-25919-00-00

Unavailable

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

41Y-25836-01-00

Unavailable

SHIM, CALIPER

1FK-25827-01-00

Unavailable

SHIM, CALIPER

1FK-25828-01-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

BAR, TENSION

36Y-25371-00-00

Unavailable

BOLT, FLANGE

90105-08777-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable

NUT, FLANGE

95704-08500-00

Unavailable
