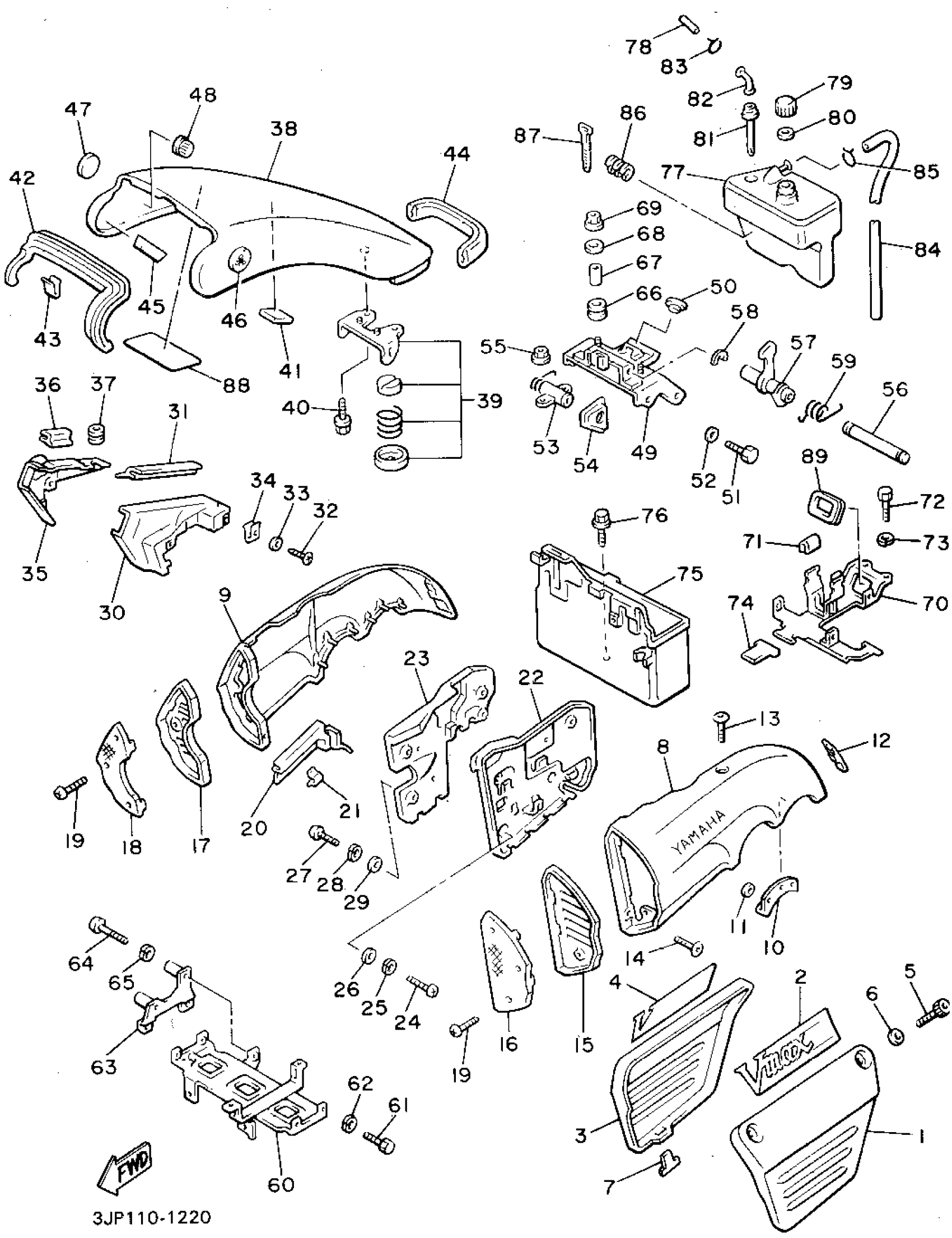

Yamaha VMX12GC (V-MAX 1200 CA) 3JPJ 1995 SIDE COVER Diagram
#
1
COVER, SIDE 1
1UT-21711-01-00
Unavailable
2
EMBLEM 3
1UT-21783-00-00
Unavailable
3
COVER, SIDE 2
1UT-21721-01-00
Unavailable
4
EMBLEM 4
1UT-21784-00-00
Unavailable
8
COVER, SIDE 3
1FK-21731-00-00
Unavailable
9
COVER, SIDE 4
1FK-21741-00-00
Unavailable
10
DAMPER, LOCATING 1
1FK-21778-00-00
Unavailable
14
BOLT, BUTTON
92014-06025-00
Unavailable
15
PANEL 3 (L)
1FK-2172G-00-00
Unavailable
16
. GRILL, AIR INTAKE 1
1FK-2837N-00-00
Unavailable
17
PANEL 4 (R)
1FK-2172H-00-00
Unavailable
18
GRILL, AIR INTAKE 2
1FK-2837R-00-00
Unavailable
19
BOLT, BUTTON
92017-05012-00
Unavailable
20
COVER
1FK-2172W-00-00
Unavailable
21
CLIP
90468-03178-00
Unavailable
22
PANEL 1
1FK-2172A-01-00
Unavailable
23
PANEL 2
1FK-2172F-00-00
Unavailable
24
SCREW, PAN
98517-06020-00
Unavailable
25
WASHER, SPRING
92907-06100-00
Unavailable
26
WASHER(6TA)
92907-06600-00
Unavailable
27
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
28
WASHER, SPRING
92907-06100-00
Unavailable
29
WASHER(6TA)
92907-06600-00
Unavailable
30
COVER, SIDE 5
1FK-2171E-00-00
Unavailable
31
MOLE, SIDE COVER 5
1FK-2171T-00-00
Unavailable
32
SCREW, PAN TAP.2 SLIT
97707-40612-00
Unavailable
33
WASHER(6E1)
92907-04200-00
Unavailable
34
NUT, SPRING (26H)
90183-04027-00
Unavailable
35
COVER, SIDE 6
1FK-2171X-00-00
Unavailable
36
MOLE, SIDE COVER 5
1FK-2171T-00-00
Unavailable
37
GROMMET (5G2)
90480-12296-00
Unavailable
38
COVER, TOP
1FK-YK217-00-FH
Unavailable
38
COVER, TOP
1FK-YK217-00-P1
Unavailable
39
LEVER LOCK COMP.
1FK-2175J-00-00
Unavailable
40
BOLT, FLANGE
95817-06010-00
Unavailable
41
DAMPER
1FK-21746-00-00
Unavailable
42
MOLE 1
1FK-28345-00-00
Unavailable
43
GUIDE
1FK-2171H-00-00
Unavailable
44
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
45
SEAL 1
1FK-21732-00-00
Unavailable
46
EMBLEM 1
1FK-21781-00-00
Unavailable
47
EMBLEM 2
1FK-21782-00-00
Unavailable
48
DAMPER, LOCATING 2
1FK-21779-00-00
Unavailable
49
BRACKET 3
1FK-2172M-00-00
Unavailable
50
DAMPER
18A-24724-00-00
Unavailable
51
BOLT, HEXAGON
97017-06012-00
Unavailable
52
WASHER(6TA)
92907-06600-00
Unavailable
53
LOCK ASSY 2
1FK-21708-00-00
Unavailable
54
COVER
1FK-24796-00-00
Unavailable
55
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
56
SHAFT, LOCK
1FK-2176U-00-00
Unavailable
57
LEVER, LOCK
1FK-2175K-00-00
Unavailable
58
CIRCLIP(22K)
99080-05600-00
Unavailable
59
SPRING, LOCK
1FK-2176V-00-00
Unavailable
60
PLATE, BRIDGE
1FK-21243-01-00
Unavailable
61
BOLT, HEXAGON
97017-06012-00
Unavailable
62
WASHER, SPRING
92907-06100-00
Unavailable
63
BRACKET 1
1FK-2172K-01-00
Unavailable
64
SCREW, PAN
98507-06040-00
Unavailable
65
WASHER, SPRING
92907-06100-00
Unavailable
66
GROMMET(2GH)
90480-12475-00
Unavailable
67
COLLAR
90387-06113-00
Unavailable
68
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
69
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
70
BRACKET, COIL
3UF-21359-00-00
Unavailable
71
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
72
BOLT, HEXAGON
97017-06012-00
Unavailable
73
WASHER, SPRING
92907-06100-00
Unavailable
75
BOX, BATTERY
1FK-2177G-00-00
Unavailable
76
BOLT, WITH WASHER
90119-06152-00
Unavailable
77
TANK, RECOVERY
1FK-21871-00-00
Unavailable
78
PIPE 1
1FK-21816-00-00
Unavailable
79
CAP
26H-21875-00-00
Unavailable
80
GASKET
26H-21874-00-00
Unavailable
81
PIPE 1
26H-21816-01-00
Unavailable
82
ELBOW
26H-21828-00-00
Unavailable
83
CLIP(72X)
90467-11M08-00
Unavailable
84
PIPE, BREATHER
1FK-21826-00-00
Unavailable
85
CLIP
90467-090A2-00
Unavailable
86
DAMPER, LOCATING 3
1FK-2177M-00-00
Unavailable
87
CLAMP
5Y9-12491-00-00
Unavailable
88
PLATE, EPA 2
3JP-2179R-60-00
Unavailable
88
PLATE, EPA 1
3JP-2179V-60-00
Unavailable
89
GROMMET, WIREHARNESS
214-84153-60-00
Unavailable
