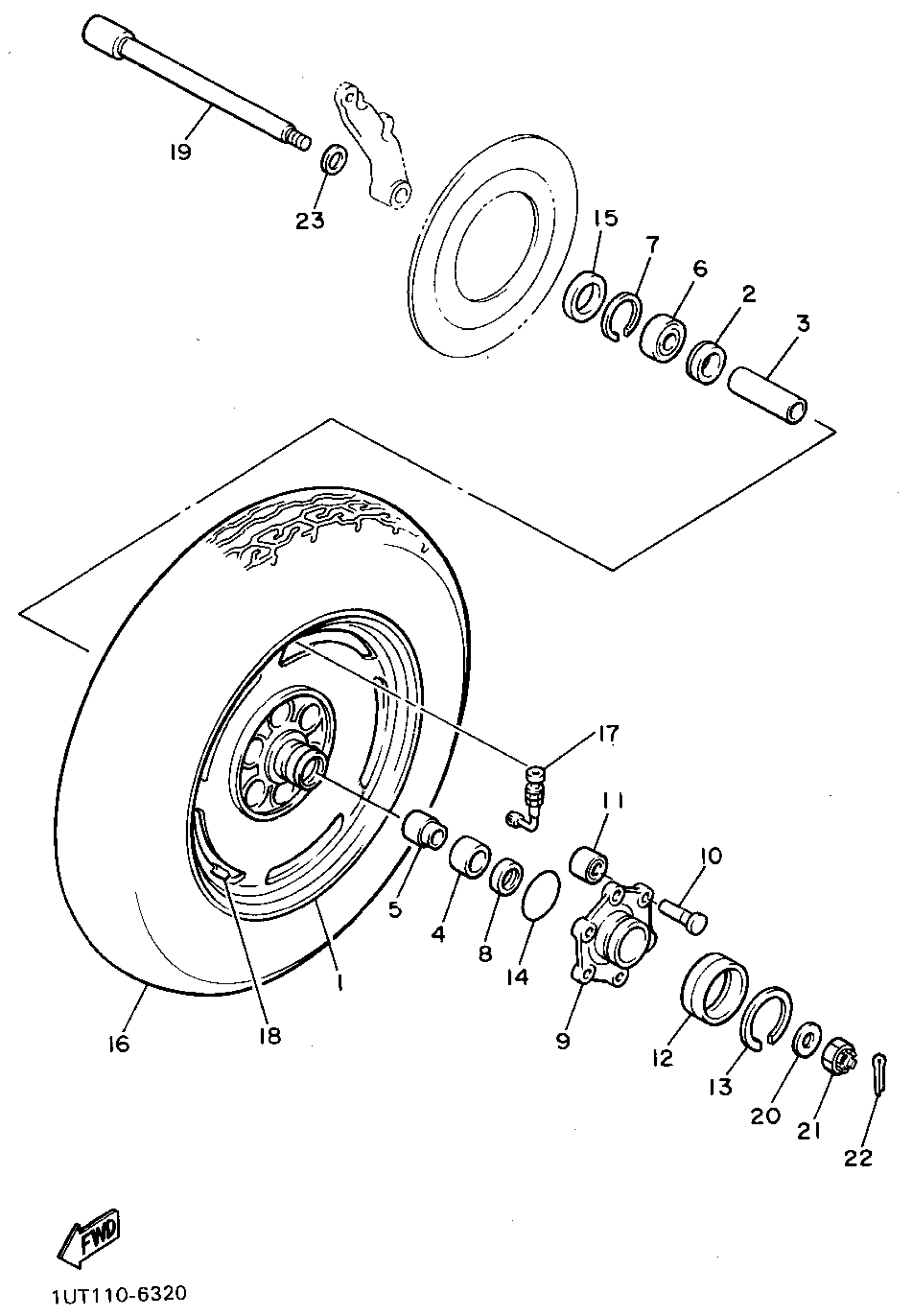

Yamaha VMX12GC (V-MAX 1200 CA) 3JPJ 1995 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

1UT-25338-01-P0

Unavailable

2

FLANGE, SPACER

2H7-25315-00-00

$7.99

3

SPACER

90560-20295-00

$30.99

4

BEARING

93311-32698-00

$73.99

5

COLLAR (26H)

90387-203H7-00

Unavailable

6

BEARING(3BC)

93306-30437-00

$66.99

7

CIRCLIP(26H)

99009-52500-00

$12.49

8

OIL SEAL (25X35X7-256)

93102-25064-00

$14.99

9

CLUTCH, HUB

26H-25366-01-00

Unavailable

10

PIN (26H)

90249-12167-00

$10.49

11

DAMPER

1FK-25364-00-00

Unavailable

12

SEAL, HUB DUST

1J7-25319-02-00

$27.99

13

CIRCLIP (647)

93440-45022-00

$11.49

14

O-RING (1J7)

93210-68347-00

Unavailable

15

OIL SEAL(3BC)

93106-40027-00

$15.99

16

TIRE(3JP)

94115-1505G-00

Unavailable

17

VALVE, RIM (2JE)

93900-00025-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

1FK-25381-00-00

Unavailable

20

WASHER, PLATE (1J7)

90201-18620-00

Unavailable

21

NUT, CASTLE

90171-18043-00

Unavailable

22

PIN, COTTER

91490-40045-00

Unavailable

23

WASHER(3JP)

92903-20600-00

Unavailable
