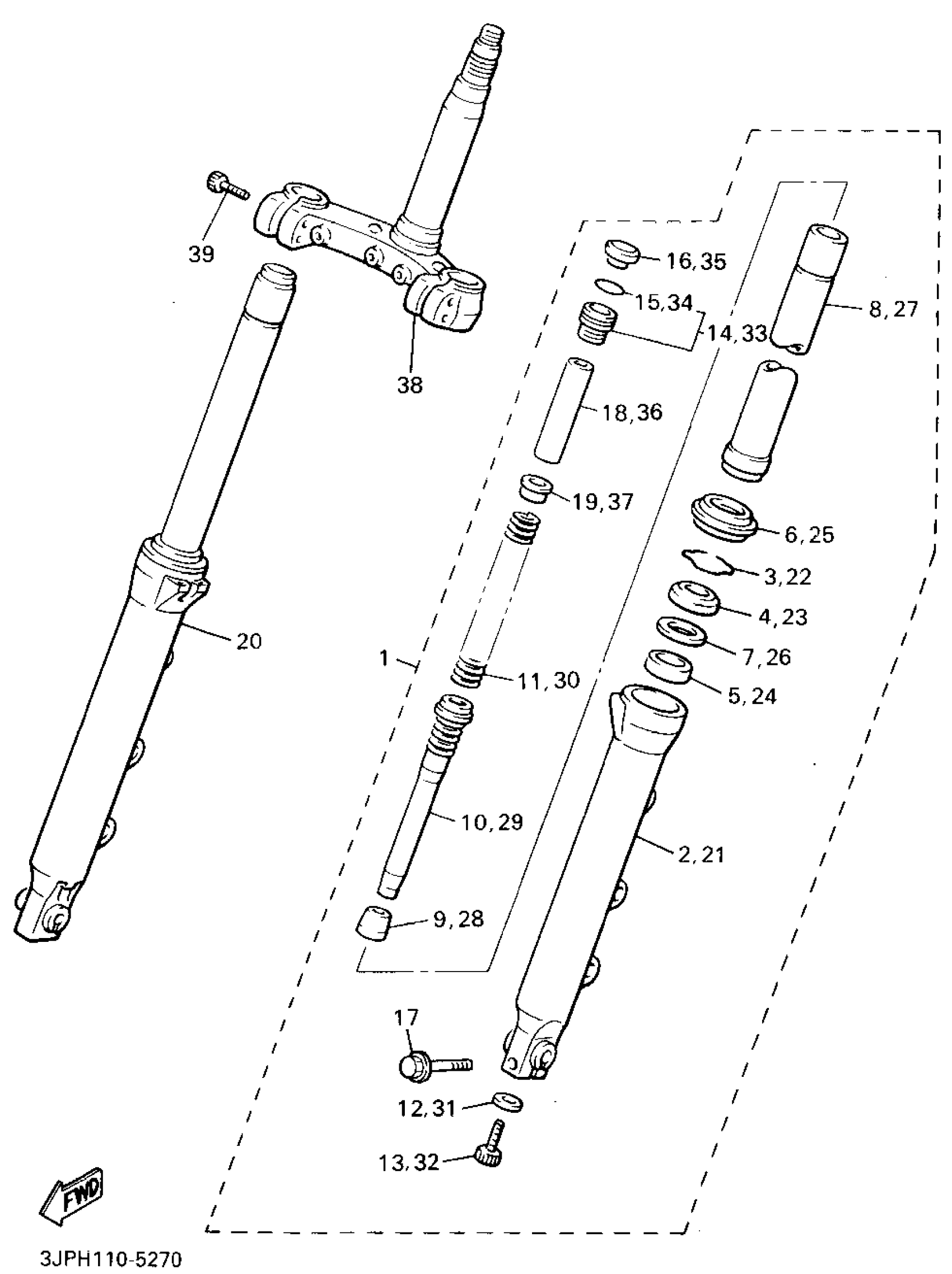

Yamaha VMX12GC (V-MAX 1200 CA) 3JPJ 1995 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

3LR-23102-10-00

Unavailable

2

. TUBE, OUTER (LEFT)

3LR-23126-00-00

Unavailable

3

RING, SNAP

4V4-23153-L0-00

$9.99

4

OIL SEAL

4PU-23145-01-00

$25.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

SEAL, DUST

4PU-23144-00-00

$24.99

7

WASHER

4V4-23146-L0-00

$6.99

8

INNER TUBE COMP.1

3LR-23110-01-00

$466.99

9

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

10

. CYLINDER COMP, FRONT FORK

3LR-23170-00-00

Unavailable

11

SPRING, FRONT FORK

3LR-23141-00-00

Unavailable

12

GASKET

4V4-23158-L0-00

$9.99

13

BOLT

4V4-23181-L0-00

$14.49

14

BOLT, CAP

3LR-23111-00-00

Unavailable

15

O-RING

4V4-23188-L1-00

$5.49

16

CAP, FRONT FORK

3LR-23168-00-00

Unavailable

17

BOLT, FLANGE

95814-08045-00

Unavailable

18

SPACER

3YF-23118-00-00

Unavailable

19

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

20

FRONT FORK ASSY (R

3LR-23103-10-00

Unavailable

21

. TUBE, OUTER (RIGHT)

3LR-23136-00-00

Unavailable

22

RING, SNAP

4V4-23153-L0-00

$9.99

23

OIL SEAL

4PU-23145-01-00

$25.99

24

METAL, SLIDE 1

5EB-23125-00-00

$32.99

25

SEAL, DUST

4PU-23144-00-00

$24.99

26

WASHER

4V4-23146-L0-00

$6.99

27

INNER TUBE COMP.1

3LR-23110-01-00

$466.99

28

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

29

. CYLINDER COMP, FRONT FORK

3LR-23170-00-00

Unavailable

30

SPRING, FRONT FORK

3LR-23141-00-00

Unavailable

31

GASKET

4V4-23158-L0-00

$9.99

32

BOLT

4V4-23181-L0-00

$14.49

33

BOLT, CAP

3LR-23111-00-00

Unavailable

34

O-RING

4V4-23188-L1-00

$5.49

35

CAP, FRONT FORK

3LR-23168-00-00

Unavailable

36

SPACER

3YF-23118-00-00

Unavailable

37

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

38

UNDER BRACKET COMP.

3LR-23340-10-00

Unavailable

39

BOLT,SOCKET

91314-08030-00

Unavailable
