- VMX12GC (V-MAX 1200 CA) 3JPJ 1995
CRANKSHAFT PISTON

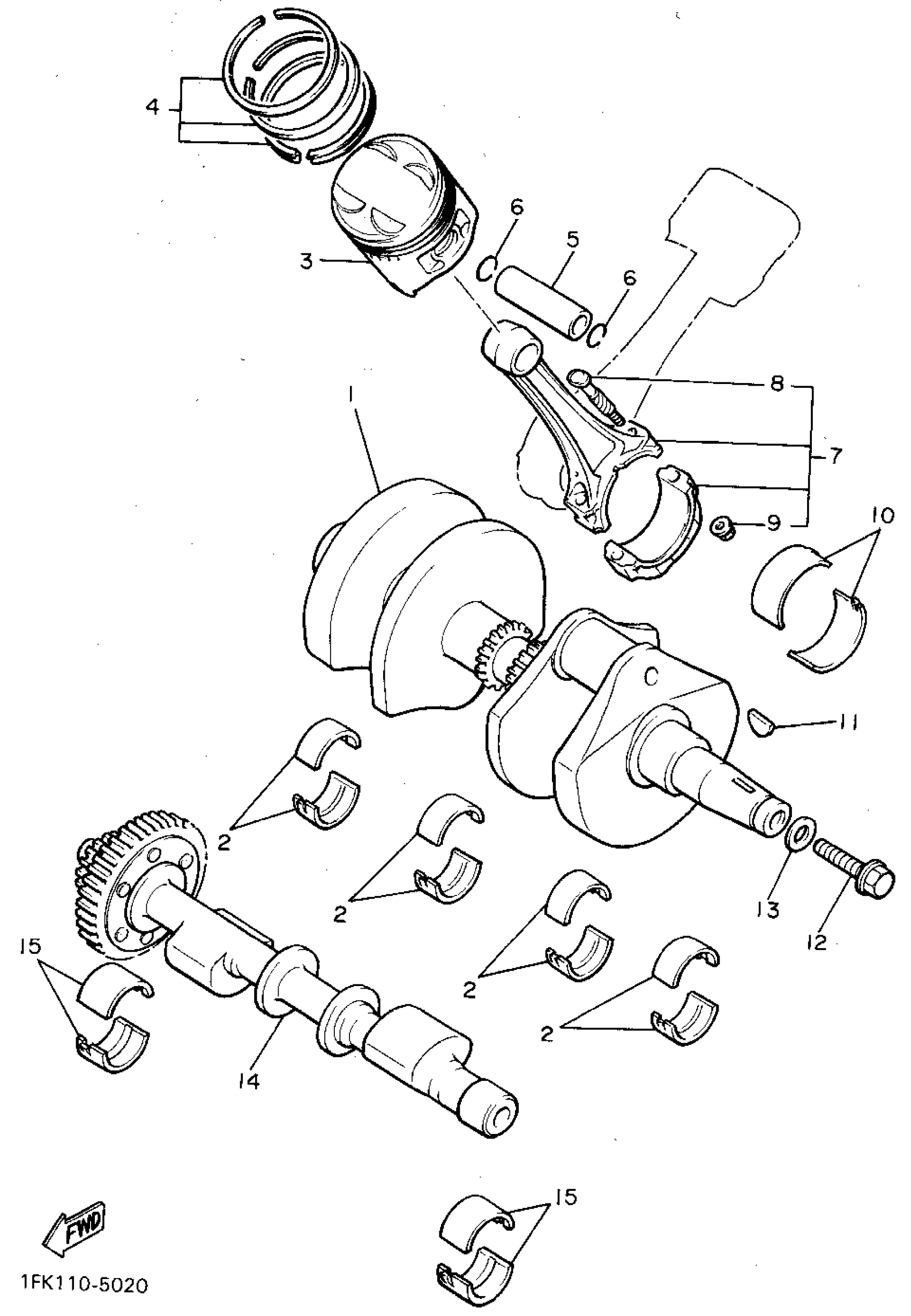

Yamaha VMX12GC (V-MAX 1200 CA) 3JPJ 1995 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSY
1FK-11400-00-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
1FK-11416-61-00
Unavailable
3
PISTON (0.25MM O/S)
1FK-11635-00-00
Unavailable
3
PISTON (0.50MM O/S)
1FK-11636-00-00
Unavailable
4
PISTON RING SET (0.25MM O/S)
1FK-11610-10-00
Unavailable
4
PISTON RING SET (2ND O/S)
1FK-11610-20-00
Unavailable
6
CIRCLIP (26H)
93450-19095-00
Unavailable
7
CONNECTING ROD ASSY
1FK-11650-01-00
Unavailable
8
BOLT, CONNECTING ROD
26H-11654-00-00
Unavailable
9
NUT (11H)
90179-08327-00
Unavailable
9
NUT (11H)
90179-08327-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-00-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-10-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-20-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-30-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-40-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
1FK-11656-50-00
Unavailable
11
KEY, WOODRUFF (26H)
90280-05029-00
Unavailable
12
BOLT, FLANGE
90105-12374-00
Unavailable
13
WASHER (838)
90201-12191-00
Unavailable
14
BALANCER ASSY
1FK-11500-10-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-02-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-12-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-22-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-32-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-42-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-52-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
26H-11413-62-00
Unavailable
