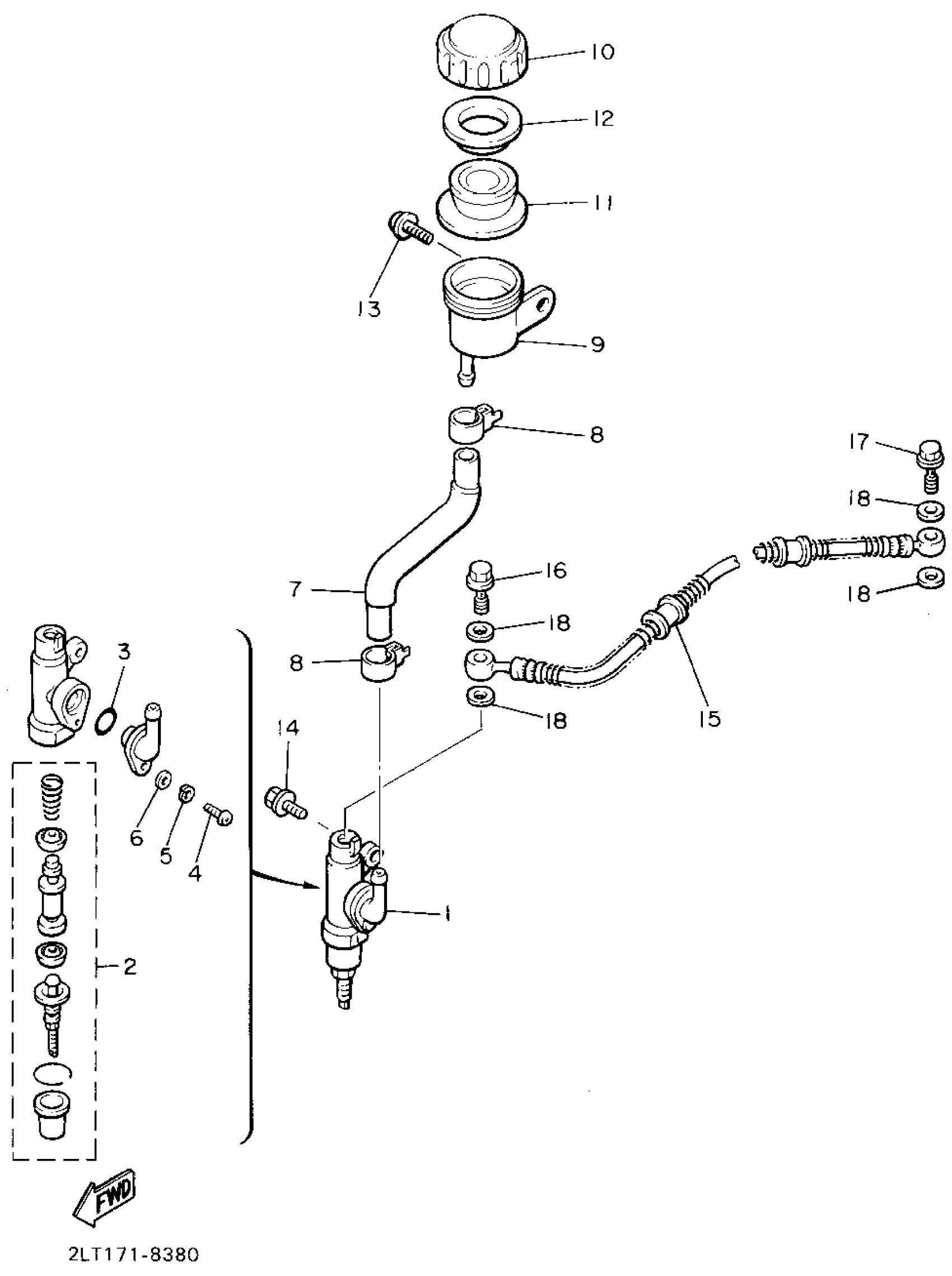

Yamaha VMX12FC (V-MAX 1200 CA) 3JPG 1994 REAR MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

1FK-25850-50-00

Unavailable

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

O-RING (22U)

93210-15566-00

$7.49

SCREW, PAN HEAD

98511-04012-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

WASHER, PLAIN (646)

92990-04600-00

$5.99

HOSE, RESERVOIR

1FK-25895-00-00

Unavailable

CLIP (5K4)

90467-14057-00

$8.49

TANK, RESERVOIR

31A-25894-01-00

$19.49

CAP, RESERVOIR

2KF-25852-50-00

$47.99

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

BUSH,DIAPHRAGM

2GU-25855-00-00

$30.99

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

BOLT, SMALL FLANGE

95027-08020-00

$8.49

BRKE,HOSE

99999-02772-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
