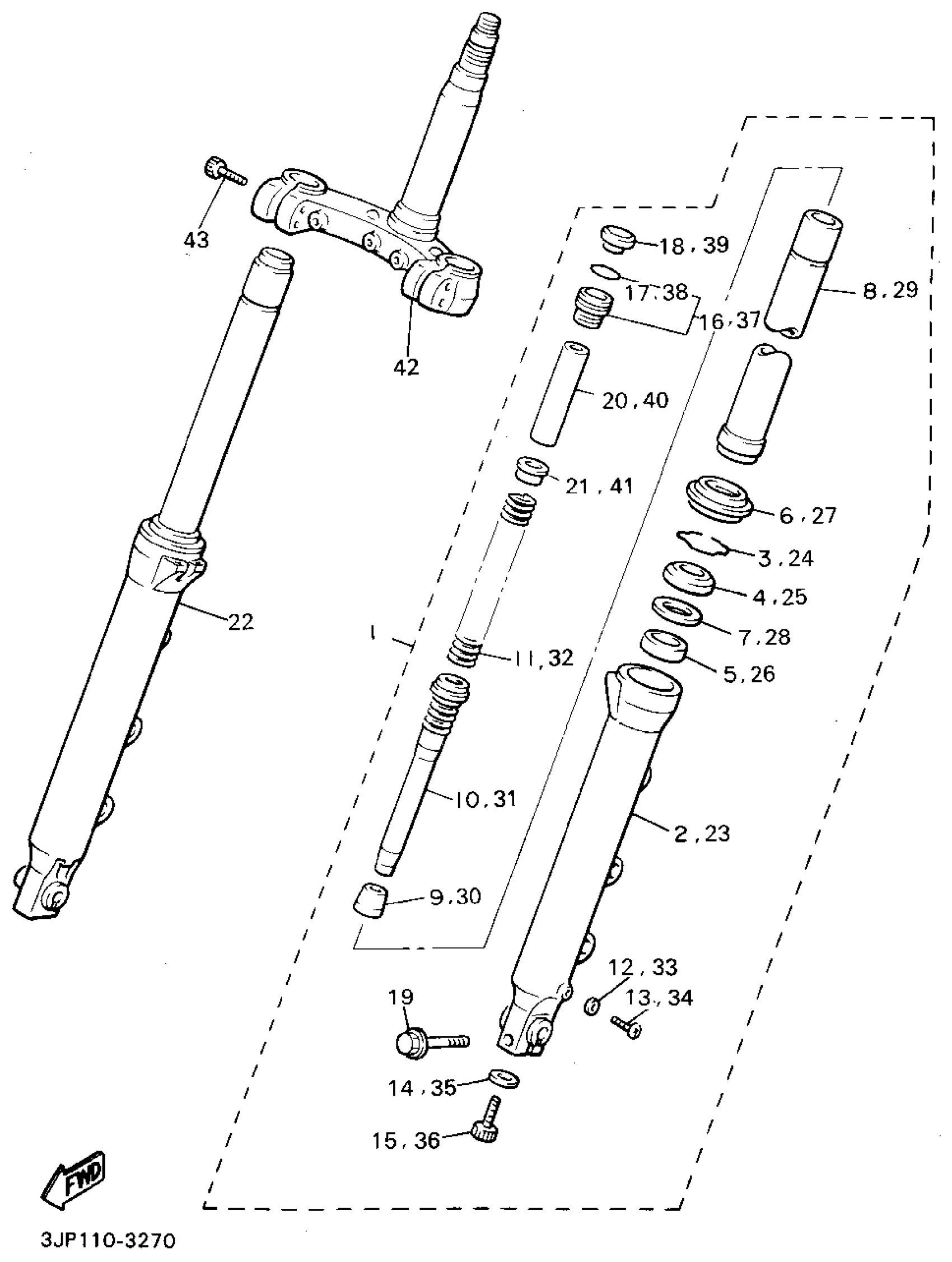

Yamaha VMX12FC (V-MAX 1200 CA) 3JPG 1994 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L
3LR-23102-10-00
Unavailable
2
. TUBE, OUTER (LEFT)
3LR-23126-00-00
Unavailable
9
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
11
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
13
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
16
BOLT, CAP
3LR-23111-00-00
Unavailable
17
O-RING
4V4-23188-L1-00
Unavailable
18
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
19
BOLT, FLANGE
95814-08045-00
Unavailable
20
SPACER
3YF-23118-00-00
Unavailable
21
SEAT, SPRING UPPER
4V4-23142-L0-00
Unavailable
22
FRONT FORK ASSY (R
3LR-23103-10-00
Unavailable
23
. TUBE, OUTER (RIGHT)
3LR-23136-00-00
Unavailable
30
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
31
. CYLINDER COMP, FRONT FORK
3LR-23170-00-00
Unavailable
32
SPRING, FRONT FORK
3LR-23141-00-00
Unavailable
34
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
37
BOLT, CAP
3LR-23111-00-00
Unavailable
38
O-RING
4V4-23188-L1-00
Unavailable
39
CAP, FRONT FORK
3LR-23168-00-00
Unavailable
40
SPACER
3YF-23118-00-00
Unavailable
41
SEAT, SPRING UPPER
4V4-23142-L0-00
Unavailable
42
UNDER BRACKET COMP.
3LR-23340-10-00
Unavailable
43
BOLT,SOCKET
91314-08030-00
Unavailable
