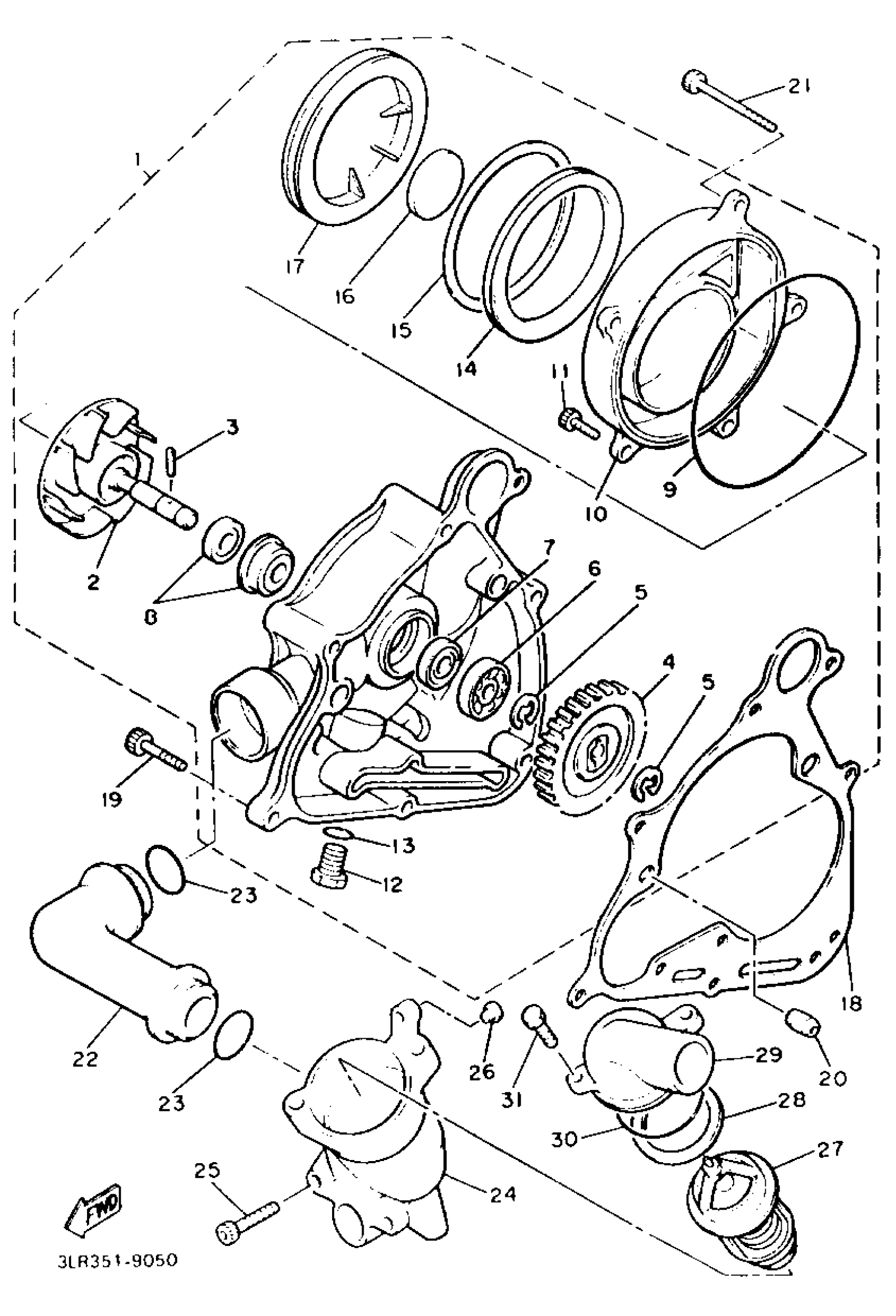

Yamaha VMX12EC (V-MAX 1200 CA) 3JPD 1993 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

1FK-12420-10-00

Unavailable

2

INPELLER SHAFT ASSY

1FK-12450-00-00

$122.99

3

PIN, DOWEL

93603-14026-00

$8.49

4

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

5

CIRCLIP(10W)

99009-10400-00

$4.73

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

7

OIL SEAL (J10)

93101-10090-00

$8.49

8

SEAL, MECHANICAL

11H-12438-10-00

$62.99

9

O-RING (26H)

93211-16591-00

$15.99

10

. COVER, HOUSING

1FK-12422-00-00

Unavailable

11

BOLT,SOCKET

91317-06016-00

$1.25

12

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

13

GASKET

214-11198-01-00

$3.17

14

DAMPER 4

26H-15337-01-00

Unavailable

15

CLIP (26H)

90468-98132-00

$11.49

16

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

Unavailable

17

COVER, CHAIN CASE 2

1FK-15428-00-00

Unavailable

18

GASKET, WATER PUMP

3JP-12449-02-00

Unavailable

19

BOLT,SOCKET

91317-06025-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

BOLT, SOCKET

91317-06065-00

Unavailable

22

JOINT

1FK-12446-00-00

Unavailable

23

O-RING(1KT)

93210-27778-00

Unavailable

24

HOUSING, THERMOSTAT

1FK-12417-00-00

Unavailable

25

BOLT,SOCKET

91317-06020-00

Unavailable

26

PLUG (13K)

90338-06134-00

Unavailable

27

THERMOSTAT ASSY

99999-03066-00

Unavailable

28

SEAL, THERMOSTAT

11H-12412-00-00

Unavailable

29

COVER, THERMOSTAT

26H-12413-00-00

Unavailable

30

O-RING(1EY)

93210-43713-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(47X)

90110-06084-00

Unavailable
