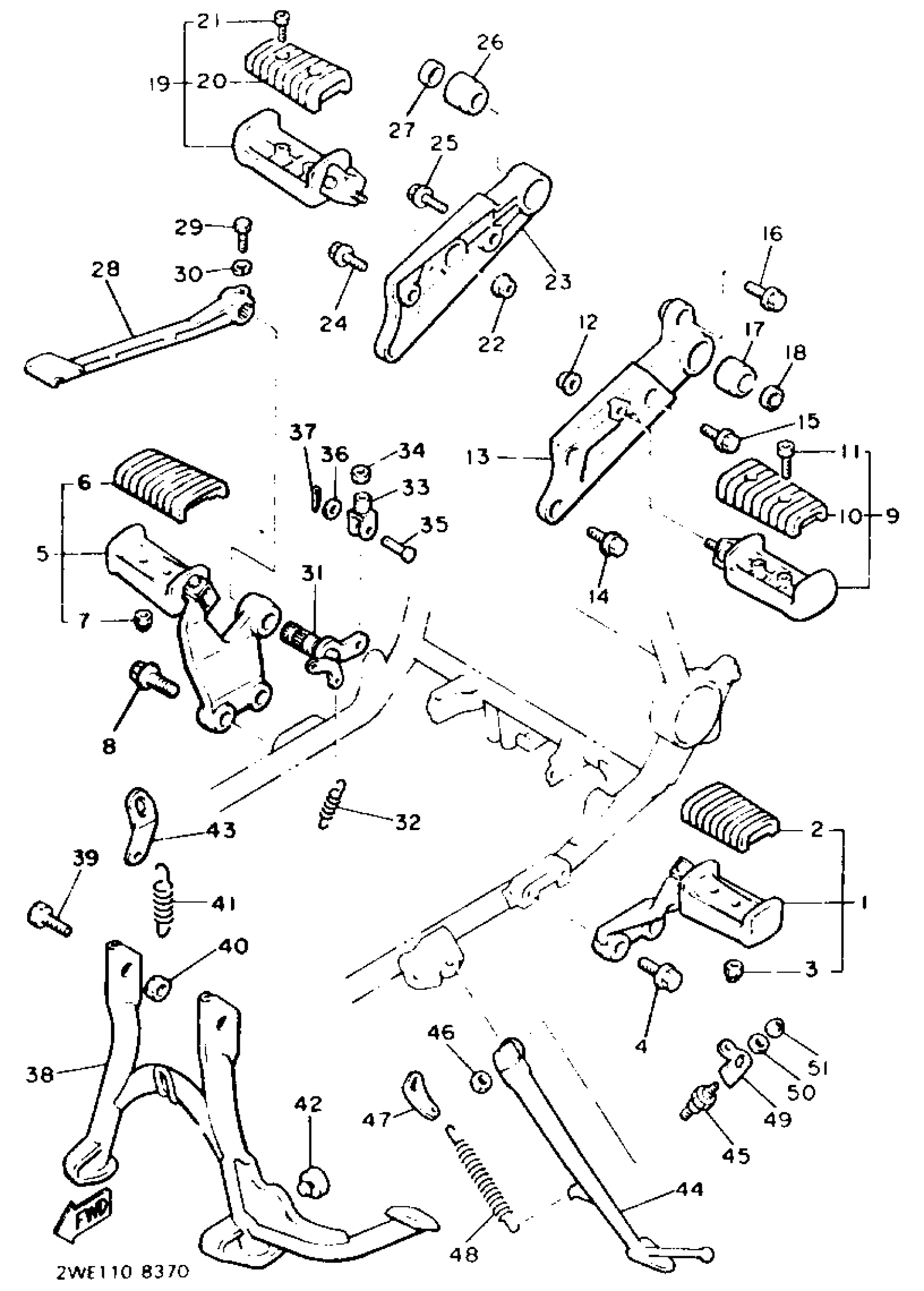

Yamaha VMX12EC (V-MAX 1200 CA) 3JPD 1993 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSEMBLY (LEFT)

1UT-27410-00-93

Unavailable

2

COVER, FOOTREST

1NH-27413-00-00

$45.99

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

BOLT, SMALL FLANGE

95024-10030-00

$9.49

5

FRONT FOOTREST ASSEMBLY (RIGHT)

1UT-27420-00-93

Unavailable

6

COVER, FOOTREST

1NH-27413-00-00

$45.99

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

BOLT, SMALL FLANGE

95024-10030-00

$9.49

9

REAR FOOTREST ASSY 1

1UT-27430-01-00

Unavailable

10

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

11

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

12

NUT, FLANGE(3BM)

95704-10500-00

$4.29

13

BRACKET 2

1FK-27442-00-00

Unavailable

14

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

15

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

16

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

17

DAMPER, FOOTREST

26H-27414-00-00

Unavailable

18

STOPPER

26H-2743E-00-00

Unavailable

19

REAR FOOTREST ASSY 2

1UT-27440-01-00

Unavailable

20

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

21

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

22

NUT, FLANGE(3BM)

95704-10500-00

$4.29

23

BRACKET 3

1FK-27443-00-00

Unavailable

24

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

25

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

26

DAMPER, FOOTREST

26H-27414-00-00

Unavailable

27

STOPPER

26H-2743E-00-00

Unavailable

28

PEDAL, BRAKE

1FK-27211-00-93

Unavailable

29

BOLT (1J7)

90109-06468-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

SHAFT, BRAKE PEDAL

1FK-27212-00-00

Unavailable

32

SPRING, TENSION (23X)

90506-18305-00

Unavailable

33

JOINT

47X-27222-00-00

Unavailable

34

. NUT

95380-08700-00

Unavailable

35

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

36

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

37

PIN, COTTER

91490-16020-00

Unavailable

38

STAND, MAIN

1UT-27111-01-R4

Unavailable

39

BOLT(1TX)

90109-101E6-00

Unavailable

40

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

41

SPRING, TENSION (4L0)

90506-45222-00

Unavailable

42

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

43

LINK, MAIN STAND

1FK-27115-00-00

Unavailable

44

STAND, SIDE

1FK-27311-00-R4

Unavailable

45

BOLT(1FK)

90109-107A2-00

Unavailable

46

NUT, U

90185-10037-00

Unavailable

47

LINK, SIDE STAND

1FK-27315-00-00

Unavailable

48

SPRING, TENSION (498)

90507-29019-00

Unavailable

49

HOOK, SIDE STAND

1FK-27352-00-00

Unavailable

50

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

51

NUT, SELF-LOCKING

95617-06100-00

$8.49
