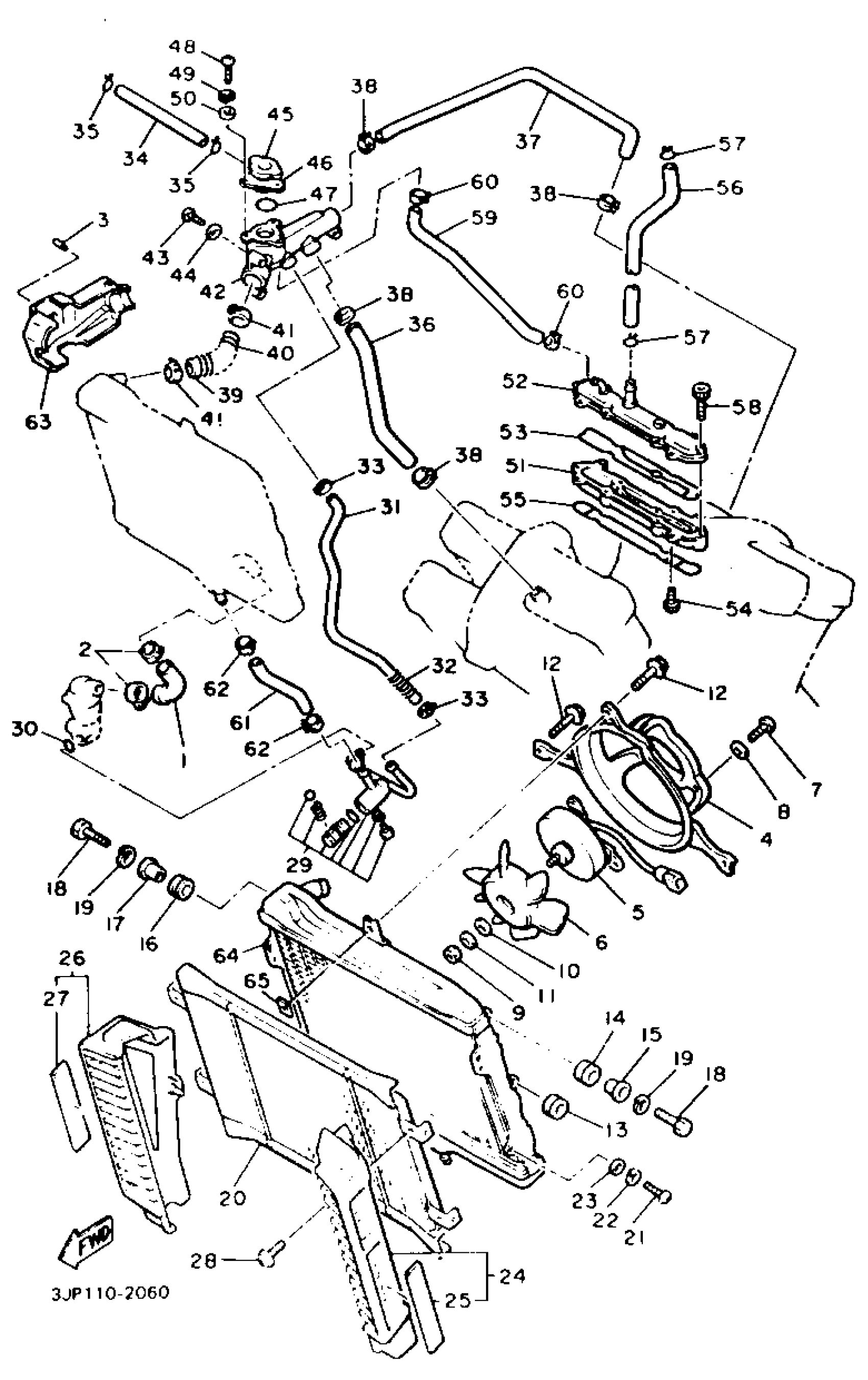

Yamaha VMX12EC (V-MAX 1200 CA) 3JPD 1993 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 3

1FK-12578-00-00

$22.99

2

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

3

PLUG (32N)

90338-05151-00

$2.02

4

AIR SHROUD ASSY

1FK-12620-00-00

Unavailable

5

MOTOR ASSY

26H-12630-00-00

Unavailable

6

FAN

26H-12611-00-00

$108.99

7

SCREW, PAN HEAD (7G3)

98580-05008-00

$7.49

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

NUT, HEXAGON (663)

95380-05600-00

$8.49

10

WASHER

11H-12673-00-00

Unavailable

11

WASHER, TOOTH

92990-05300-00

Unavailable

12

BOLT, WITH WASHER

90119-06242-00

$7.49

13

GROMMET (431)

90480-14052-00

$5.60

14

GROMMET (4L0)

90480-18276-00

$8.49

15

COLLAR 8111266500

90387-07037-00

$7.49

16

GROMMET (4L0)

90480-19283-00

Unavailable

17

COLLAR(735)

90387-06033-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

COVER, RADIATOR

1FK-12467-00-00

Unavailable

21

SCREW, PAN

98517-05012-00

Unavailable

22

WASHER(3SX)

92907-05100-00

Unavailable

23

WASHER(1RW)

92907-05600-00

Unavailable

24

RADIATOR COVER ASSY

1FK-1240J-00-00

Unavailable

25

PLATE

1FK-12535-00-00

Unavailable

26

RADIATOR COVER ASSY 2

1FK-1240K-00-00

Unavailable

27

PLATE 2

1FK-12537-00-00

Unavailable

28

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

29

DRAIN COCK ASSY.

1FK-12560-01-00

Unavailable

30

O-RING (26H)

93210-14579-00

Unavailable

31

PIPE, BYPASS

1FK-12566-00-00

Unavailable

32

SPRING, COMPRESSION

90501-106A4-00

Unavailable

33

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

34

HOSE (L1500)

90445-090F6-00

Unavailable

35

CLIP 101235600

90467-08003-00

Unavailable

36

HOSE 1

1FK-12576-00-00

Unavailable

37

HOSE 2

1FK-12577-00-00

Unavailable

38

CLIP (10V)

90467-23067-00

Unavailable

39

HOSE 4

1FK-12579-00-00

Unavailable

40

SPRING, COMPRESSION

90501-106A5-00

Unavailable

41

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

42

JOINT

1FK-12479-01-00

Unavailable

43

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable

45

CAP, RADIATOR

4FL-12462-00-00

Unavailable

46

SUPT, FILLER NECK

1FK-12591-00-00

Unavailable

47

O-RING(1KT)

93210-27778-00

Unavailable

48

SCREW, PAN HEAD

98580-06016-00

Unavailable

49

WASHER, SPRING

92995-06100-00

Unavailable

50

WASHER, PLAIN (646)

92990-06600-00

Unavailable

51

COVER 1

1FK-1246A-01-00

Unavailable

52

COVER 2

1FK-1246E-01-00

Unavailable

53

GASKET, HOUSING COVER 2

26H-12428-00-00

Unavailable

54

BOLT,SOCKET

91317-06016-00

Unavailable

55

GASKET, HOUSING COVER 1

26H-12427-00-00

Unavailable

56

PIPE, BREATHER 1

1FK-11166-00-00

Unavailable

57

CLIP (371)

90467-14015-00

Unavailable

58

BOLT,SOCKET

91317-06040-00

Unavailable

59

HOSE, 6

1FK-12589-00-00

Unavailable

60

CLIP(3BM)

90467-10135-00

Unavailable

61

HOSE 5

26H-12588-01-00

Unavailable

62

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

63

COVER 7

1FK-1246K-00-00

Unavailable

64

RADIATOR ASSY

1FK-12461-00-00

Unavailable

65

PLATE

1AA-12535-00-00

Unavailable
