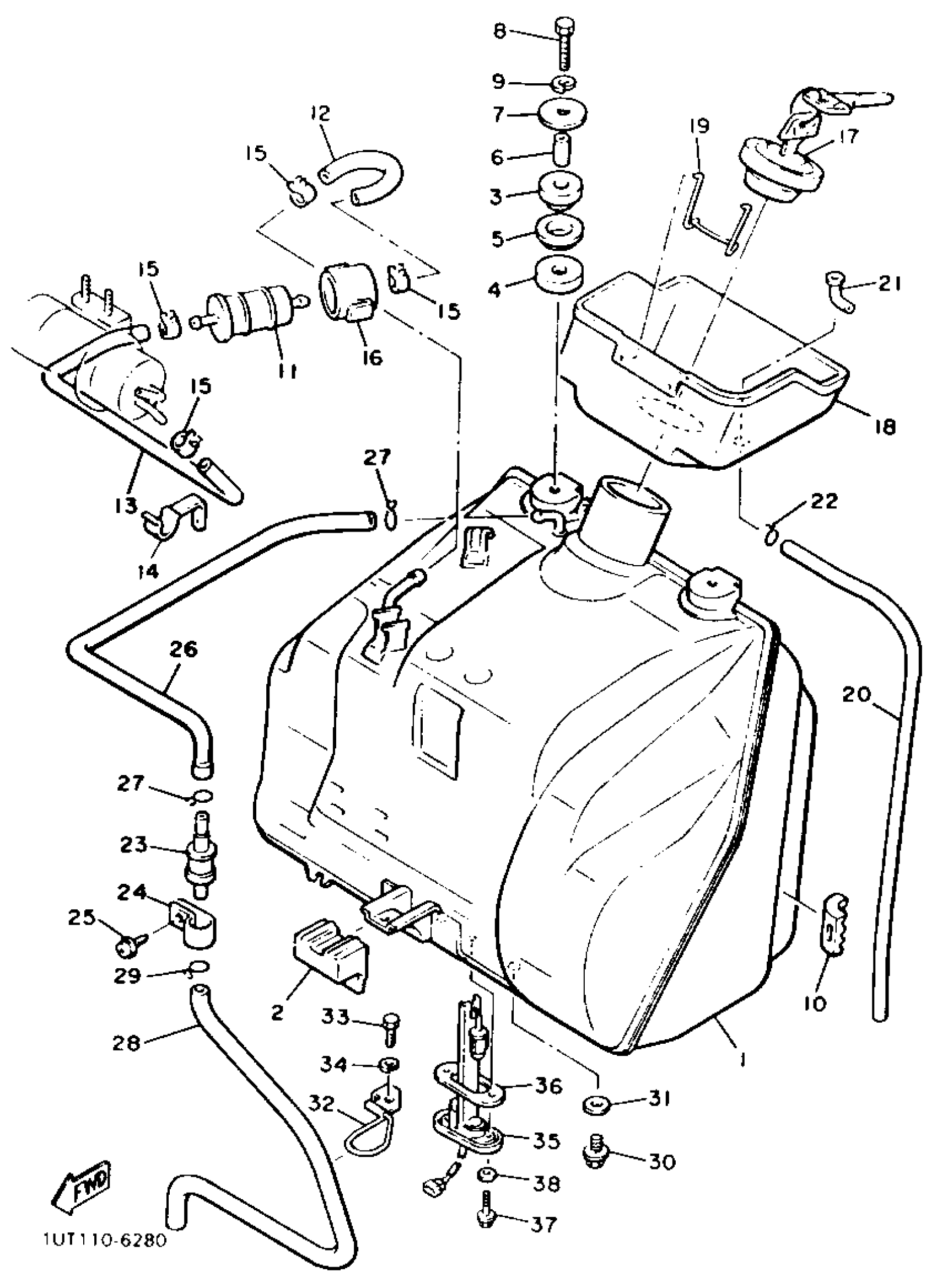

Yamaha VMX12EC (V-MAX 1200 CA) 3JPD 1993 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

FUEL TANK COMP.

1FK-24110-11-33

$289.99

2

DAMPER, LOCATING 1

1FK-24181-00-00

Unavailable

3

DAMPER, LOCATING 2

1FK-24182-00-00

Unavailable

4

DAMPER, SEAT

23T-24724-01-00

$6.99

5

WASHER, SPECIAL

1FK-24186-00-00

$5.49

6

COLLAR

90387-06387-00

Unavailable

7

WASHER (23T)

90201-065G8-00

$8.49

8

BOLT, HEXAGON

97017-06030-00

$3.61

9

WASHER, SPRING

92907-06100-00

$4.25

10

DAMPER, LOCATING 4

1FK-24184-00-00

Unavailable

11

FILTER ASSY

1FK-24560-10-00

$32.99

12

PIPE 4

1FK-24314-00-00

Unavailable

13

PIPE 5

1FK-24315-00-00

Unavailable

14

CLAMP(6R3)

90464-13M34-00

Unavailable

15

CLIP(3GM)

90467-12124-00

$3.35

16

BRACKET, FILTER

1FK-24566-00-00

Unavailable

17

CAP ASSY

54K-24602-10-00

Unavailable

18

COVER, FILLER

1FK-2414A-00-00

Unavailable

19

SPRING

1FK-24393-00-00

Unavailable

20

HOSE (L1500)

90445-084J0-00

Unavailable

21

PIPE, JOINT 1

1FK-24376-00-00

Unavailable

22

CLIP (16G)

90467-08021-00

Unavailable

23

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

24

CLAMP

90464-15014-00

Unavailable

25

SCREW, TAPPING(3JP)

97707-50612-00

Unavailable

26

PIPE, FUEL 1

1FK-24311-02-00

Unavailable

27

CLIP

90467-100A1-00

Unavailable

28

HOSE (L730)

90445-105K7-00

Unavailable

30

BOLT, FLANGE

95817-08012-00

Unavailable

31

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

32

HOLDER

1FK-2419A-00-00

Unavailable

33

BOLT, HEXAGON

97017-06016-00

Unavailable

34

WASHER, SPRING

92907-06100-00

$4.25

35

SENDER UNIT ASSY, FUEL METER

1FK-85752-02-00

Unavailable

36

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

37

SCREW 256241430000

90149-06011-00

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable
