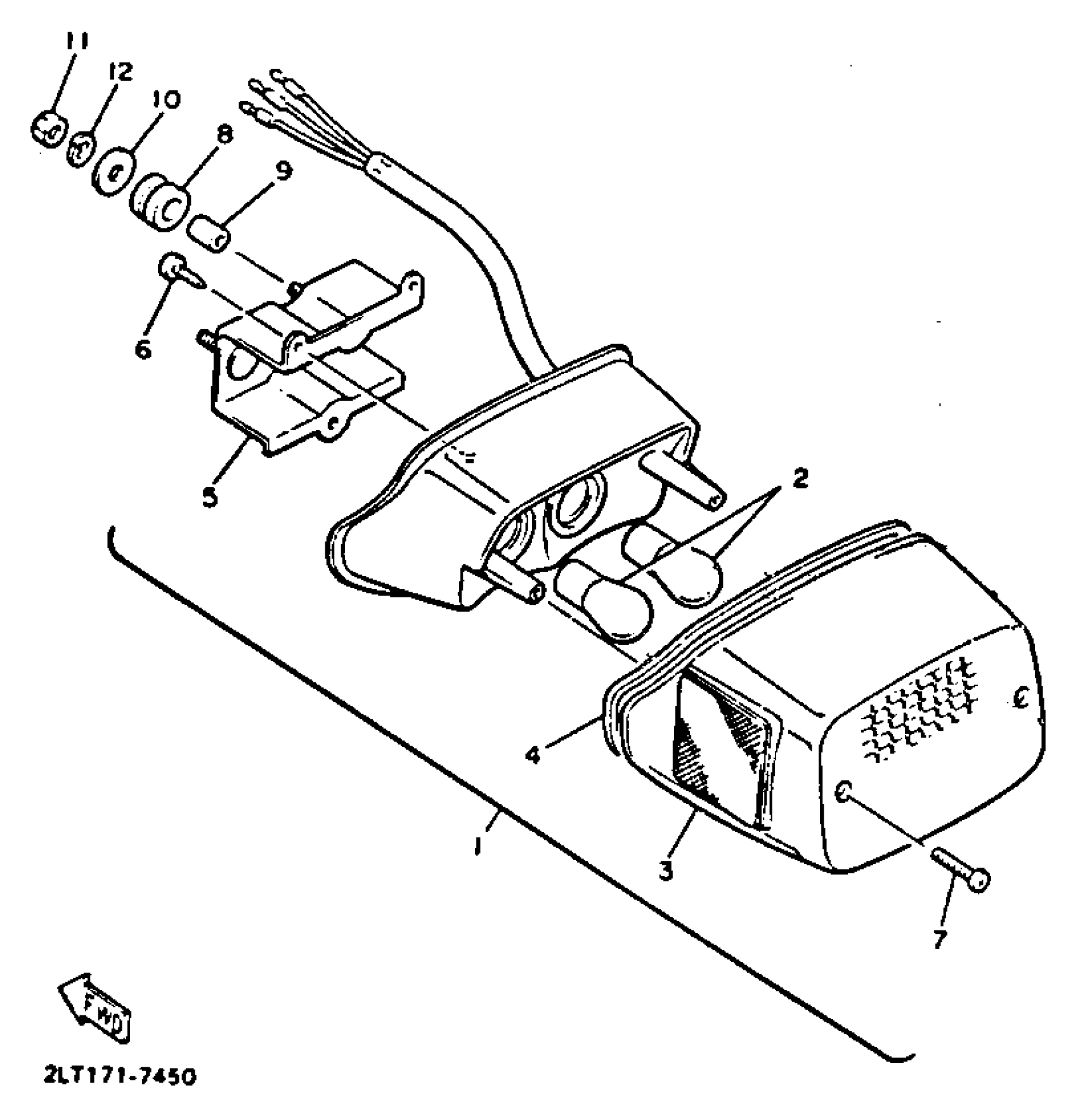

Yamaha VMX12DC (V-MAX 1200 CA) 3JPA 1992 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

1FK-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

3

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

4

SEAL

1VJ-14462-00-00

$15.32

5

BRACKET, TAILLIGHT

1FK-84702-00-00

Unavailable

6

SCREW, TAPPING

97780-40116-00

$3.58

7

SCREW, TAPPING(7G6)

97780-40525-00

$6.05

8

GROMET (3X3)

90480-14229-00

$5.87

9

COLLAR (J10)

90387-06026-00

$6.59

10

WASHER, PLATE

90201-06380-00

$1.49

11

NUT, HEXAGON

95380-06600-00

$4.01

12

WASHER, SPRING

92995-06100-00

$2.83
