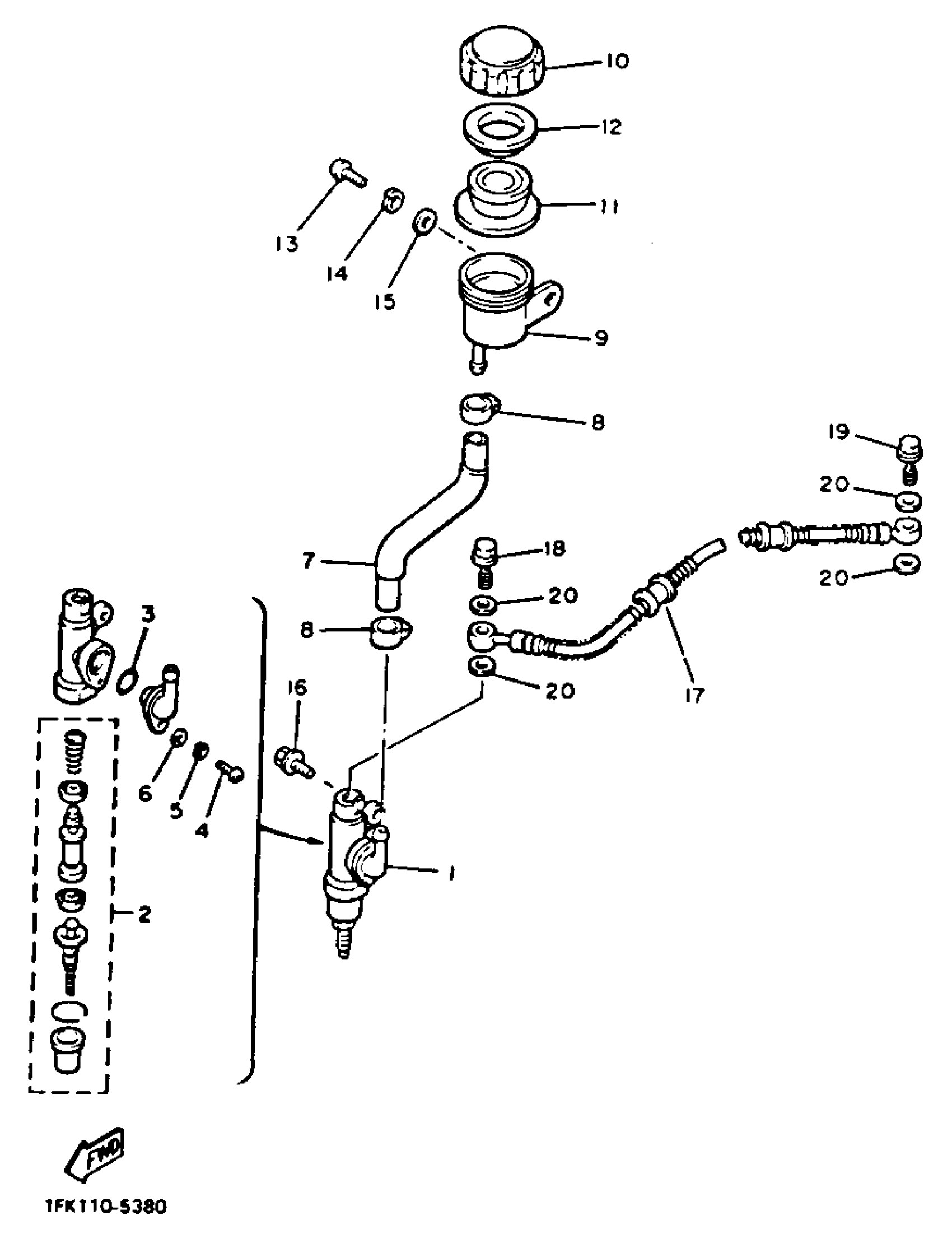

Yamaha VMX12DC (V-MAX 1200 CA) 3JPA 1992 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

1FK-25850-50-00

Unavailable

2

CYLINDER KIT, MASTER

1FK-W0042-50-00

$60.49

3

O-RING (22U)

93210-15566-00

$5.50

4

SCREW, PAN HEAD

98511-04012-00

Unavailable

5

YBS67-4 WASHER, SPRING

92990-04100-00

$1.49

6

WASHER, PLAIN (646)

92990-04600-00

$1.49

7

HOSE, RESERVOIR

1FK-25895-00-00

Unavailable

8

CLIP (5K4)

90467-14057-00

$7.18

9

TANK, RESERVOIR

31A-25894-01-00

$16.55

10

CAP, RESERVOIR

2KF-25852-50-00

$40.85

11

DIAPHRAGM, RESERVER

360-25854-01-00

$19.89

12

BUSH,DIAPHRAGM

2GU-25855-00-00

$24.30

13

SCREW PAN HEAD

98580-06020-00

$6.08

14

WASHER, SPRING

92995-06100-00

$2.83

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$1.49

16

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

17

BRKE,HOSE

99999-02772-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable
