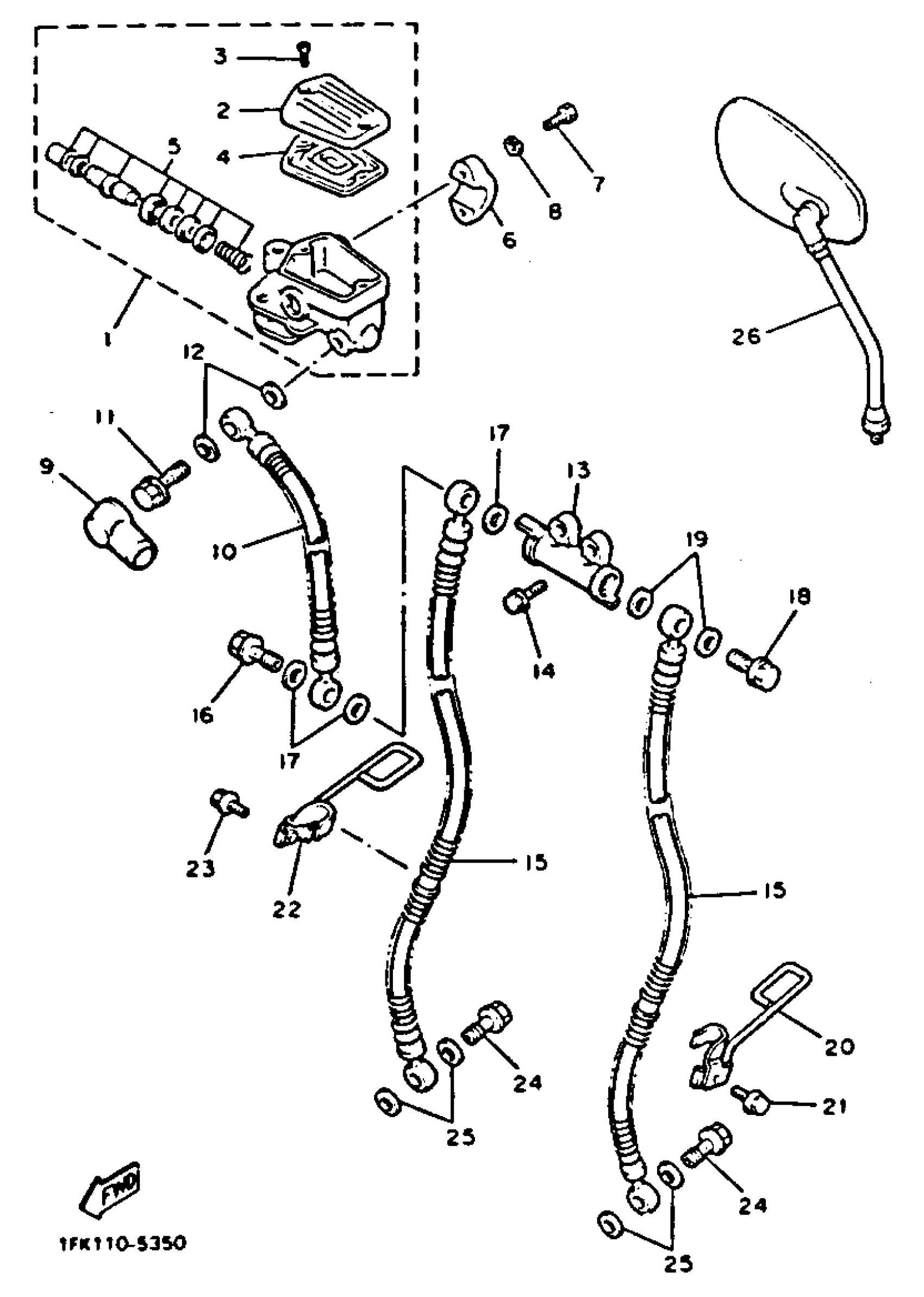

Yamaha VMX12DC (V-MAX 1200 CA) 3JPA 1992 FRONT MASTER CYLINDER 1 Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$22.15

3

SCREW, FLAT

98707-04012-00

$1.49

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$28.47

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$21.55

7

BOLT,SOCKET

91317-06025-00

$1.95

8

WASHER, SPRING

92907-06100-00

$1.49

9

BOOT, MASTER CYLINDER

4L0-25862-01-00

$6.08

10

HOSE,BRAKE 1

99999-02773-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

$8.43

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

JOINT

42H-25885-01-00

Unavailable

14

BOLT,SOCKET HEAD

91314-06020-00

$2.02

15

HOSE,BRAKE 2

99999-02732-00

Unavailable

16

BOLT, UNION

90401-10038-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

$8.43

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRAKE HOSE 1

55R-25875-00-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

22

HOLDER, BRAKE HOSE 2

55R-25876-00-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

$8.43

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

REAR VIEW MIRROR ASSY (RIGHT)

1AA-26290-10-00

Unavailable
