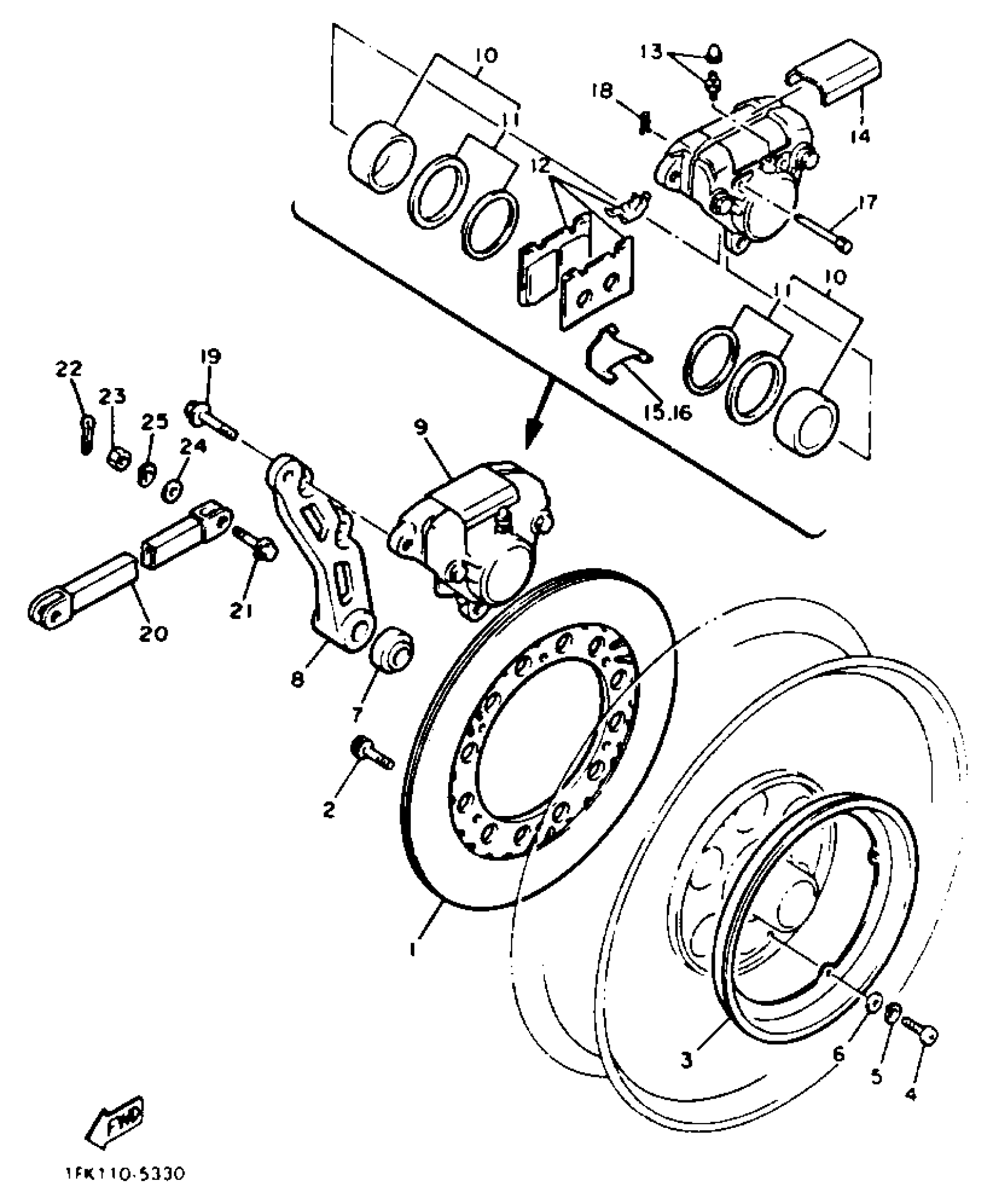

Yamaha VMX12BC (V-MAX 1200 CA) 3JP8 1991 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

2HY-25831-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

COVER, PLATE

1FK-25327-00-00

Unavailable

4

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

WASHER, PLAIN (646)

92990-05600-00

$0.80

7

COLLAR (26H)

90387-200J2-00

$31.99

8

BRACKET, CALIPER

1FK-25819-00-00

Unavailable

9

CALIPER ASSEMBLY

1FK-25810-52-00

Unavailable

10

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

11

PISTON SEAL KIT

31A-W0047-00-00

$57.99

12

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

COVER, DUST

1FK-25836-01-00

$22.99

15

SHIM, CALIPER

1FK-25827-01-00

$16.49

16

SHIM, CALIPER

1FK-25828-01-00

Unavailable

17

PIN, PAD

3HE-25924-00-00

Unavailable

18

CLIP, PAD PIN

3GM-25925-00-00

Unavailable

19

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

20

BAR, TENSION

36Y-25371-00-00

Unavailable

21

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
