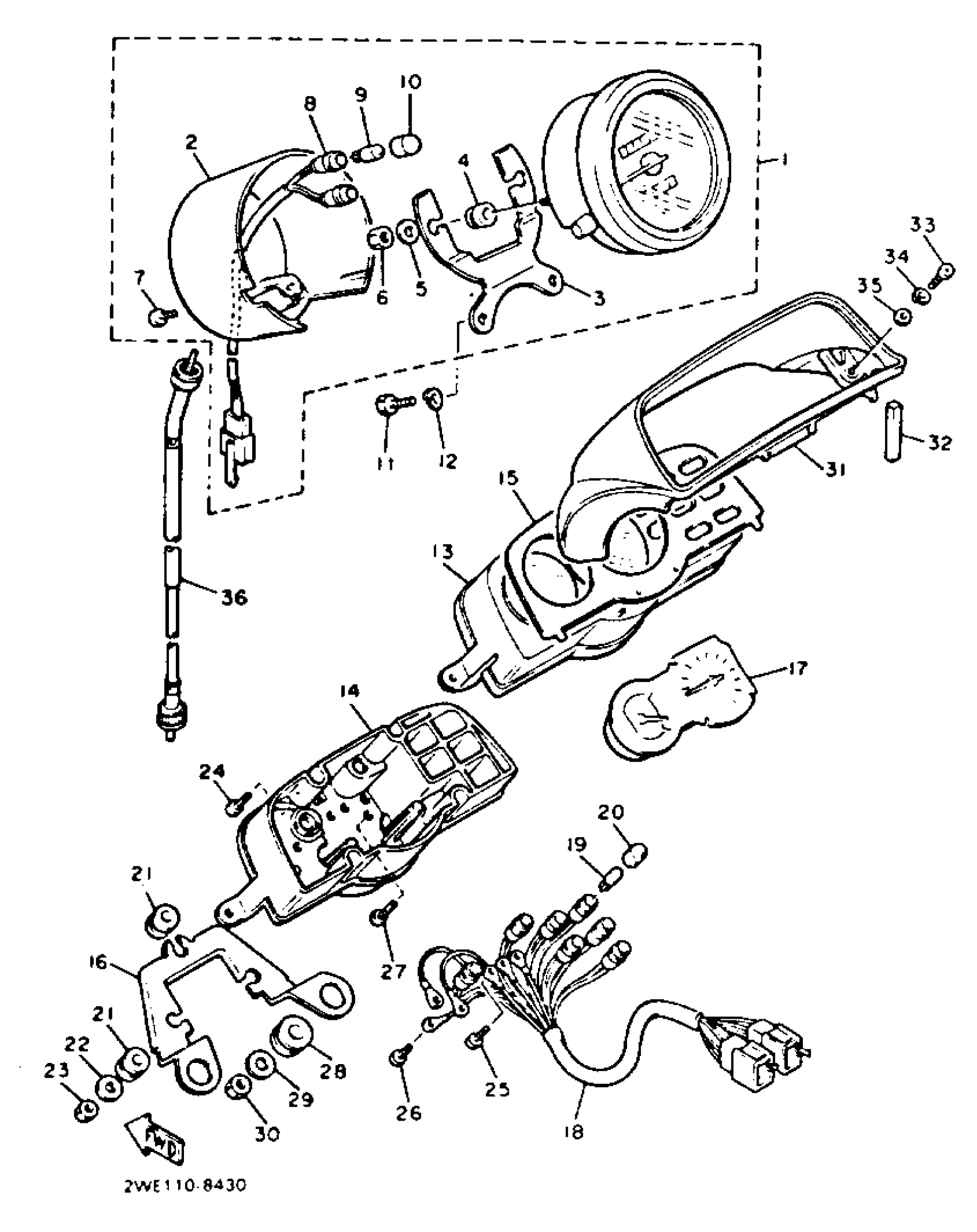

Yamaha VMX12BC (V-MAX 1200 CA) 3JP8 1991 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSY
3LR-83570-02-00
Unavailable
3
BRACKET, METER
1FK-83519-00-00
Unavailable
4
DAMPER
1FG-83523-00-00
Unavailable
5
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
8
. SOCKET CORD ASSY
1FK-83509-00-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
CASE, UPPER
3LR-8353G-00-00
Unavailable
14
CASE, INNER
1FK-8353H-00-00
Unavailable
15
PANEL,METER
3LR-83611-00-00
Unavailable
16
BRACKET, TACHOMETER
1FK-83545-00-00
Unavailable
17
TACHOMETER ASSY
3LR-83540-00-00
Unavailable
18
SOCKET CORD ASSEMBLY
(3UF-83520-00-00)
Unavailable
21
DAMPER
1FK-83523-00-00
Unavailable
22
WASHER PLATE 803835240000
90201-05032-00
Unavailable
24
SCREW, TAPPING
90164-04005-00
Unavailable
25
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
26
SCREW, WITH WASHER
90159-03044-00
Unavailable
27
SCREW, WITH WASHER
90159-04043-00
Unavailable
28
GROMET (3X3)
90480-14229-00
Unavailable
29
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
30
NUT, HEXAGON
95380-06600-00
Unavailable
31
COVER, METER
2WE-83559-00-00
Unavailable
32
DAMPER 2
1FK-83526-00-00
Unavailable
33
SCREW, PAN HEAD
98517-04016-00
Unavailable
34
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
35
WASHER, PLAIN (646)
92990-04600-00
Unavailable
36
SPEEDOMETER CABLE ASSY
1FK-83550-11-00
Unavailable
