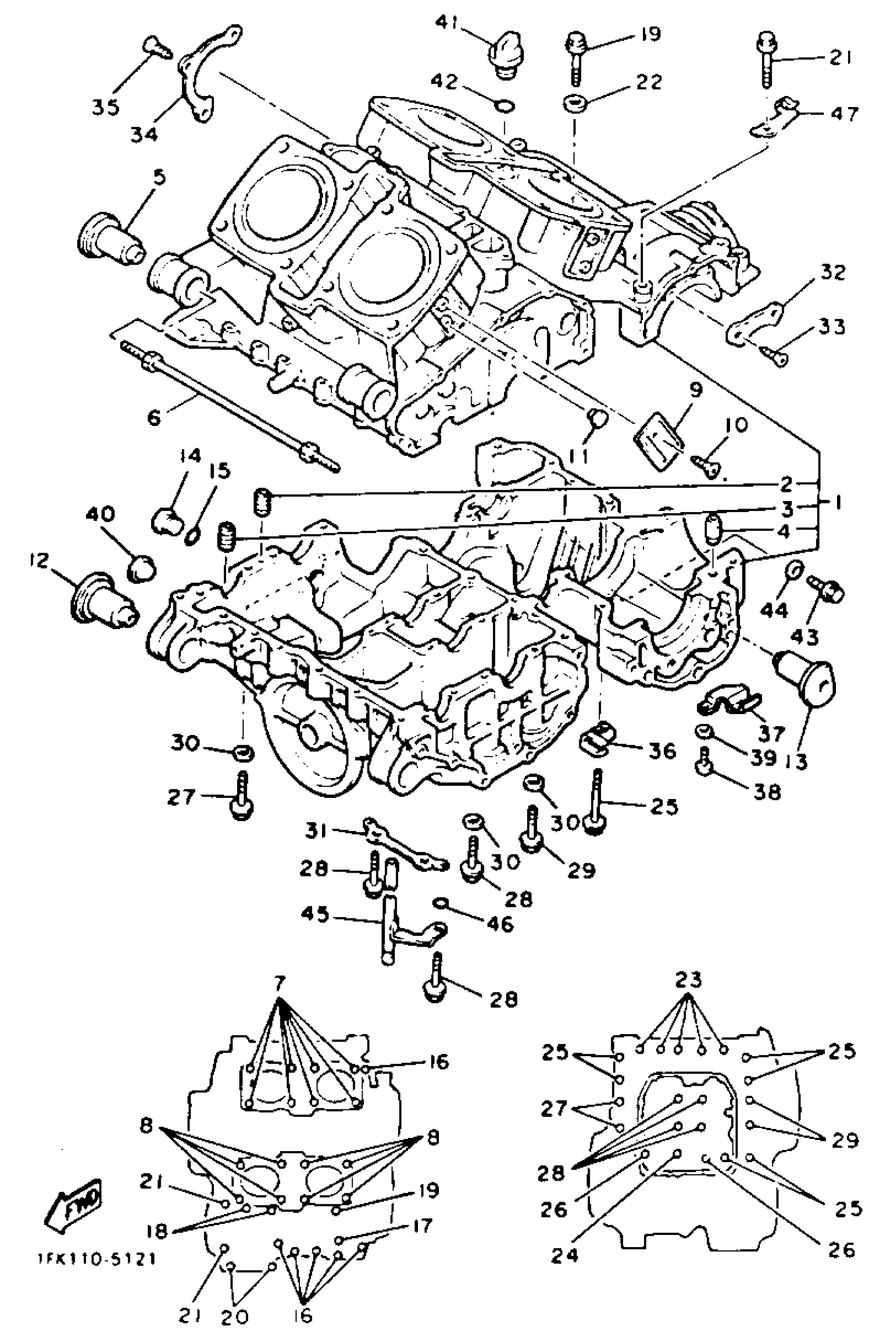

Yamaha VMX12BC (V-MAX 1200 CA) 3JP8 1991 CRANKCASE Diagram
#
1
CRANKCASE ASSEMBLY
1FK-15100-01-00
Unavailable
1
CRANKCASE ASSEMBLY
1FK-15100-01-00
Unavailable
6
BOLT
90109-106A1-00
Unavailable
9
COVER, CAP
2HY-15417-00-00
Unavailable
13
DAMPER, ENGINE MOUNT 2
1AA-15326-00-00
Unavailable
15
O-RING (25G)
93210-20573-00
Unavailable
16
BOLT, FLANGE
95817-06045-00
Unavailable
17
BOLT, FLANGE
95817-06070-00
Unavailable
18
BOLT, FLANGE
95817-06090-00
Unavailable
19
BOLT, FLANGE
95817-06095-00
Unavailable
20
BOLT, FLANGE
95814-08045-00
Unavailable
21
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
22
GASKET (4V2)
90430-06166-00
Unavailable
23
BOLT, FLANGE
95817-08050-00
Unavailable
24
BOLT, FLANGE
95814-08065-00
Unavailable
25
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
26
BOLT, FLANGE(8BT)
95817-08095-00
Unavailable
27
BOLT, WASHER BASED
90105-10247-00
Unavailable
28
BOLT, WASHER BASED (26H)
90105-10248-00
Unavailable
29
BOLT, WASHER BASED (26H)
90105-10249-00
Unavailable
30
WASHER PLATE 256111740000
90201-10131-00
Unavailable
31
PLATE
26H-15113-00-00
Unavailable
32
PLATE, BEARING COVER
26H-15381-00-00
Unavailable
33
SCREW
90149-08013-00
Unavailable
34
PLATE, BEARING COVER
26H-15383-00-00
Unavailable
35
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
36
CLAMP (26H)
90465-08233-00
Unavailable
37
CLAMP
90465-08287-00
Unavailable
38
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
39
WASHER, PLAIN (646)
92990-06600-00
Unavailable
40
GAUGE, LEVEL
2H7-15361-00-00
Unavailable
41
PLUG, OIL
2H9-15363-00-00
Unavailable
42
O-RING(1KT)
93210-27778-00
Unavailable
43
BOLT,FLANGE
95811-12016-00
Unavailable
44
WASHER, PLATE
90201-12790-00
Unavailable
45
PIPE, BREATHER
26H-15373-00-00
Unavailable
46
O-RING(26H)
93210-06667-00
Unavailable
47
HOLDER, CLUTCH CABLE
1FK-15441-00-00
Unavailable
