2002 Yamaha V-MAX CA (VMX1200PC) Valve Diagram

← All diagrams

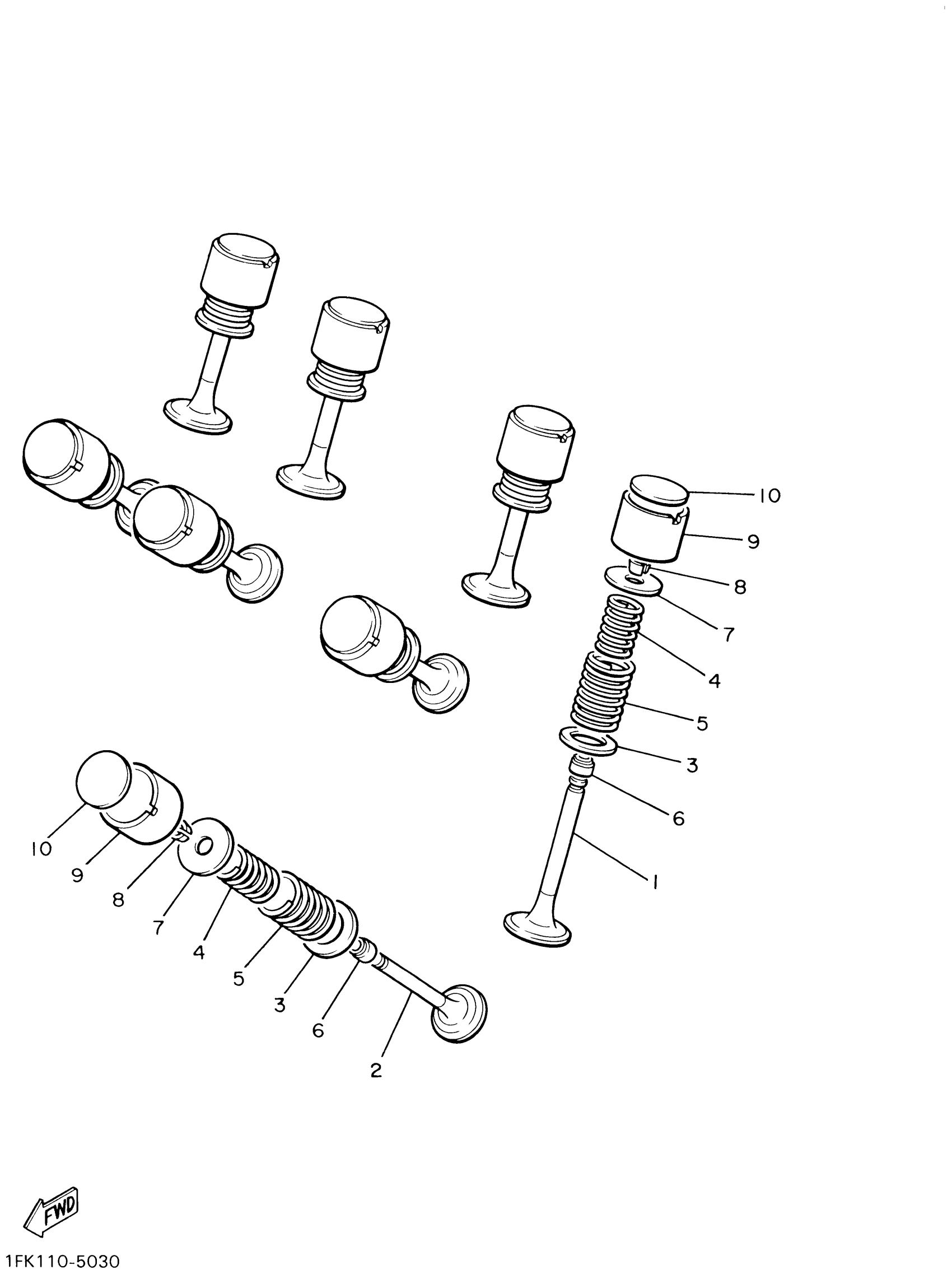

Find the part on the Valve diagram for your 2002 Yamaha V-MAX CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha V-MAX CA (VMX1200PC) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

1FK-12111-01-00

1
Out of stock

2

VALVE, EXHAUST

1FK-12121-01-00

1
Out of stock

3

SEAT, VALVE SPRING

26H-12116-00-00

1
Out of stock

4

SPRING, VALVE INNER

36Y-12113-00-00

1
Out of stock

5

SPRING, VALVE OUTER

36Y-12114-00-00

1
Out of stock

6

SEAL, VALVE STEM

51Y-12119-00-00

1

$4.08

In stock

7

RETAINER, VALVE SPRING

30X-12117-00-00

—
Out of stock

8

COTTER, VALVE

30X-12118-00-00

1
Out of stock

9

LIFTER, VALVE

26H-12153-09-00

—
Out of stock

9

LIFTER, VALVE

26H-12153-01-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-00-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-20-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-40-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-60-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-80-00

1
Out of stock

10

PAD, ADJUSTING

26H-12168-A0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-F0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-H0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-K0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-M0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-R0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-U0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-W0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12168-Y0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-10-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-30-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-50-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-70-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-90-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-E0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-G0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-J0-00

—
Out of stock

10

PAD, ADJUSTING (3.10)

26H-12169-L0-00

1
Out of stock

10

PAD, ADJUSTING

26H-12169-N0-00

—
Out of stock

10

PAD, ADJUSTING

26H-12169-T0-00

—
Out of stock
