2002 Yamaha V-MAX CA (VMX1200PC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2002 Yamaha V-MAX CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

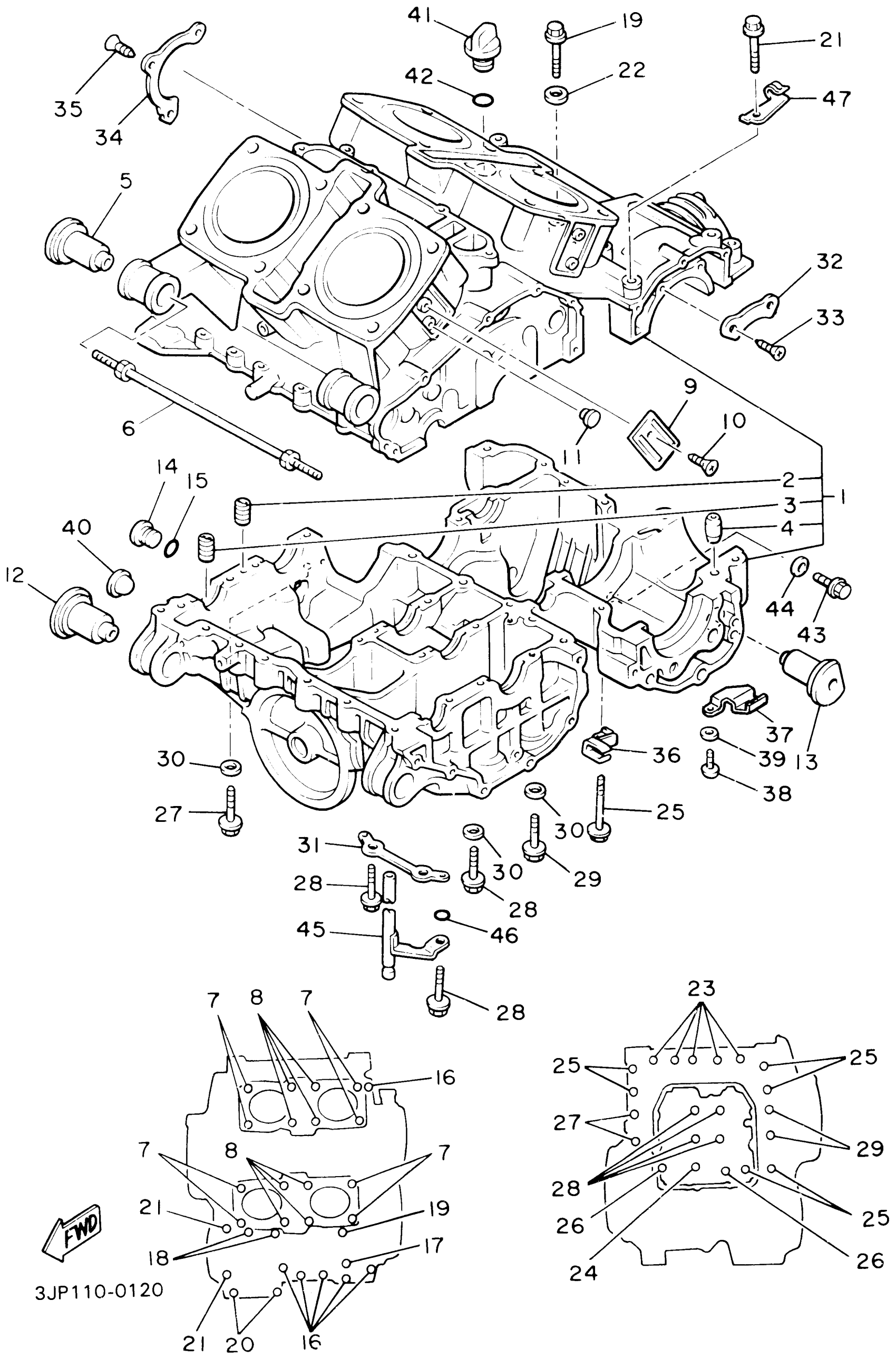

2002 Yamaha V-MAX CA (VMX1200PC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

1FK-15100-03-00

1
Out of stock

2

NOZZLE 1

26H-15138-00-00

1
Out of stock

3

NOZZLE

4KM-13572-01-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

1
Out of stock

6

BOLT

90109-106A1-00

1
Out of stock

7

BOLT, STUD (26H)

90116-10411-00

1
Out of stock

8

BOLT, STUD (26H)

90116-10411-00

1
Out of stock

9

COVER, CAP

1FK-15417-00-00

1
Out of stock

10

SCREW, COUNTERSUNK(3JP)

90151-06061-00

1
Out of stock

11

PLUG (26H)

90338-11152-00

1
Out of stock

12

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

1
Out of stock

13

DAMPER, ENGINE MOUNT 2

1AA-15326-00-00

1
Out of stock

14

PLUG

4H7-15189-00-00

1
Out of stock

15

O-RING (25G)

93210-20573-00

1
Out of stock

16

BOLT, FLANGE(4EB)

95814-06045-00

—

$2.49

In stock

17

BOLT, FLANGE(3JP)

95814-06070-00

—
Out of stock

18

BOLT, FLANGE(3JP)

95814-06090-00

—
Out of stock

19

BOLT, FLANGE

95817-06095-00

—
Out of stock

20

BOLT, FLANGE

95814-08045-00

—

$3.95

In stock

21

BOLT, FLANGE

95814-08080-00

1
Out of stock

22

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

23

BOLT, FLANGE

95817-08050-00

—

$3.15

In stock

24

BOLT, FLANGE

90105-08721-00-00

1
Out of stock

25

BOLT, FLANGE

95814-08080-00

1
Out of stock

26

BOLT, FLANGE(8BT)

95817-08095-00

—
Out of stock

27

BOLT(3JP)

90109-103G0-00

—
Out of stock

28

BOLT, WASHER BASED (26H)

90105-10248-00

—
Out of stock

29

BOLT, WASHER BASED (26H)

90105-10249-00

—
Out of stock

30

WASHER PLATE 256111740000

90201-10131-00

—

$6.97

In stock

31

PLATE

26H-15113-00-00

—
Out of stock

32

PLATE, BEARING COVER

26H-15381-00-00

—
Out of stock

33

SCREW

90149-08013-00

—

$6.25

In stock

34

PLATE, BEARING COVER

26H-15383-00-00

—
Out of stock

35

SCREW, FLAT HEAD(4EM)

98707-06016-00

—

$6.68

In stock

36

CLAMP (26H)

90465-08233-00

—
Out of stock

37

CLAMP

90465-08287-00

1
Out of stock

38

SCREW, PAN

98517-06012-00

—

$3.14

In stock

39

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

40

GAUGE, LEVEL

2H7-15361-00-00

—

$84.99

In stock

41

PLUG, OIL

2H9-15363-00-00

—
Out of stock

42

O-RING(1KT)

93210-27778-00

—

$6.89

In stock

43

BOLT, FLANGE(4GY)

95817-12016-00

—
Out of stock

44

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

45

PIPE, BREATHER

26H-15373-00-00

—
Out of stock

46

O-RING(26H)

93210-06667-00

—

$5.80

In stock

47

HOLDER, CLUTCH CABLE

1FK-15441-00-00

—
Out of stock
