2002 Yamaha V-Max CA (VMX1200PC) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2002 Yamaha V-Max CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

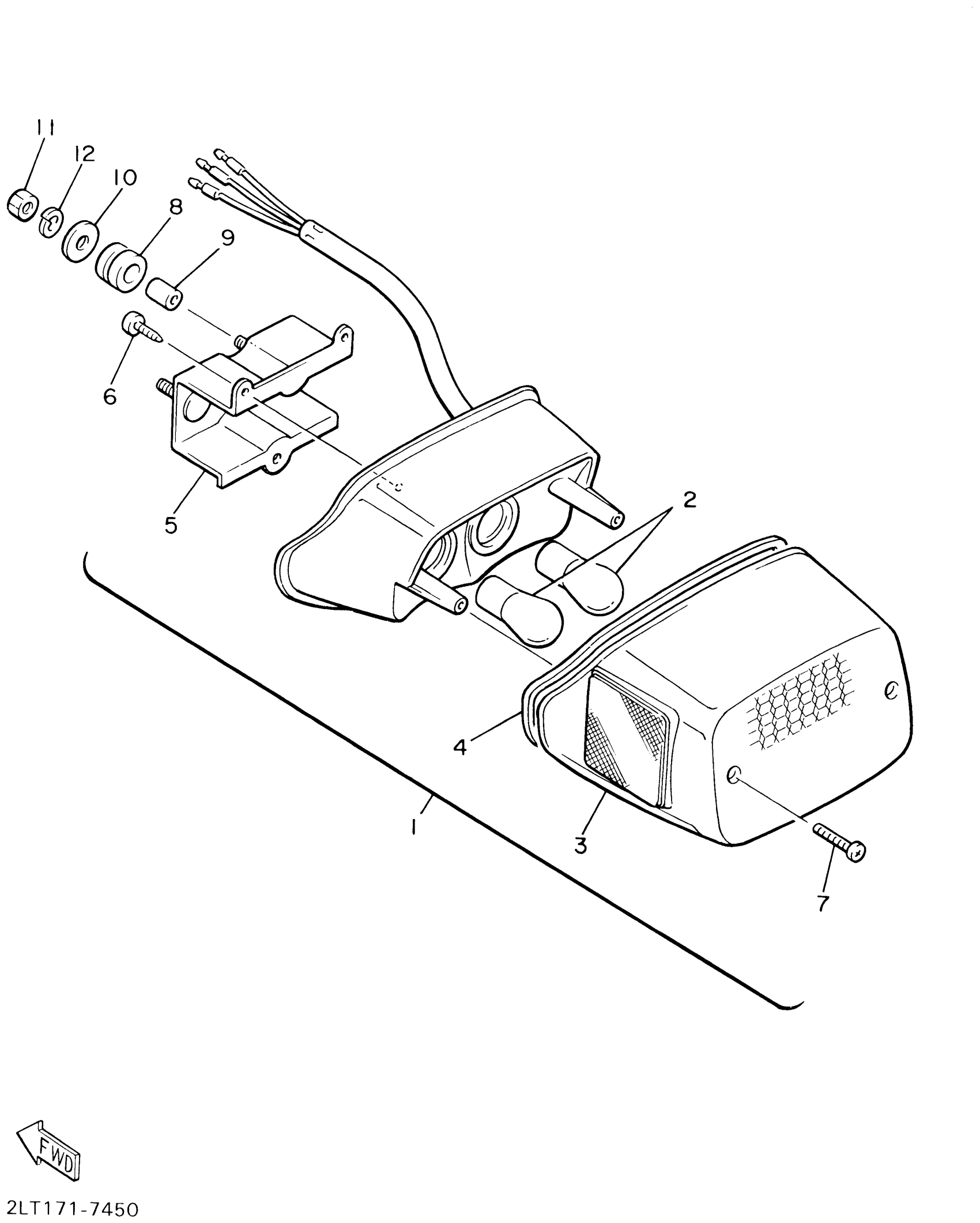

2002 Yamaha V-Max CA (VMX1200PC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

1FK-84700-60-00

1
Out of stock

2

1

$10.02

In stock

3

LENS, TAILLIGHT

42X-84721-61-00

1
Out of stock

4

SEAL

1VJ-14462-00-00

1

$16.08

In stock

5

BRACKET, TAILLIGHT

1FK-84702-00-00

—
Out of stock

6

SCREW, TAPPING(4HP)

97707-40616-00

1

$1.23

In stock

7

SCREW, PAN TAP.2 SLIT

97707-40625-00

1
Out of stock

8

GROMET (3X3)

90480-14229-00

1

$6.17

In stock

9

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

10

WASHER, PLATE

90201-06553-00

1
Out of stock

11

NUT(6TA)

95317-06600-00

1

$2.69

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock
