2002 Yamaha V-MAX CA (VMX1200PC) Generator Diagram

← All diagrams

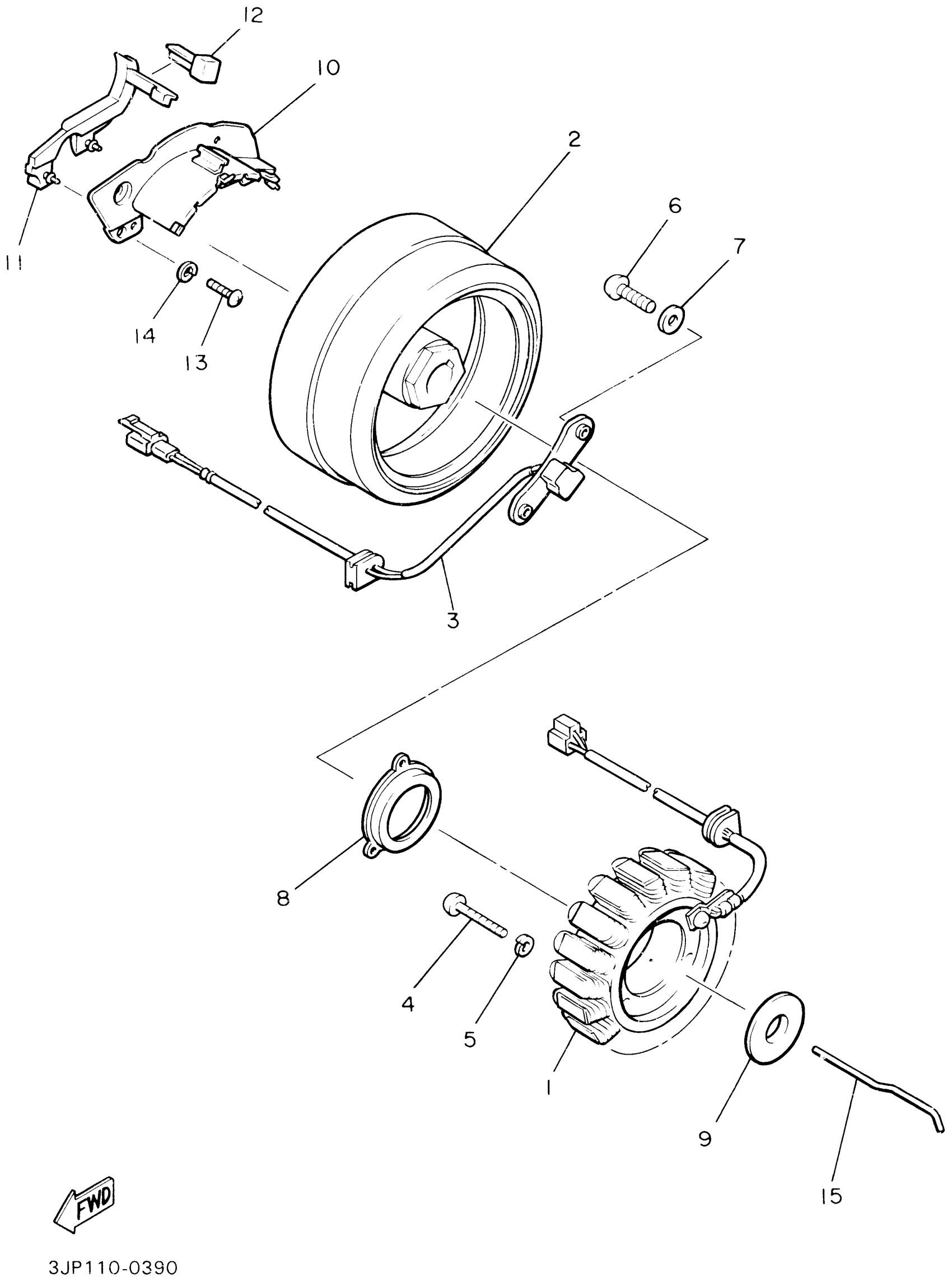

Find the part on the Generator diagram for your 2002 Yamaha V-MAX CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha V-MAX CA (VMX1200PC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

3UF-81410-10-00

—
Out of stock

2

ROTOR ASSY

3UF-81450-10-00

—
Out of stock

3

PICK-UP ASSY

3UF-81670-00-00

—
Out of stock

4

SCREW, PAN

98507-06040-00

1

$2.25

In stock

5

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

7

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

8

PLATE, STAT0R

59J-15113-00-00

1
Out of stock

9

PLATE, C0VER

59J-15191-00-00

1
Out of stock

10

SEPARATOR, OIL

1FK-15358-00-00

—
Out of stock

11

SEAL, CRANKCASE

1FK-15379-00-00

1
Out of stock

12

SEAL, PROTECTOR

1FK-15494-00-00

—
Out of stock

13

SCREW, PAN

98517-06012-00

1

$3.14

In stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

SHAFT 1

59J-11455-00-00

1
Out of stock
