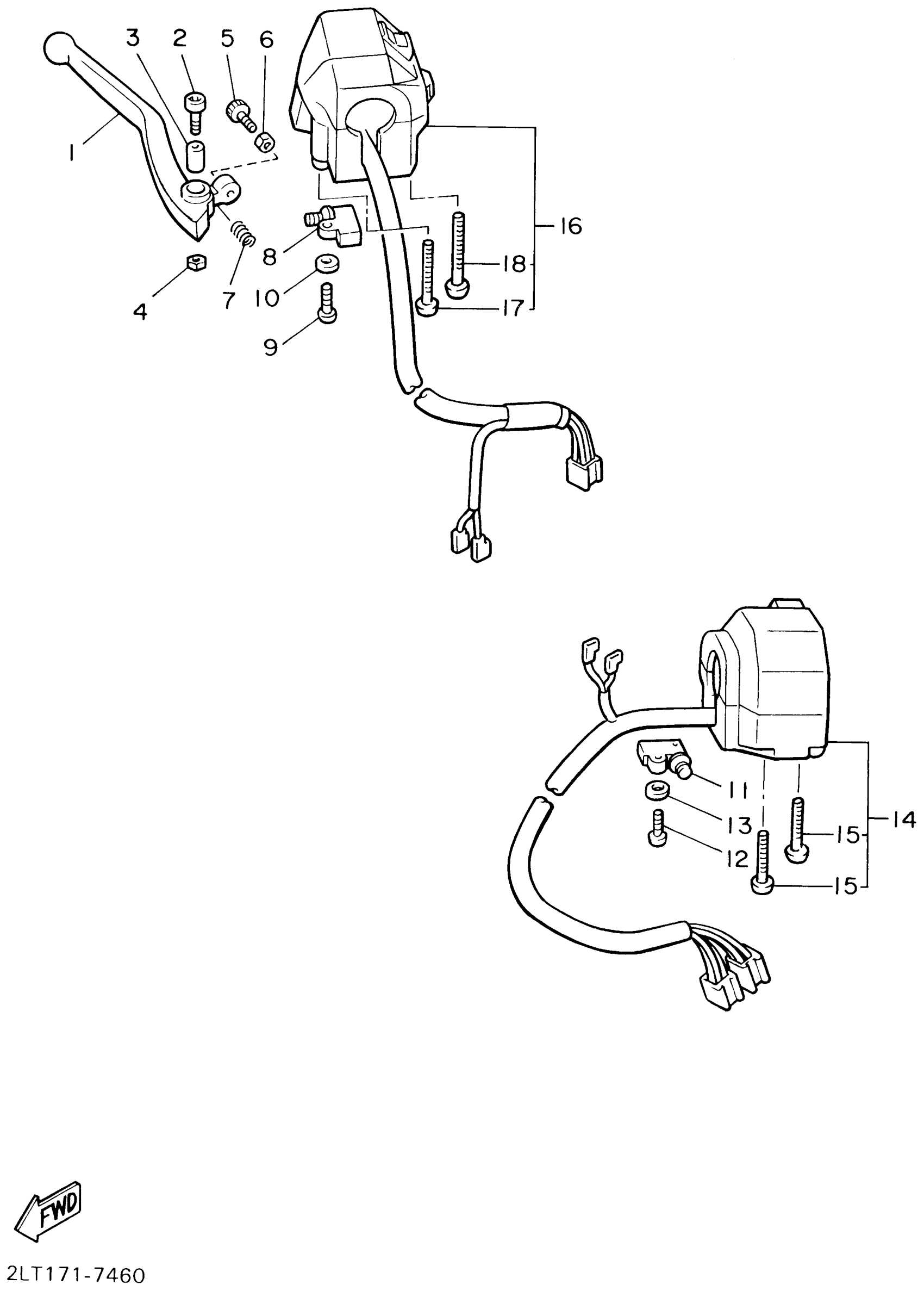

Yamaha VMX1200PC (V-MAX CA) 5GKA 2002 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 2

1FK-83922-00-00

$34.99

2

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

$8.49

3

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

SCREW (2L0)

90149-06131-00

$8.49

6

NUT

95670-06100-00

Unavailable

7

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

8

FRONT STOP SWITCH ASSY

J4582-50301-00

Unavailable

9

SCREW, PAN HEAD

98517-04016-00

$8.49

10

WASHER(JF2)

92907-04600-00

$1.71

11

SWITCH

36Y-82917-00-00

$45.99

12

SCREW, PAN HEAD

98517-04016-00

$8.49

13

WASHER(JF2)

92907-04600-00

$1.71

14

SWITCH, HANDLE 3

1UF-83973-10-00

$318.99

15

SCREW, PAN

98507-05035-00

$8.49

16

SWITCH, HANDLE 3

1FK-83973-11-00

Unavailable

17

SCREW, PAN

98507-05040-00

Unavailable

18

SCREW, PAN

98507-05045-00

Unavailable
