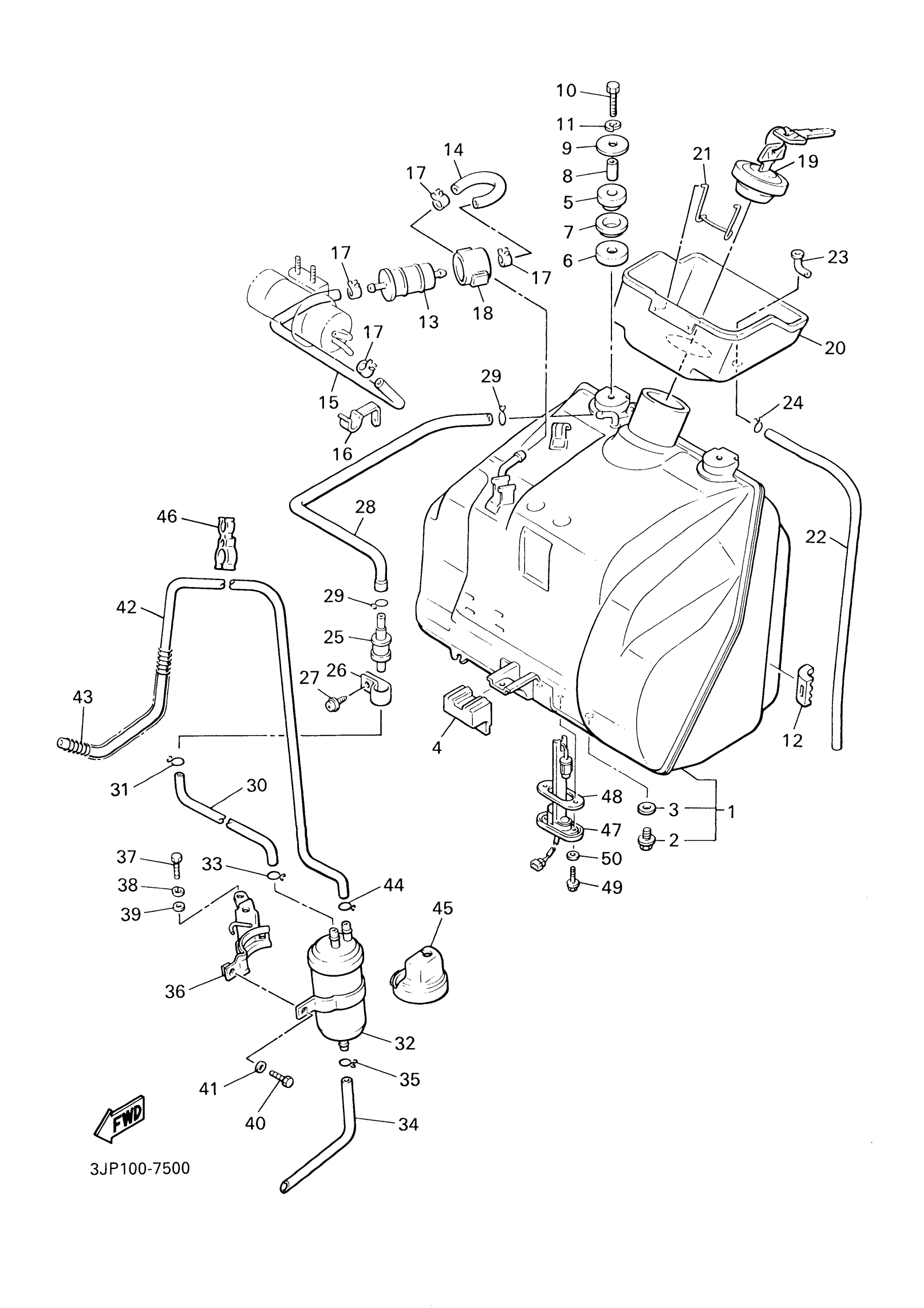

Yamaha VMX1200NC (V-MAX CA) 5GK6 2001 FUEL TANK Diagram
#
4
DAMPER, LOCATING 1
1FK-24181-00-00
Unavailable
5
DAMPER, LOCATING 2
1FK-24182-00-00
Unavailable
8
COLLAR
90387-06387-00
Unavailable
12
DAMPER, LOCATING 4
1FK-24184-00-00
Unavailable
14
PIPE 4
1FK-24314-00-00
Unavailable
15
PIPE 5
1FK-24315-00-00
Unavailable
16
CLAMP(6R3)
90464-13M34-00
Unavailable
17
CLIP(3GM)
90467-12124-00
Unavailable
18
BRACKET, FILTER
1FK-24566-00-00
Unavailable
19
CAP ASSY
54K-24602-10-00
Unavailable
20
COVER, FILLER
1FK-2414A-00-00
Unavailable
21
SPRING
1FK-24393-00-00
Unavailable
22
HOSE (L1500)
90445-084J0-00
Unavailable
23
PIPE, JOINT 1
1FK-24376-00-00
Unavailable
24
CLIP (16G)
90467-08021-00
Unavailable
25
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
26
CLAMP
90464-15014-00
Unavailable
27
SCREW, TAPPING(3JP)
97707-50612-00
Unavailable
28
PIPE, FUEL 1
1FK-24311-02-00
Unavailable
29
CLIP
90467-100A1-00
Unavailable
30
PIPE,6
1JH-24316-02-00
Unavailable
30
HOSE
90445-113K3-00
Unavailable
31
CLIP
90467-100A1-00
Unavailable
32
CANISTER ASSY
1JH-24170-00-00
Unavailable
33
CLIP
90467-100A1-00
Unavailable
34
PIPE, SUCTION 1
1JH-24335-00-00
Unavailable
35
CLIP(1JH)
90467-11106-00
Unavailable
36
HOLDER
1FK-2419A-00-00
Unavailable
36
CANISTER HOLDER ASSY
1JH-24190-00-00
Unavailable
37
BOLT, HEXAGON
97017-06016-00
Unavailable
39
WASHER(6TA)
92907-06200-00
Unavailable
40
BOLT(8CP)
97017-06014-00
Unavailable
42
HOSE
90445-11M71-00
Unavailable
43
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
44
CLIP
90467-100A1-00
Unavailable
45
COVER, CANISTER
1JH-2419E-00-00
Unavailable
46
CLAMP
90464-20070-00
Unavailable
47
SENDER UNIT ASSY, FUEL METER
1FK-85752-02-00
Unavailable
48
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
49
SCREW 256241430000
90149-06011-00
Unavailable
50
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
