Description

Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$29.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

7

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$10.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

10

HOSE, BRAKE 1

1FK-25872-03-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

JOINT

42H-25885-01-00

Unavailable

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

HOSE, BRAKE 2

3LR-25873-02-00

$92.99

16

HOSE, BRAKE

3LR-25874-02-00

Unavailable

17

BOLT, UNION

90401-10038-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

$11.49

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE 1

55R-25875-00-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

23

HOLDER, BRAKE HOSE 2

55R-25876-00-00

Unavailable

24

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

$11.49

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

REAR VIEW MIRROR ASSY (RIGHT)

1AA-26290-10-00

Unavailable

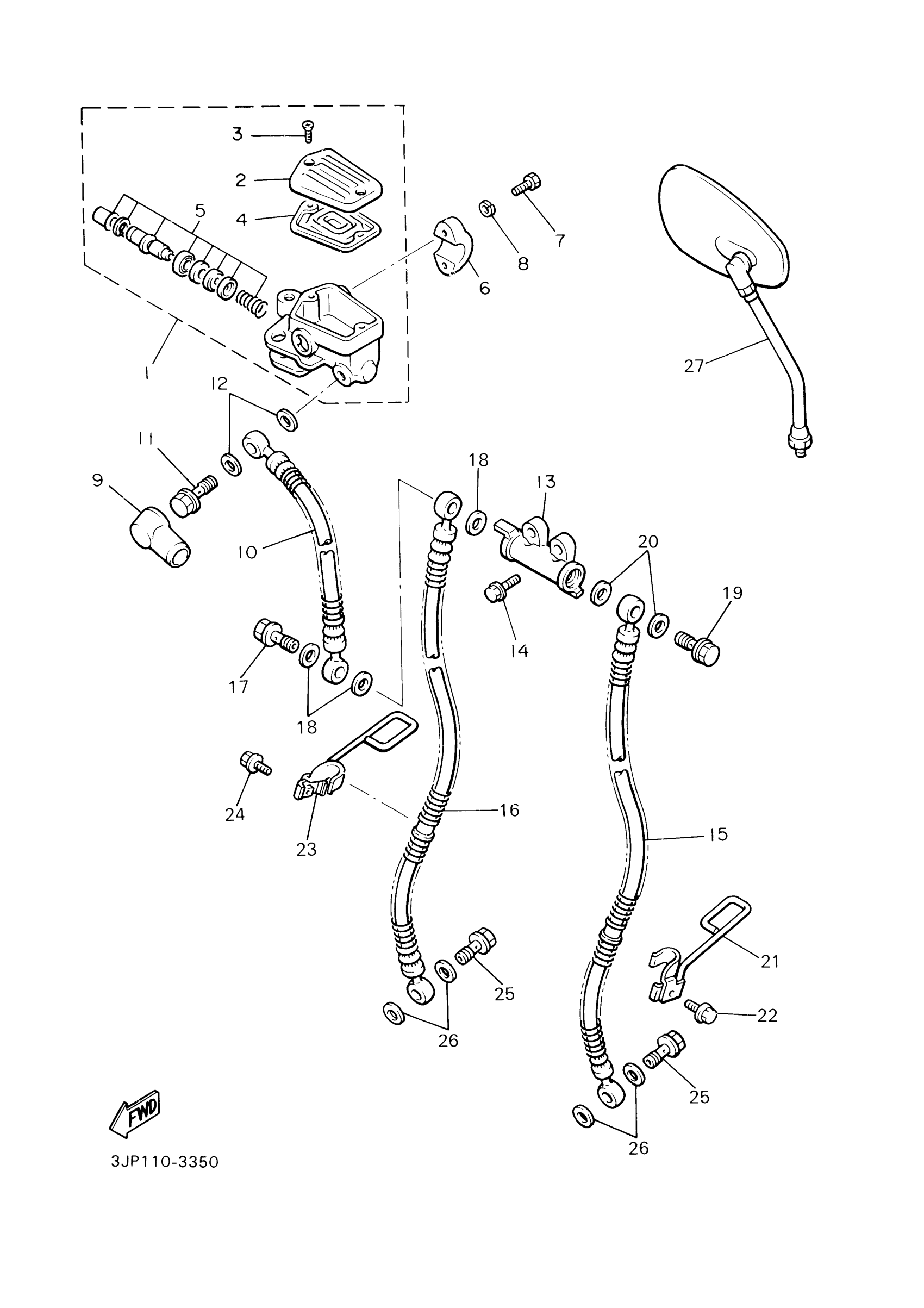

Yamaha VMX1200NC (V-MAX CA) 5GK6 2001 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

CAP, RESERVOIR

SCREW, FLAT

DIAPHRAGM, RESERVOIR

CYLINDER KIT, MASTER

BRACKET, MASTER CYLINDER

BOLT, HEXAGON SOCKET HEAD(3JP)

WASHER, SPRING

BOOT, MASTER CYLINDER

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

JOINT

BOLT,SOCKET

HOSE, BRAKE 2

HOSE, BRAKE

BOLT, UNION

WASHER, PLATE(481)

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

BOLT, FLANGE(2UJ)

HOLDER, BRAKE HOSE 2

BOLT, FLANGE(2UJ)

BOLT, UNION(3GM)

WASHER, PLATE(481)

REAR VIEW MIRROR ASSY (RIGHT)
