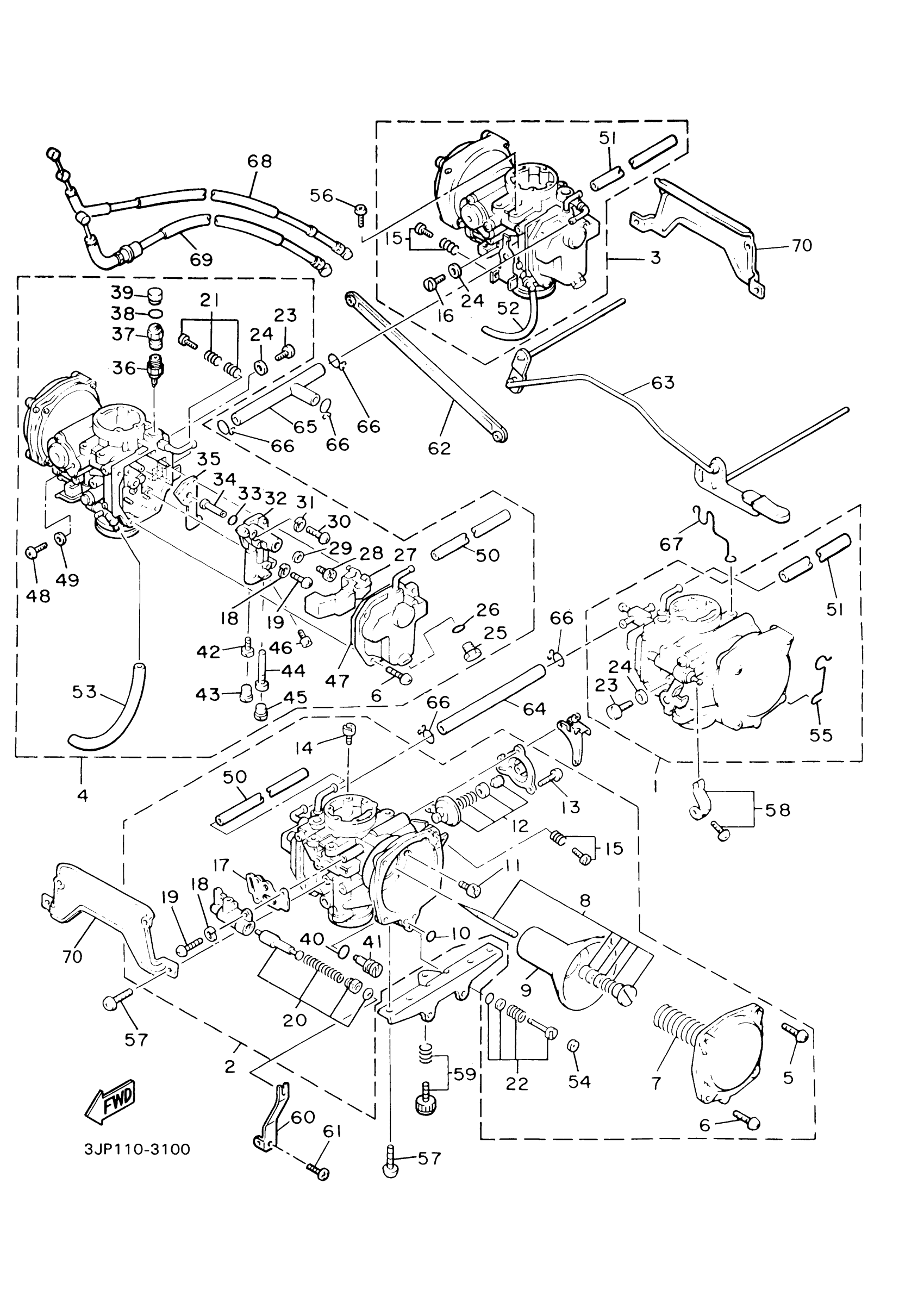

Yamaha VMX1200NC (V-MAX CA) 5GK6 2001 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
1FK-14901-02-00
Unavailable
1
CARBURETOR ASSY 1
2WF-14901-02-00
Unavailable
2
CARBURETOR ASSY 2
1FK-14902-02-00
Unavailable
3
CARBURETOR ASSY 3
1FK-14903-02-00
Unavailable
3
CARBURETOR ASSY 3
2WF-14903-02-00
Unavailable
4
CARBURETOR ASSY 4
1FK-14904-02-00
Unavailable
4
CARBURETOR ASSY 4
2WF-14904-02-00
Unavailable
5
SCREW, PAN HEAD(1FK)
90157-05050-00
Unavailable
8
. NEEDLE SET
2WF-1490J-00-00
Unavailable
11
JET, MAIN (#170)
3G2-14231-34-00
Unavailable
12
DIAPHRAGM SET, 5
26H-1490H-00-00
Unavailable
13
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
14
JET, MAIN (# 90)
3G2-14231-18-00
Unavailable
14
JET, MAIN (#100)
3G2-14231-20-00
Unavailable
15
STOP SCREW SET
48H-1490K-00-00
Unavailable
16
.. SCREW
2F1-14991-00-00
Unavailable
17
GASKET
3JB-14536-00-00
Unavailable
18
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
19
SCREW, PAN HEAD
98511-04012-00
Unavailable
20
STARTER SET
1GR-1410A-00-00
Unavailable
21
STOP SCREW SET
48H-1490K-00-00
Unavailable
22
PILOT SCREW SET
12R-14105-00-00
Unavailable
23
.. PLUG, SCREW
341-14991-00-00
Unavailable
24
.. WASHER
26H-14952-00-00
Unavailable
25
PLUG, SCREW
22U-14115-00-00
Unavailable
26
.. O-RING
22U-14561-00-00
Unavailable
27
FLOAT
1FK-14985-00-00
Unavailable
28
SCREW
22U-14565-00-00
Unavailable
29
WASHER,MAIN JET
137-14153-00-00
Unavailable
30
SCREW, PAN HEAD
98507-04018-00
Unavailable
31
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
32
BLOCK JET ASSY
26H-1411A-00-09
Unavailable
33
O-RING
22U-14147-00-00
Unavailable
34
NOZZLE, MAIN
26H-14941-90-00
Unavailable
35
GASKET
3JB-14199-00-00
Unavailable
36
NEEDLE VALVE ASSY
1FK-14190-15-00
Unavailable
37
NET, FILTER
1J7-14994-00-00
Unavailable
38
O-RING
1FK-14147-00-00
Unavailable
39
CAP
41R-14118-01-00
Unavailable
40
O-RING
214-14147-00-00
Unavailable
41
SCREW
2L1-14191-00-00
Unavailable
42
JET, PILOT (# 37.5)
4G0-14142-37-A0
Unavailable
43
CAP
22V-14968-00-00
Unavailable
44
PIPE, MAIN BREED
26H-1414G-00-00
Unavailable
45
CAP
22U-14968-00-00
Unavailable
46
JET,MAIN #152.5
3G2-1423A-81-00
Unavailable
47
O-RING
22V-14147-00-00
Unavailable
48
SCREW, PAN HEAD
98511-04012-00
Unavailable
49
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
50
PIPE (L400)
1GR-14197-01-00
Unavailable
51
. PIPE
1FK-14197-01-00
Unavailable
52
HOSE (L570)
90445-075G4-00
Unavailable
53
HOSE (L570)
90445-075G4-00
Unavailable
54
CAP
3F9-14118-00-00
Unavailable
55
CLIP, PIPE
1JH-14139-00-00
Unavailable
56
GASKET, EXHAUST
98507-05008-00
Unavailable
57
SCREW PAN HEAD
98580-06010-00
Unavailable
58
STARTER LEVER SET 2
22U-1490M-00-00
Unavailable
59
THROTTLE SCREW SET
26H-14103-00-00
Unavailable
60
LEVER, STARTER
1FK-14905-00-00
Unavailable
61
SCREW
11H-14991-09-00
Unavailable
62
ROD SET
26H-14504-00-00
Unavailable
63
STARTER LEVER SET, 1
1FK-1490L-00-00
Unavailable
64
HOSE
31H-14987-00-00
Unavailable
65
HOSE
26H-14987-00-00
Unavailable
66
CLIP
90467-100A1-00
Unavailable
67
CLIP, PIPE
26H-14139-00-00
Unavailable
68
CABLE, THROTTLE 4
1FK-2631J-00-00
Unavailable
69
CABLE, THROTTLE 3
1FK-26313-00-00
Unavailable
70
BRACKET 1
26H-14291-00-00
Unavailable
