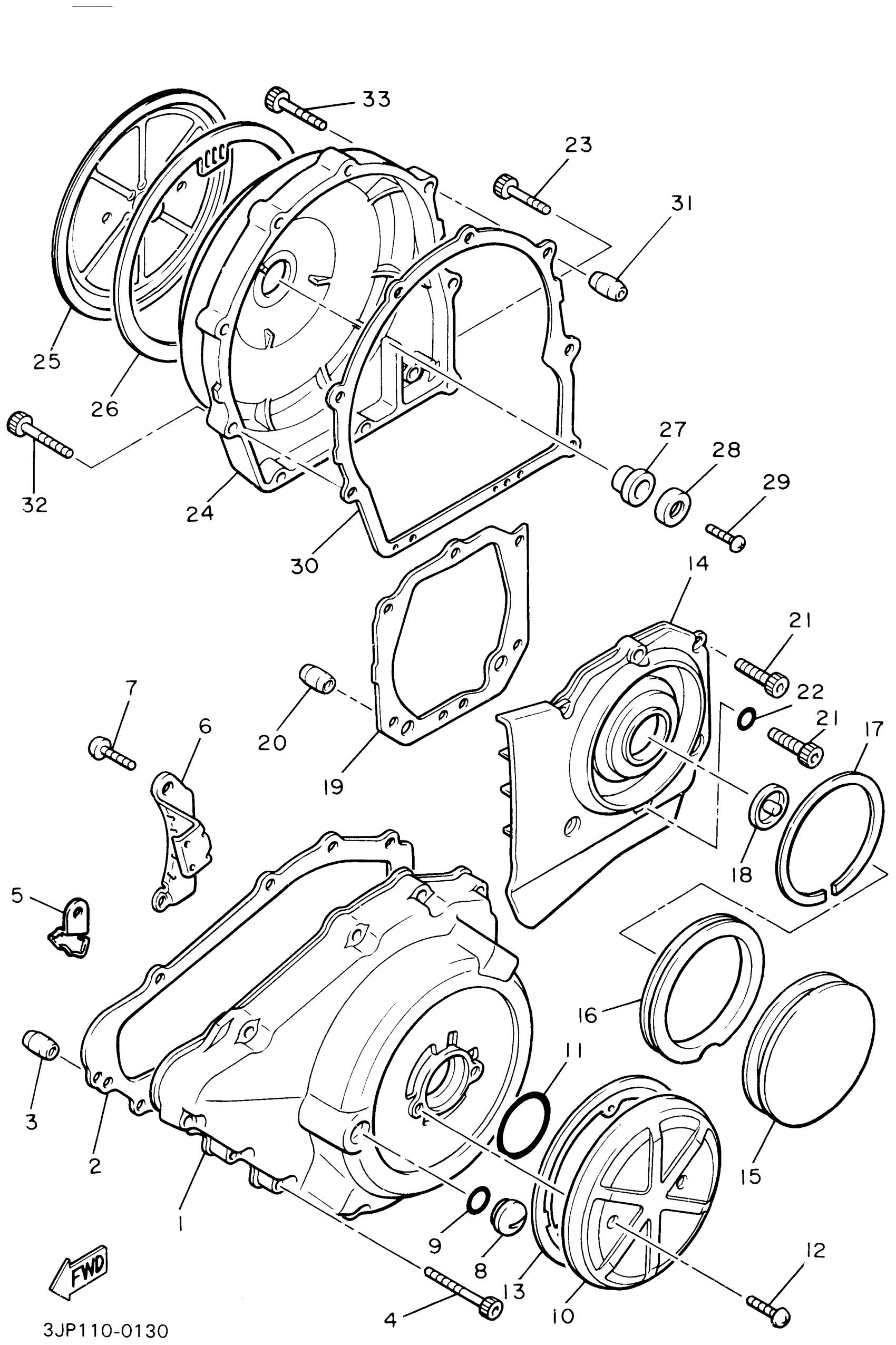

Yamaha VMX1200MC (V-MAX CA) 5GK3 2000 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1FK-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3JP-15451-01-00

$27.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06238-00

$1.28

5

CLAMP

90462-06192-00

Unavailable

6

CLAMP (26H)

90465-08220-00

Unavailable

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

8

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

COVER, CAP 2

3JP-15427-00-00

Unavailable

11

O-RING (256)

93210-45150-00

$9.49

12

SCREW, COUNTERSUNK(3JP)

90151-06061-00

$9.49

13

GASKET 1

1FK-15455-00-00

$60.99

14

COVER, CRANKCASE 2

1FK-15421-02-00

Unavailable

15

COVER, CHAIN CASE 2

1FK-15428-00-00

Unavailable

16

DAMPER 4

26H-15337-01-00

Unavailable

17

CLIP (26H)

90468-98132-00

Unavailable

18

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

Unavailable

19

GASKET, CRANKCASE COVER 2

3JP-15461-01-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

$2.55

21

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06242-00

Unavailable

24

COVER, CRANKCASE 3

1FK-15431-00-00

Unavailable

25

COVER, CRANK CASE

3JP-15418-00-00

Unavailable

26

RING, RUBBER

26H-15449-00-00

Unavailable

27

GROMMET

4H7-15486-00-00

Unavailable

28

WASHER (4H7)

90209-06096-00

Unavailable

29

SCREW, PAN

98517-06008-00

Unavailable

30

GASKET, CRANKCASE COVER 3

3JP-15462-01-00

Unavailable

31

PIN, DOWEL(3VD)

99530-10114-00

$2.55

32

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06237-00

Unavailable
