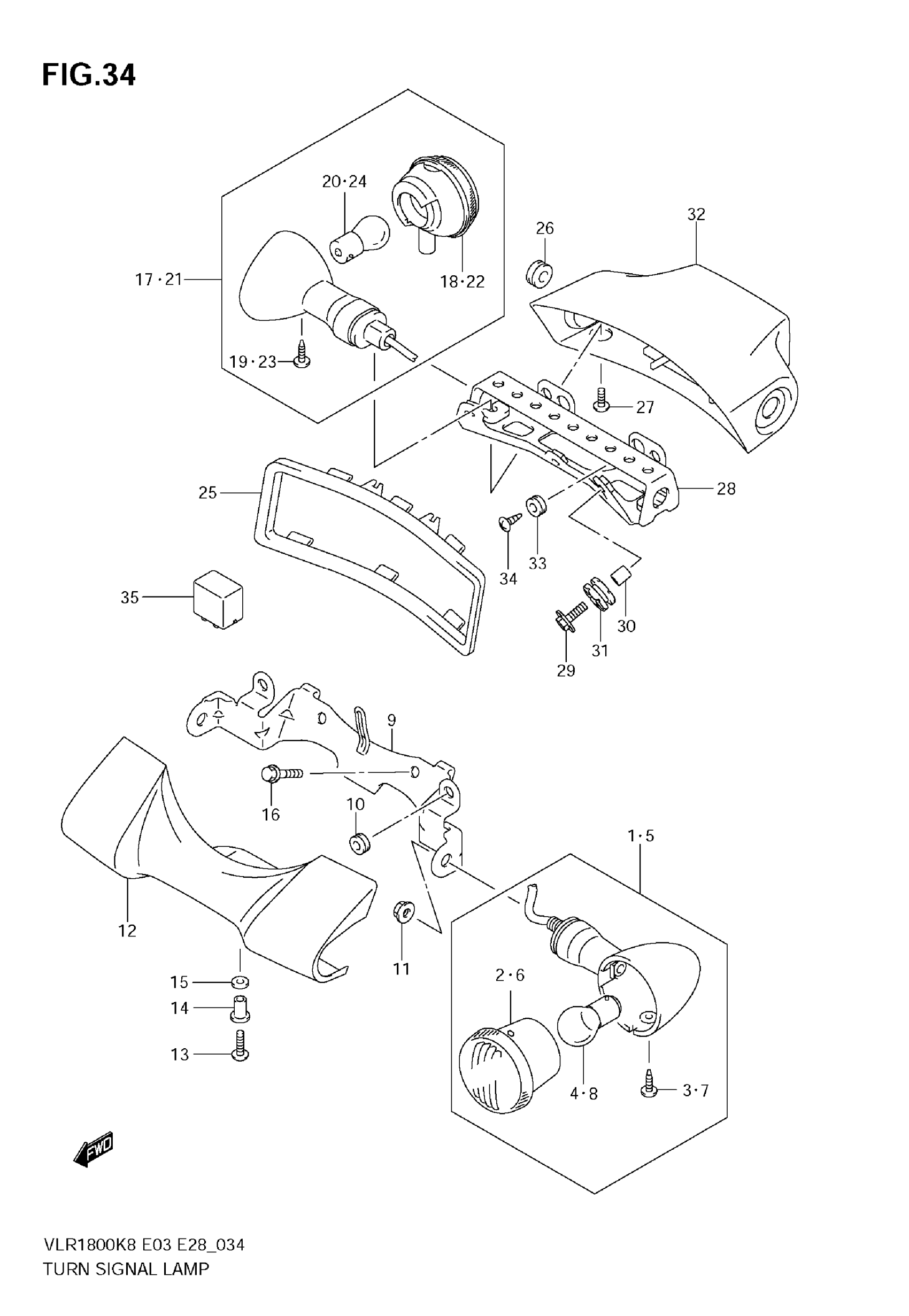

Suzuki VLR1800 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL, R | Includes Item(s) 2 - 4

35601-41FC0

$152.27

2

LENS, R

35610-38AA0

$28.79

3

SCREW (4X40)

35623-38AA0

$4.67

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

5

LAMP ASSY, FR TURNSIGNAL, L | Includes Item(s) 6 - 8

35602-41FC0

$151.52

6

LENS, L

35630-38AA0

$29.21

7

SCREW (4X40)

35623-38AA0

$4.67

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

9

BRACKET, FRONT

35616-41FD0

Unavailable

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

11

NUT

08310-0010B

$2.95

12

COVER, FR

35641-41F02

$101.80

13

SCREW, FR (5X16)

09139-05042

$2.70

14

NUT, FR

09159-05019

$6.44

15

WASHER

09160-05048

$1.76

16

BOLT, FR TURN

01550-0816B

$2.75

17

LAMP ASSY,TURNS | Includes Item(s) 18 - 20 This part replaces 35603-38AB2.

35603-38AB4

$83.29

18

LENS

35630-38AE1

$29.21

19

SCREW

35623-38AA0

$4.67

20

BULB (12V21W)

09471-12045

$2.95

21

LAMP ASSY,TURNS | Includes Item(s) 22 - 24 This part replaces 35604-38AB2.

35604-38AB4

$83.70

22

LENS

35610-38AE1

$28.79

23

SCREW

35623-38AA0

$4.67

24

BULB (12V21W)

09471-12045

$2.95

25

GASKET, RR TURNSIGNAL

35657-22H00

Unavailable

26

GROMMET, RR LEAD

09308-10005

Unavailable

27

BOLT, RR TURNSIGNAL (6X14) | E3,E33

09103-06507

$4.70

27

SCREW, RR TURNSIGNAL (6X12) | E28

09125-06092

$2.95

28

BRACKET, RR TURNSIGNAL

35620-22H00

Unavailable

29

BOLT (6X25)

09116-06131

$1.68

30

SPACER (6.5X10X12)

09180-06290

$2.01

31

CUSHION

09320-10051

$2.81

32

COVER, RR TURNSIGNAL

35621-22H00

Unavailable

33

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

34

SCREW, RR COVER

03541-0510A

$1.43

35

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
