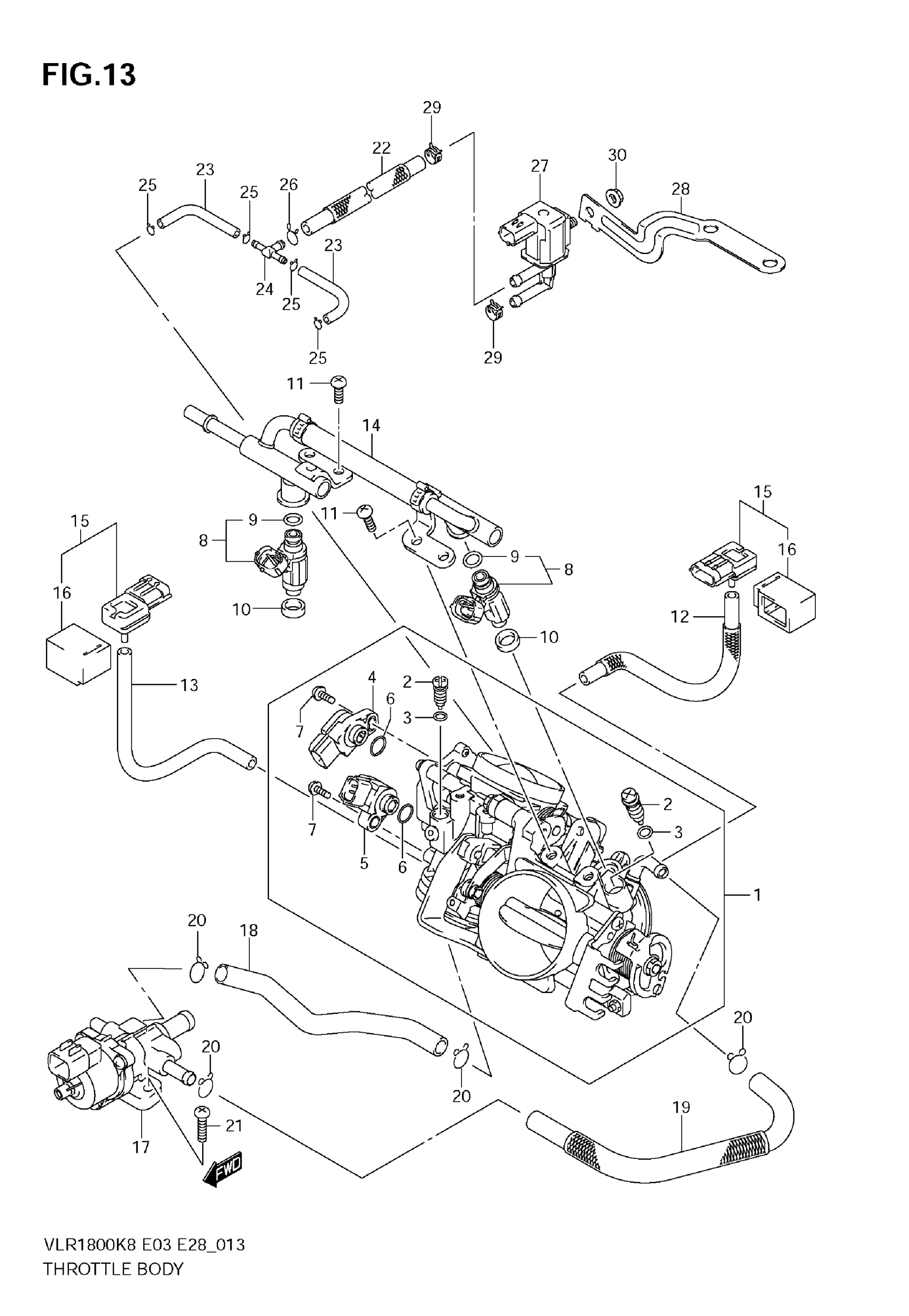

Suzuki VLR1800 (2009) THROTTLE BODY Diagram

#

Description
Price

1

BODY, THROTTLE | E3,E28

13405-22H00

Unavailable

1

BODY, THROTTLE | E33; Includes Item(s) 2 - 7

13405-22H10

Unavailable

2

ADJUSTER

13269-48G00

Unavailable

3

O RING

13521-29FA0

Unavailable

4

SENSOR ASSY

13580-48G10

$151.08

5

SENSOR ASSY

13580-48G00

$203.42

6

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

7

SCREW

13605-02F00

$3.71

8

INJECTOR ASSY | Includes Item(s) 9

15710-48G00

$269.36

9

O RING

15717-16G00

$11.70

10

SEAL

15722-29G00

$10.93

11

SCREW

13602-06148

$3.62

12

HOSE This part replaces 13683-22H00.

13683-22H01

Unavailable

13

HOSE This part replaces 13683-48G10.

13683-48G11

$41.20

14

PIPE ASSY, DELIVERY

15730-48G01

$306.43

15

SENSOR, PRESSURE | Includes Item(s) 16

15630-29G10

$273.45

16

COVER

15625-29G00

$12.40

17

VALVE, ISC

18117-22H00

Unavailable

18

HOSE, RH

13697-22H00

Unavailable

19

HOSE, LH

13698-22H00

Unavailable

20

CLIP

09401-13102

$3.15

21

SCREW

03111-0625A

Unavailable

22

HOSE | E33

13671-22H00

Unavailable

23

HOSE | E33

13683-22H10

Unavailable

24

NIPPLE | E33

13685-04F10

$11.07

25

CLIP | E33

09401-06101

$2.03

26

CLIP | E33

09401-10401

$1.49

27

VALVE,CANISTER PURGE | E33

18117-52G10

$151.17

28

BRACKET | E33

18119-22H00

Unavailable

29

CLIP (ID:10.5,H:8) | E33

09401-10409

$2.26

30

NUT | E33

08316-1006A

$2.19
