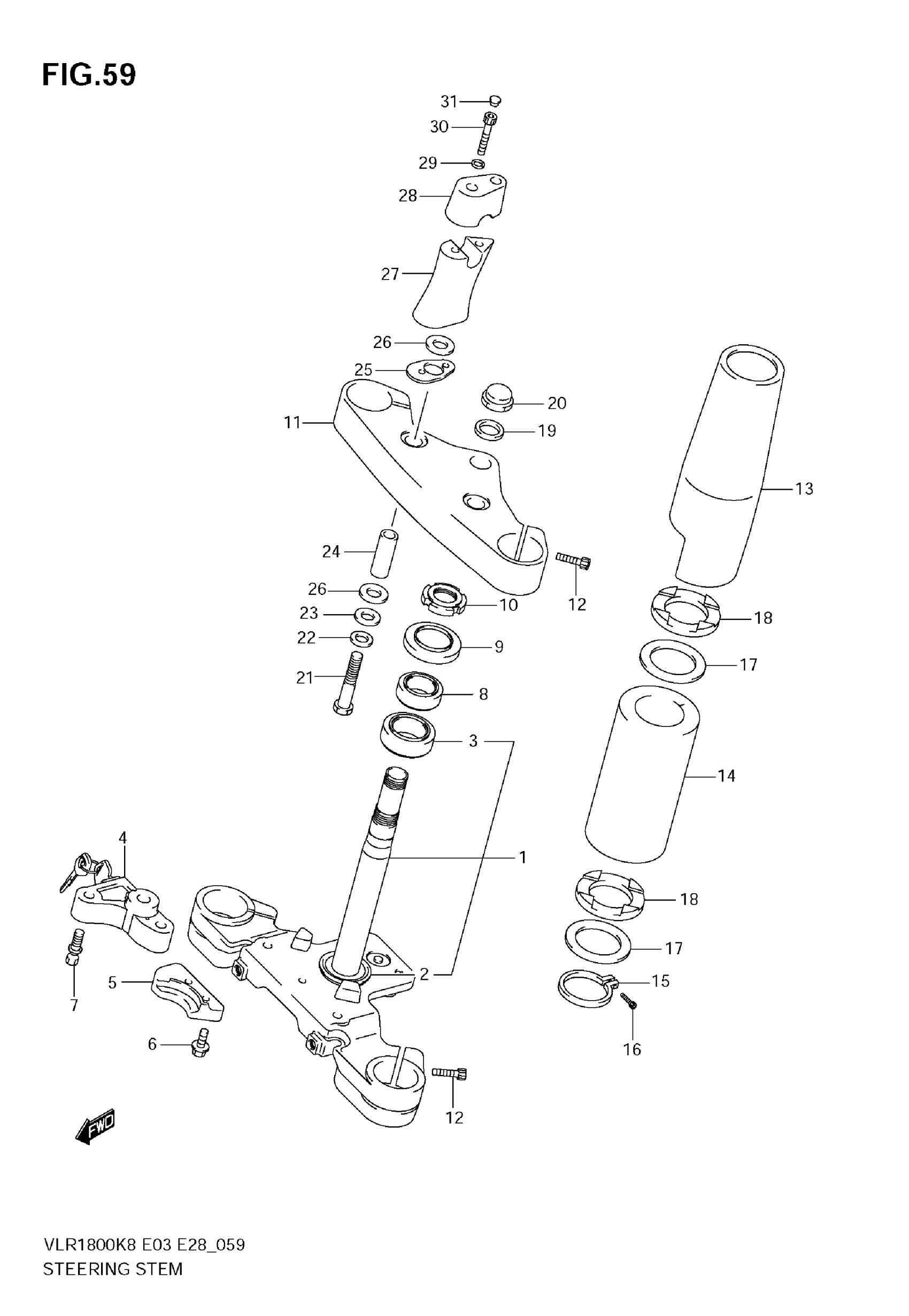

Suzuki VLR1800 (2009) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-22H00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING, STEERING LOWER

09265-30020

$44.41

4

LOCK SET, STEERING

51900-22820

Unavailable

5

BRACKET, STEERING LOCK

51921-22H00

Unavailable

6

BOLT, STEERING LOCK BRACKET

09103-08288

$4.00

7

SCREW, STEERING LOCK

51925-48G00

$8.05

8

BEARING, STEERING UPPER

09265-25038

$45.57

9

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

10

NUT, STEERING STEM

51631-31F00

$19.87

11

BRACKET, FRONT FORK, UPPER

51311-22H00

Unavailable

12

BOLT

51312-22H00

Unavailable

13

COVER, UPPER

51530-22H00

Unavailable

14

CASE, UNDER

51464-22H00

Unavailable

15

SPACER

51465-22H00

Unavailable

16

BOLT

51466-10F00

$7.53

17

WASHER

51467-22H00

Unavailable

18

RUBBER, SEAT

51468-22H00

Unavailable

19

WASHER, 22.5X32X1.6

51356-24B01

$5.38

20

NUT, CAP

51353-24B00

$30.67

21

BOLT

51226-22H00

Unavailable

22

WASHER

51354-41F20

$8.85

23

SEAT, RUBBER

56245-41F20

$8.12

24

DAMPER, RUBBER

56240-41F20

$40.87

25

RUBBER, HANDLE, LOWER

56245-22H00

Unavailable

26

WASHER

51355-22H00

Unavailable

27

HOLDER, HANDLE, LOWER

56221-22H00

Unavailable

29

WASHER

09164-08015

$3.21

28

HOLDER, HANDLE, UPPER

56211-22H00

Unavailable

30

BOLT

07130-08407

$3.14

31

CAP, HANDLE HOLDER BOLT

09250-06011

$2.50
