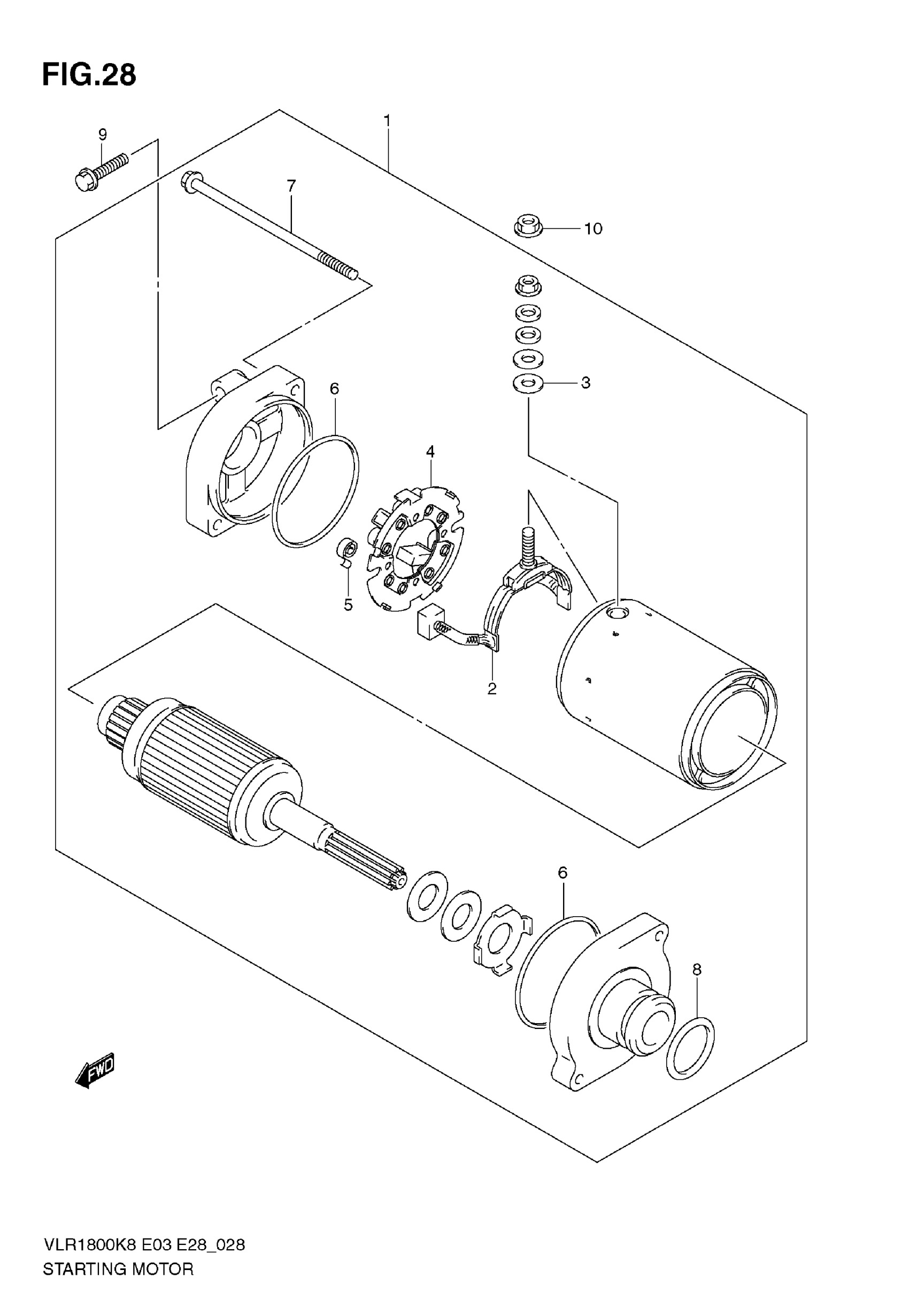

Suzuki VLR1800 (2009) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 8

31100-48G00

$950.68

2

TERMINAL SET, BRUSH

31130-38B00

$78.27

3

O RING

31143-49040

$3.50

4

HOLDER SET, BRUSH

31132-38B00

$78.27

5

SPRING, BRUSH

31135-38B00

$6.10

6

O RING This part replaces 31264-31300.

31264-32E00

$6.29

7

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

8

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

9

BOLT, STARTING MOTOR (6X25)

09103-06212

$2.53

10

NUT

08361-3506A

$1.81
