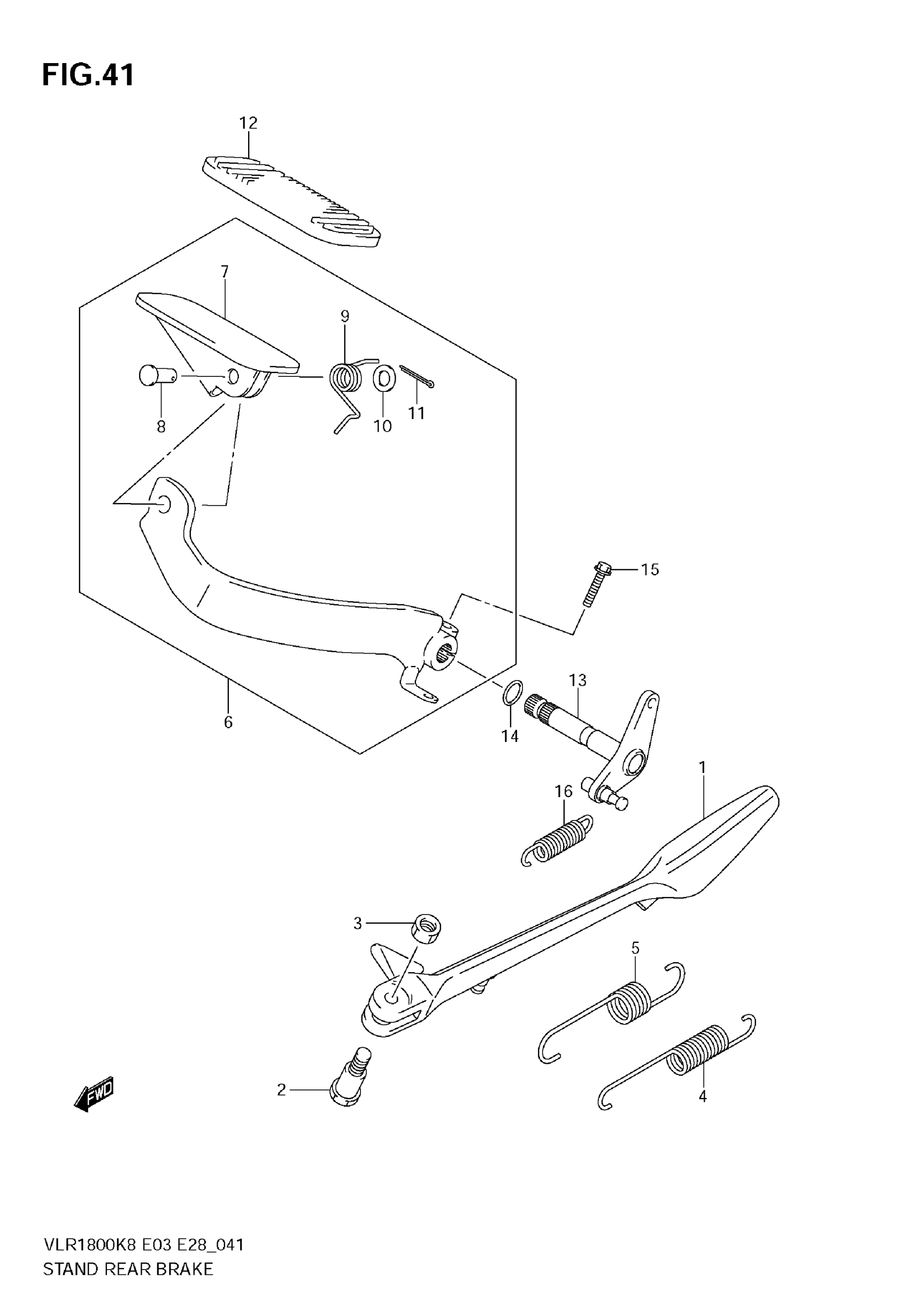

Suzuki VLR1800 (2009) STAND-REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-22H00

$215.83

2

BOLT

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING, INNER

09443-14069

$6.06

5

SPRING, OUTER

09443-19012

$5.89

6

PEDAL ASSY,BRAK | Includes Item(s) 7 - 11 This part replaces 43100-22H00.

43100-22H10

Unavailable

7

PEDAL, BRAKE

43110-22H00

Unavailable

8

PIN

43117-22H00

Unavailable

9

SPRING

43116-22H00

Unavailable

10

WASHER

08322-0108A

$1.92

11

COTTER PIN

04111-2015A

$1.49

12

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

$7.68

13

ARM, BRAKE ROD

43120-22H00

Unavailable

14

O RING

09280-14011

$4.77

15

BOLT

07120-0625A

$2.50

16

SPRING, RETURN

09443-11030

$3.70
