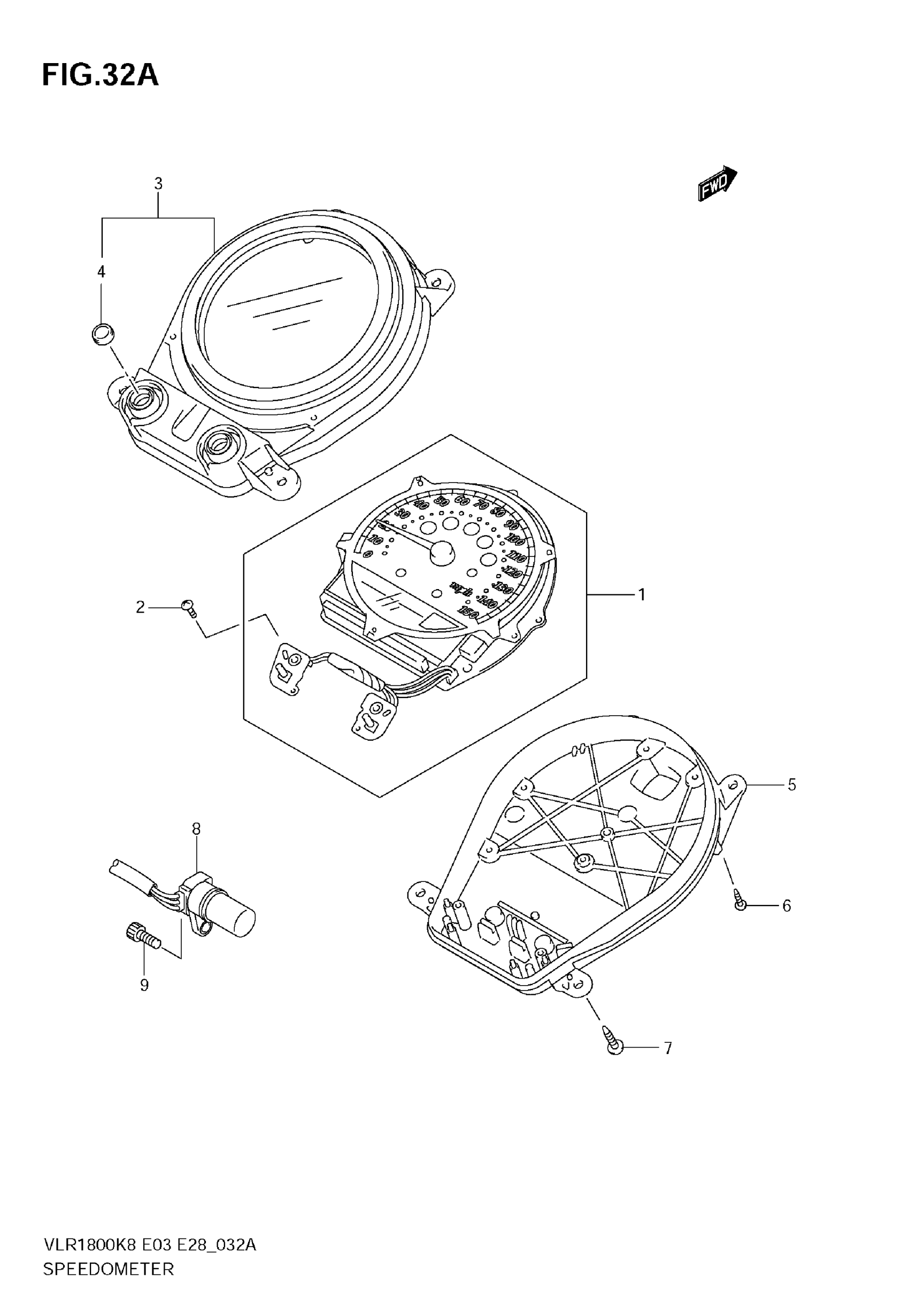

Find the part on the Speedometer diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER | E3,E33

34120-22H30

1
Out of stock

1

SPEEDOMETER | E28

34120-22H20

—
Out of stock

2

SCREW (3X12)

09132-03016

2
Out of stock

3

UPPER CASE ASSY | Includes Item(s) 4

34150-22H00

1
Out of stock

4

SWITCH RUBBER

34124-22H00

2
Out of stock

5

LOWER CASE ASSY

34111-22H00

1
Out of stock

6

SCREW (3X16)

09132-03008

8
Out of stock

7

SCREW, SPEEDOMETER

03541-0516A

4
Out of stock

8

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

1
Out of stock

9

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
