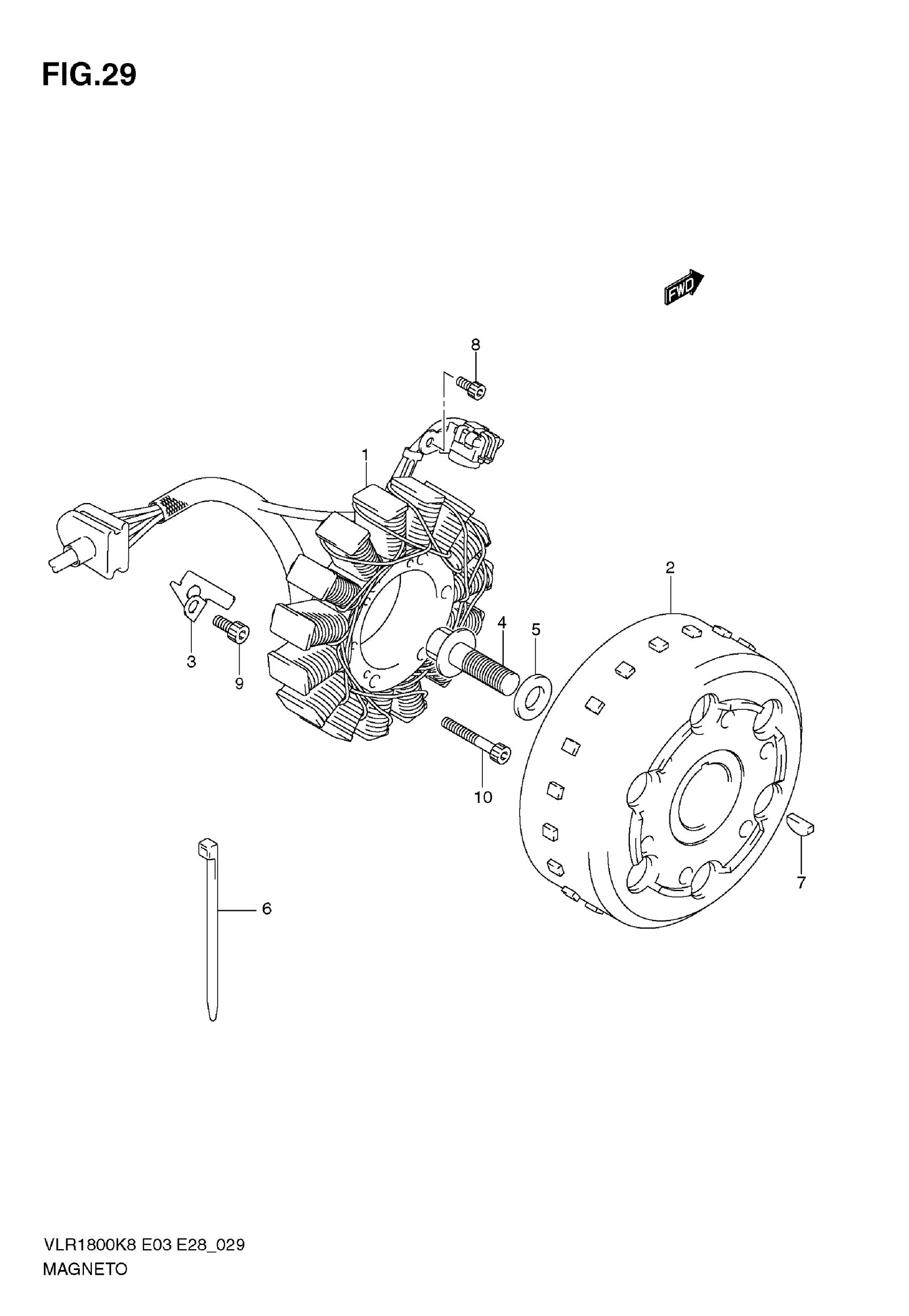

Suzuki VLR1800 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO

32101-48G10

Unavailable

2

ROTOR ASSY, MAGNETO

32102-48G10

Unavailable

3

CLAMP, MAGNETO LEAD

32371-33E00

$6.07

4

BOLT, MAGNETO ROTOR (14X43)

09103-14001

$12.85

5

WASHER, MAGNETO ROTOR | 14X29X14

09160-14021

$7.20

6

CLAMP (L:145)

09407-14407

$2.80

7

KEY, MAGNETO ROTOR

09420-05007

$5.00

8

BOLT, PICK UP & CLAMP

07130-0510A

$2.92

9

BOLT, MAGNETO LEAD CLAMP

07130-0612A

$2.50

10

BOLT, MAGNETO STATOR | 6X35

09106-06088

$4.52
